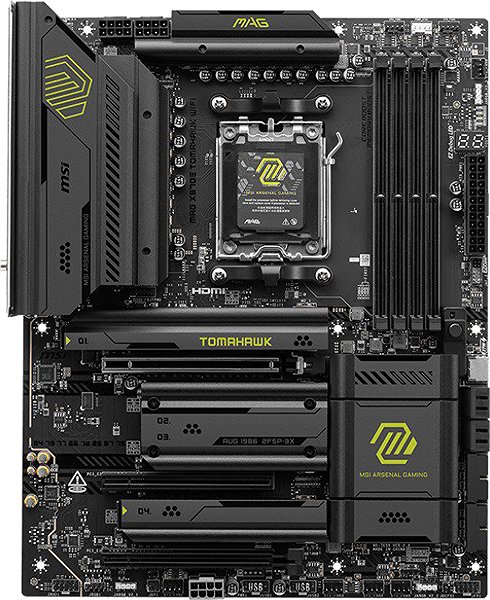

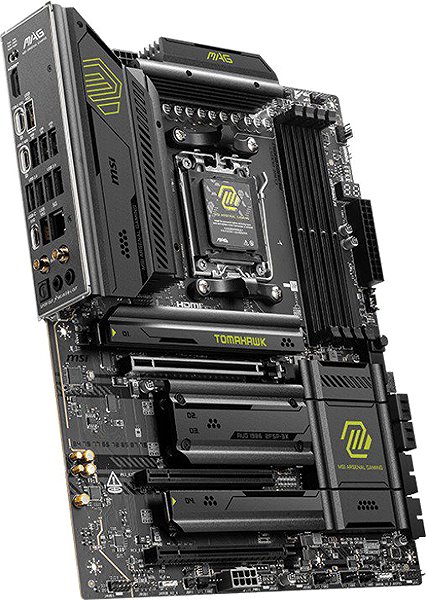

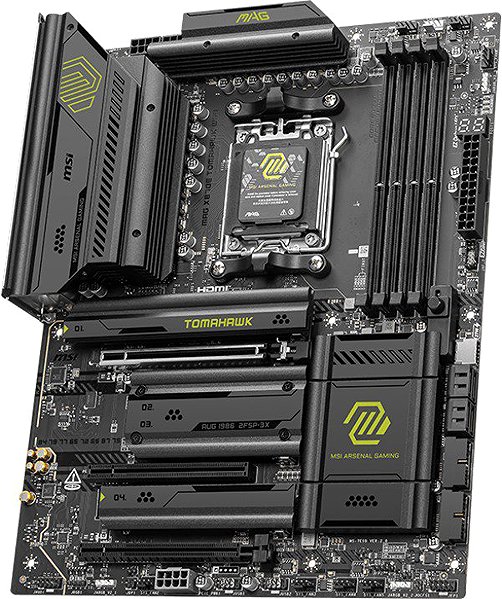

MSI MAG X870E TOMAHAWK WIFI

The MSI motherboard is built with the AMD X870E chipset and has the AMD AM5 socket for the CPU. As you would expect,, it is also equipped with a sound card for 8,0 channels. You can utilise its network connection module with the handy Wi-Fi connection options. It is a large motherboard for extra powerful systems with multiple hardware cards. If you want to use this model, you'll require a compatible ATX format computer case.

MSI MAG X870E TOMAHAWK WIFI Motherboard Key Features

AMD AM5 socket and AMD X870E chipset
MSI MAG X870E TOMAHAWK WIFI format: ATX
Integrated sound card for 8,0 channels
DDR5 computer RAM type with DIMM design
The motherboard can hold 4 × dual-channel memory modules

MSI MAG X870E TOMAHAWK WIFI Motherboard Connectivity

RAM is absolutely essential, so this MSI motherboard is equipped with 4 RAM slots. You can make use of DDR5 type DIMM operating memory. You can connect them in dual-channel mode. This motherboard is compatible with modules with a clock speed of up to 8400 MHz.

MSI MAG X870E TOMAHAWK WIFI Connectivity

The motherboard is designed for 3 graphics cards with PCI Express 16x slots. The internal interface also has a total of 4 popular M.2 connectors. In terms of USB adaptors, it's got 4 × USB 2.0, 3 × USB type 3.0 (3.1 gen1) and 3 × of the fast 3.1 (3.1 gen2) type ports.

The motherboard comes with a built-in Realtek ALC4080 sound card

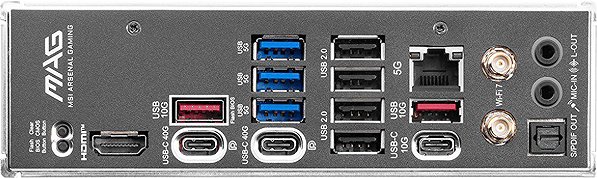

External interfaces: Jack, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, RJ-45 (LAN) 5Gbps, USB-C 3.2 Gen 2, USB 4 and HDMI 2.1
Supported internal interfaces: RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2x2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4 and Serial ATA III
Maximum supported RAM module clock speed: 8400 MHz
SATA III: 4 ×

Specifications

Socket and chipset

Socket AMD AM5

Chipset AMD X870E

Format & functions

Motherboard form factor ATX

Basic functions Bluetooth, Integrated network card, Integrated sound card, PCI Express 5.0, For CPU with integrated GPU, Wi-Fi

Memory

Memory type DDR5

Number of RAM slots 4 ×

Max. frequency (OC) 8,400 MHz

Design DIMM

Connection Mode dual-channel

Advanced parameters

Sound card type Realtek ALC4080

Number of sound card channels 8.0

Connectors

External Jack, S/PDIF, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, RJ-45 (LAN) 5Gbps, USB-C 3.2 Gen 2, USB 4, HDMI 2.1

Internal RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2x2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, Serial ATA III

PCI express x16 3×

USB 2.0 4×

USB 3.2 Gen 1 (USB 3.0) 3×

USB 3.1 (3.1 gen2) 3×

USB 4.0 2×

M.2 slots 4×

Serial ATA III 4×

Series

Series MSI MAG Tomahawk

Compatibility

Compatible processor generation 7th generation Ryzen, 8th generation Ryzen, 9th generation Ryzen

Colour

Colour Black
