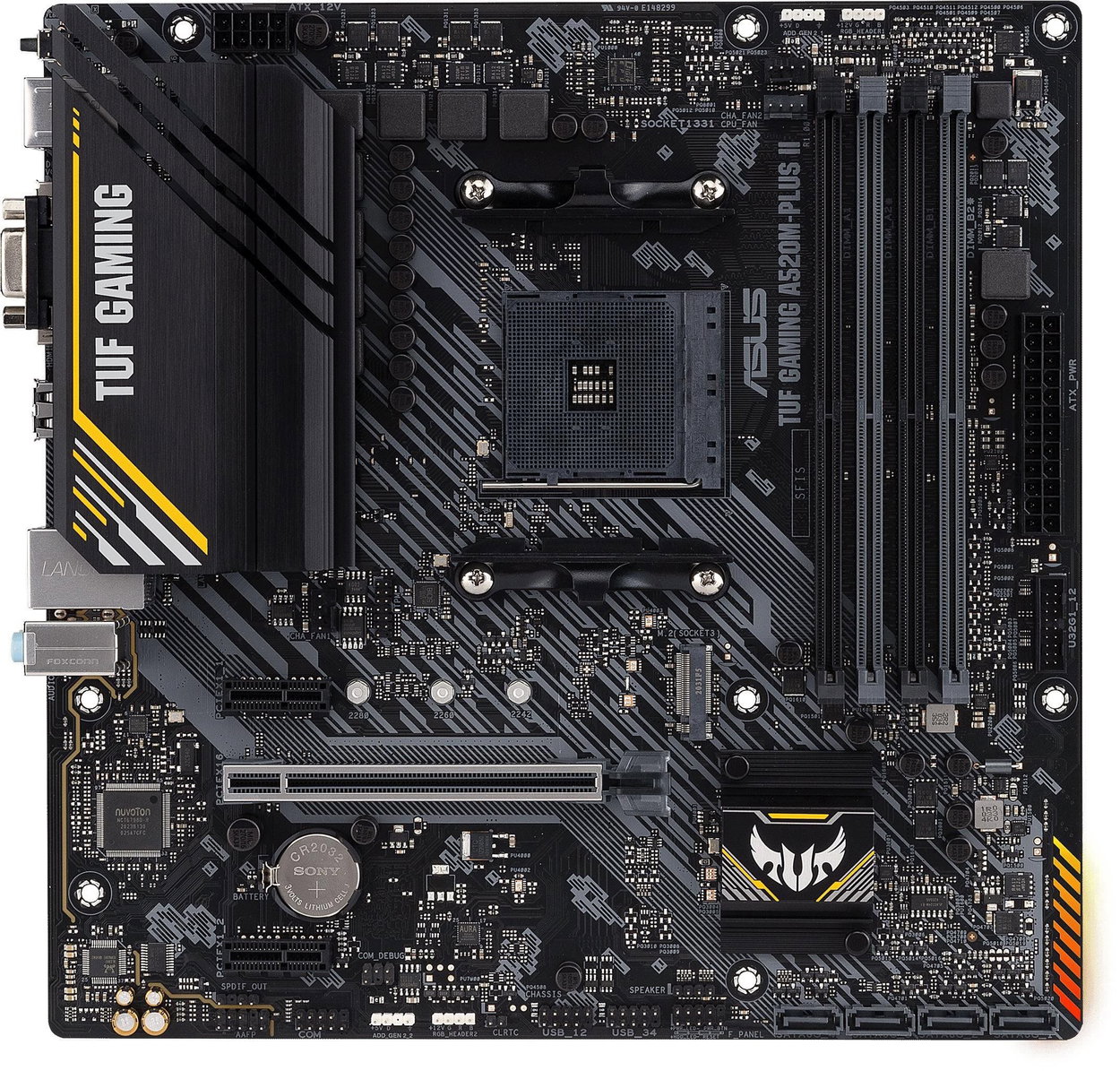

ASUS TUF GAMING A520M-PLUS II
The TUF GAMING A520M-PLUS II micro ATX motherboard with an AMD A520 chipset supports AMD Ryzen 5000, 4000G, and 3000 series desktop processors for the AMD AM4 socket. The board features one PCIe 3.0 x16 SafeSlot Core+ slot with stainless steel reinforcement and uses an upgraded power solution with Digi+ VRM technology for stable power delivery to the processor. It supports DDR4 memory in four DIMM slots with DRAM overvoltage protection. The board includes one M.2 slot supporting PCIe 3.0 x4 and SATA modes with data transfer speeds of up to 32Gb/s, and four SATA 6Gb/s ports. Its military-grade components, enhanced power solution, and comprehensive set of cooling options provide stable performance for multi-core processors.
AMD A520
Chipset
AMD AM4
Socket
mATX (Micro ATX)
Format
DDR4
Memory type
4×
Number of RAM slotsKey features of the ASUS TUF GAMING A520M-PLUS II motherboard
- AMD AM4 socket with support for Ryzen 5000/4000G/3000 series processors ensures wide compatibility
- Micro ATX format with AMD A520 chipset and advanced Digi+ VRM power delivery guarantees stable operation
- Comprehensive cooling with a large VRM heatsink, chipset heatsink, and Fan Xpert 2+ utility
- Connectivity includes USB 3.2 Gen 1, an M.2 slot with 32Gb/s speed, SATA 6Gb/s, and DisplayPort, HDMI, D-Sub outputs
- Aura Sync RGB with addressable Gen 2 headers and TUF LANGuard network protection with Turbo LAN technology
Expansion slots and storage
The PCIe 3.0 x16 SafeSlot Core+ slot features a one-piece stainless steel brace that protects the slot from damage and is securely attached with hooks and reinforced solder points for a secure foundation for heavy graphics cards. The M.2 slot supports drives up to size 2280 and enables data transfer speeds of up to 32Gb/s over the PCIe 3.0 x4 interface for faster application and OS loading. The board includes four SATA 6Gb/s ports for connecting additional storage devices and front USB 3.2 Gen 1 Type-A connectors for compatible PC cases.
Power and cooling
The board uses Stack Cool 3+ technology with almost 60-gram copper layers that draw heat away from critical components, keeping them at their optimal operating temperature. Certified military-grade TUF chokes deliver stable power to the processor, and proprietary capacitors provide up to 20% more temperature tolerance. A large, solid heatsink with an extensive surface area covers the VRM and choke area to improve heat dissipation. The board includes comprehensive fan control via the Fan Xpert 2+ utility or ASUS UEFI BIOS, with each 4-pin PWM/DC fan header configurable to monitor and react to three user-configurable thermal sensors with auto-detection and intelligent protection against overheating and overcurrent.
Protection and network connection
ESD Guards protect against electrostatic discharge damage with protection against +/- 10kV air discharge and +/- 6kV contact discharge. TUF LANGuard integrates advanced signal-coupling technology and capacitors that increase throughput and protect the motherboard from lightning strikes or static electricity. Integrated DRAM overvoltage protection with resettable fuses prevents damage from overcurrent and short circuits. The stainless steel back I/O panel is corrosion-resistant with chromium oxide. Connectivity includes Realtek 1Gbps LAN with TurboLAN technology for optimising network traffic and changing packet priorities via an intuitive interface.
Personalisation
BIOS FlashBack lets you update the BIOS from a FAT32 format USB flash drive with the simple press of a button, without needing a CPU or memory installed. The board includes two connectors for customisable Gen 2 AURA RGB lighting and two AURA RGB headers to create a unified system of lighting effects. Addressable Gen 2 RGB headers detect the number of LEDs on devices and automatically tailor the lighting effects to the specific device, with backwards compatibility for any device featuring Aura RGB lighting. Armoury Crate software provides centralised control of all supported gaming products, with options to set RGB lighting and synchronise it via Aura Sync software in a single intuitive interface.
Port configuration
Storage
- SATA III ports: 4
- M.2 ports: 1
- M.2 Slot - 1× M.2 PCI-E NVMe Gen3
- Features: RAID 0, RAID 1, RAID 10
USB ports
- Internal USB 2.0: 4 (2 headers)
- Internal USB 3.2 Gen 1: 2 (1 header)
- Rear USB 2.0: 2
- Rear USB 3.2 Gen 1: 4
Graphics
- HDMI 2.1
- DisplayPort 1.2
- D-Sub
- Graphics outputs: 1× HDMI, 1× DisplayPort, 1× D-Sub
Sound
- Number of channels: 7.1
- Rear connectors: 3× 3.5mm jack
- Internal connectors: 1× Front Panel Audio (AAFP), 1× S/PDIF Out, 1× Speaker
Other
- Rear: 1× BIOS FlashBack button, 1× PS/2
- Power: 1× 24pin Main Power, 1× 8pin +12V Power
- Cooling: 1× 4pin CPU Fan, 2× 4pin Chassis Fan
- Internal: 2× AURA Addressable Gen 2 header, 2× AURA RGB header, 1× Clear CMOS header, 1× COM Port header, 1× SPI TPM header (14-1pin), 1× System Panel header (10-1 pin)
Choosing a motherboard
When choosing a motherboard (also known as a mainboard), it's important to pay particular attention to the motherboard's socket type, format, and chipset. These parameters are among the most crucial and ensure the board's compatibility with the processor, expansion cards, and other components. The specific socket will determine your choice of a suitable processor, while the remaining connectors will dictate the other components needed for your future computer.Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Series
Compatibility
Colour
| Code: | ACa520tmp2 |
| Warranty: | 36 months |
