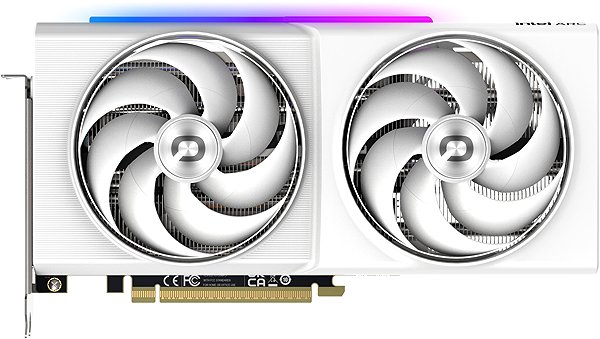

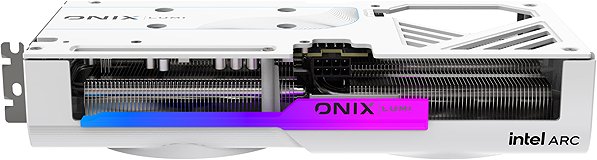

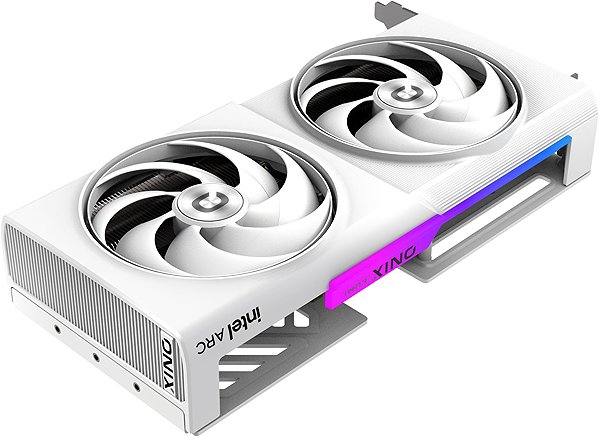

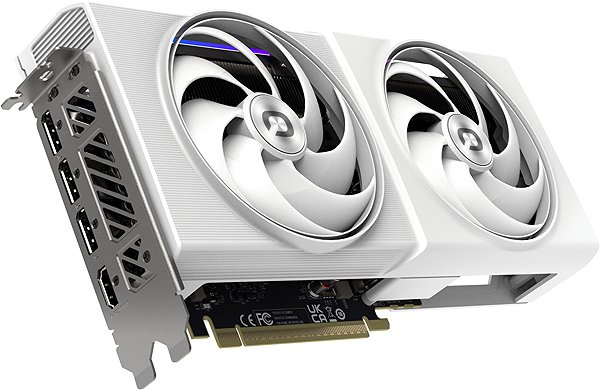

ONIX LUMI Intel Arc B580 GDDR6 OC 12GB

The ONIX LUMI Intel Arc B580 GDDR6 OC 12GB graphics card with 12 GB of RAM is exactly what you need, with a clock speed of 19000 MHz. With this amount of RAM, the 192Bit bus, and a core speed of 2670 MHz This graphics card is designed with the PCI Express x16 4,0 interface, and it's got 4 ports for the connection of a monitor. In the case of this graphics card, the manufacturer chose the DisplayPort 2,1 and HDMI 2,1 interface for the connection of a monitor. Active cooling on this graphics card ensures very low temperatures, even under load.

Graphics Card ONIX LUMI Intel Arc B580 GDDR6 OC 12GB ...
Graphics Card ONIX LUMI Intel Arc B580 GDDR6 OC 12GB ...

ONIX LUMI Intel Arc B580 GDDR6 OC 12GB Gaming Graphics Card Key Features

  • Graphics card features B580 graphics chip with 5 nm production technology
  • ONIX LUMI Intel Arc B580 GDDR6 OC 12GB graphics card allows you to connect 4 screens
  • Thermal design power: 203 W
  • Recommended PSU performance of at least: 600 W
  • Intel ARC B580 graphics card RAM: 12 GB
  • Graphics card cooling technology: Active
  • Graphics card monitor port type: DisplayPort 2,1 and HDMI 2,1

Active cooling technology, such as that, which is found in this graphics card, is widely used mainly because it's a safe and proven way to keep the temperature low. The Three slots cooling system on this graphics card features 2 fans and modulates its performance depending on the current load.

Graphics Card ONIX LUMI Intel Arc B580 GDDR6 OC 12GB ...
Graphics Card ONIX LUMI Intel Arc B580 GDDR6 OC 12GB ...

Graphics Card Has 12 GB GDDR6 System Memory

The ONIX GDDR6 type RAM, which is on this graphics card, is the modern successor to the popular GDDR5 memory. Compared to GDDR5, it offers greater capacity and 2× better performance. In the future, this technology is expected to become mainstream among GPU memory.

Specifications

Chip

Chip manufacturer Intel ARC
Model designation B580
Graphics processor BMG-G21
Chip architecture Battlemage
Number of stream processors 2,560×
Production technology 5 nm

Performance & usage

Use Game playing

Memory

VRAM capacity 12 GB
Memory type GDDR6
Bus width 192-Bit

Frequency

Core frequency 2,670 MHz
Core clock speed (Boost clock) 2,740 MHz
Memory frequency 19,000 MHz (19 GHz)
Effective memory clock (bandwidth) 19 Gbps

Interface

PC connection PCI Express x16 4.0
Bus interface PCIe 4.0 x8
Monitor connection DisplayPort 2.1, HDMI 2.1

Technology

DirectX version 12 Ultimate

Cooling system

Cooling type Active
Cooling size Three slots
number of fans 2 ×

Dimensions

Width 260 mm
Height 52 mm
Depth 130 mm

Consumption

TDP 203 W

AI

Total number of TOPS 0
Code:  ONb58l1
Warranty: 36 months
