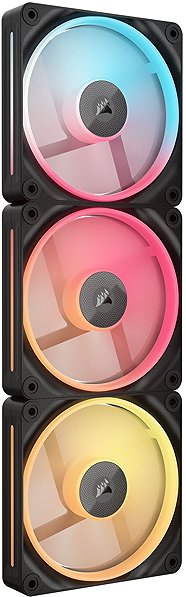

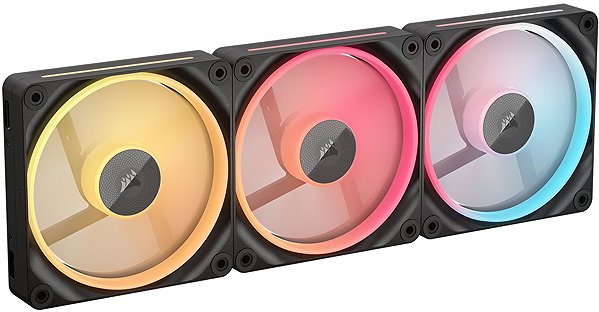

Corsair iCUE LINK LX120-R RGB Black Triple Fan Kit
Corsair iCUE LINK LX120-R RGB Black Triple Fan Kit
The Corsair iCUE LINK LX120-R PC fan set provides a complete cooling and lighting solution for your computer build. The package includes three units and a central iCUE LINK System Hub. The entire system is built on the iCUE LINK ecosystem, which significantly simplifies component management and connection using a single cable type. This solution eliminates cable clutter, makes cable management easier, and contributes to a clean look inside the PC case, while providing full control over performance and RGB backlighting.
Key features of the Corsair iCUE LINK LX120-R RGB PC fan, 3-pack
- iCUE LINK ecosystem connects components with a single cable
- Reverse blades maintain RGB visibility during air intake
- Magnetic Dome bearing reduces friction and ensures quiet operation
- Each fan has 18 addressable RGB LEDs in two zones
- PWM control manages speeds from 400 to 2400RPM

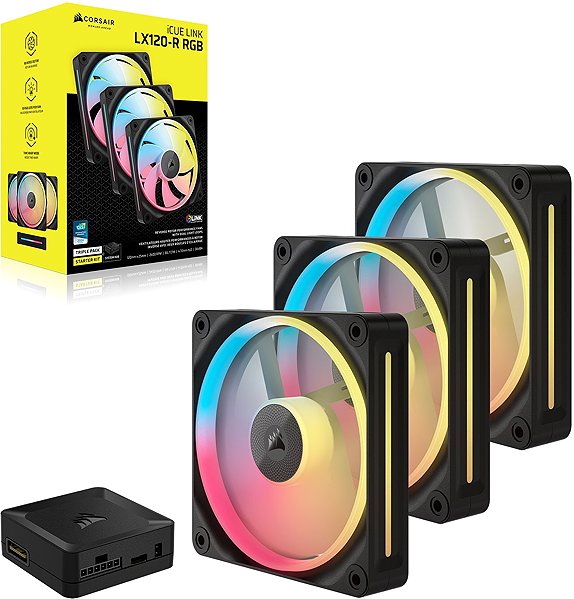

- Set includes the iCUE LINK System Hub for centralised management
- QuikTurn screws speed up and simplify installation
Reverse design of the Corsair iCUE LINK LX120-R fans
The fan blades have a reverse design, which keeps the backlighting fully visible even when mounted for air intake into the case. Each fan carries a total of 18 individually addressable RGB LEDs, arranged in two separate light loops for smooth colour transitions. In addition, the iCUE software provides access to a special Time Warp lighting mode, creating impressive optical illusions.
Performance and quiet operation
The fans operate over a wide speed range from 400 to 2400RPM with PWM control, which automatically adjusts cooling performance to the current component temperature. The Magnetic Dome bearing reduces friction and operational vibrations, contributing to quiet operation with a noise level from 10 to 38dBA. Even at high speeds, they remain refined and deliver an airflow of up to 66.7CFM. The set includes an iCUE LINK System Hub, which serves as a central point for connecting and controlling all the fans. This system reduces the number of cables required and simplifies the overall assembly. Special Corsair QuikTurn screws are used to fasten the fans into the PC case, which tighten with a single quick turn, shortening the installation time.
Fan diameter:
120mm
Speed range:
400–2400RPM
Airflow:
113.33m3/h
Maximum noise level:
38dB
Bearing type:
Magnetic Dome
Connector:
4-pin PWM
Number of fans:
3
Backlight colour:
ARGB
RGB control:
Corsair iCUE
Speed control:
Automatic speed control
Specifications
Backlight
Fan speed
Technical specification
Dimensions
Pack
Connectors
| Code: | UYlx12rr2 |
| Warranty: | 60 months |
| Links: | Producer's Website: |
