ASROCK Intel Arc B580 Challenger 12GB OC

394.90 €
Price Guarantee
Installment calculator 4,9%  interest from 9.08 € monthly

ASROCK Intel Arc B580 Challenger 12GB OC

The ASROCK Intel Arc B580 Challenger 12GB OC graphics card with 12 GB of RAM is just what you need, with a clock speed of 19000 MHz. With this amount of RAM, the 192Bit bus, and a core speed of 2670 MHz The graphics card is designed with the PCI Express x16 4,0 interface, and it's got 4 ports for the connection of a monitor. This graphics card has the DisplayPort 2,1 and HDMI 2,1 interface for the connection of a monitor. The active cooling technology on this graphics card delivers very low temperatures, even under load.

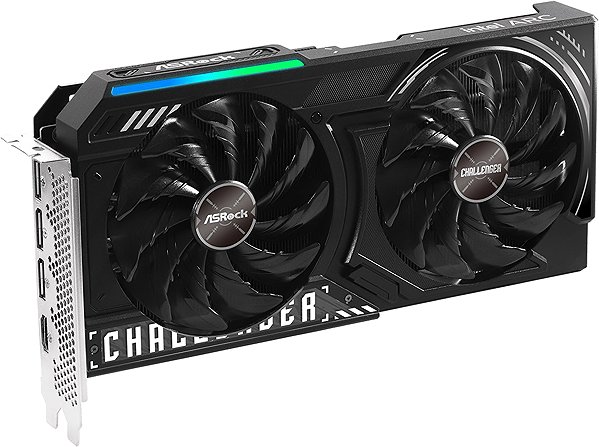

Graphics Card ASROCK Intel Arc B580 Challenger 12GB OC ...

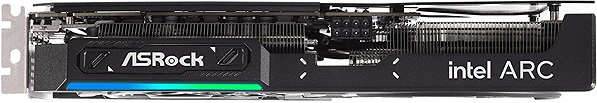

Graphics Card ASROCK Intel Arc B580 Challenger 12GB OC ...

ASROCK Intel Arc B580 Challenger 12GB OC Gaming Graphics Card Key Features

  • Graphics card has Intel Arc B580 graphics chip with 5 nm production technology
  • ASROCK Intel Arc B580 Challenger 12GB OC graphics card allows you to connect 4 monitors
  • Suggested minimum PSU performance: 650 W
  • Intel ARC Intel Arc B580 graphics card random access memory: 12 GB
  • Graphics card cooling: Active
  • Graphics card monitor port type: DisplayPort 2,1 and HDMI 2,1

Active cooling technology, such as that, which is found in this graphics card, is popular mainly because it's a safe and proven way to keep the temperature low. The Dual-slot cooling system on this graphics card features 2 fans and modulates its performance depending on the current processing load.

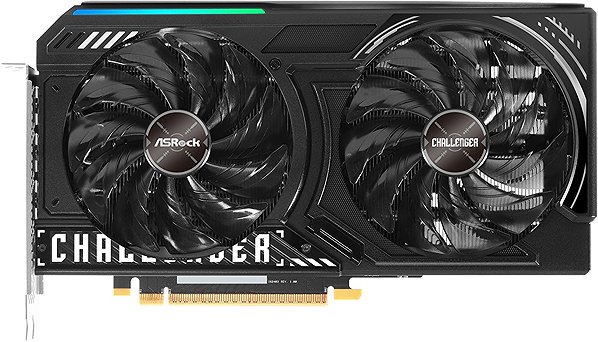

Graphics Card ASROCK Intel Arc B580 Challenger 12GB OC ...

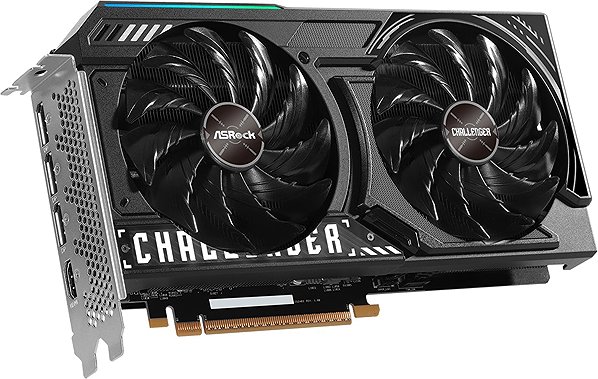

Graphics Card ASROCK Intel Arc B580 Challenger 12GB OC ...

Graphics Card Has 12 GB GDDR6 System Memory

The ASROCK GDDR6 type RAM, which is on this graphics card, is the most advanced memory type available. Compared to GDDR5, it provides greater capacity and 2× better performance. In the upcoming months and years, this type of memory is expected to dominate the mainstream of graphics cards.

Specifications

Chip

Chip manufacturer Intel ARC
Model designation Intel Arc B580
Graphics processor BMG-G21
Chip architecture Battlemage
Number of stream processors 2,560×
Production technology 5 nm

Performance & usage

Use Game playing

Memory

VRAM capacity 12 GB
Memory type GDDR6
Bus width 192-Bit

Frequency

Core frequency 2,670 MHz
Core clock speed (Boost clock) 2,740 MHz
Memory frequency 19,000 MHz (19 GHz)
Effective memory clock (bandwidth) 19 Gbps

Interface

PC connection PCI Express x16 4.0
Bus interface PCIe 4.0 x8
Monitor connection DisplayPort 2.1, HDMI 2.1

Technology

DirectX version 12 Ultimate

Cooling system

Cooling type Active
Cooling size Dual-slot
number of fans 2 ×

Dimensions

Width 249 mm
Height 41 mm
Depth 132 mm

Consumption

AI

Total number of TOPS 0
Code:  ASb580c2
Warranty: 36 months
