PNY GeForce RTX 5060 Ti 8GB Overclocked Dual Fan

593.90 €

PNY GeForce RTX 5060 Ti 8GB Overclocked Dual Fan

The PNY GeForce RTX 5060 Ti 8GB Overclocked Dual Fan graphics card with 8 GB of RAM is exactly what you need, with a clock speed of 28000 MHz. With this amount of RAM, the 128Bit bus, and a core speed of 2235 MHz The graphics card has the PCI Express x16 5,0 interface, and it's got 4 ports for the connection of a monitor. For this graphics card, the manufacturer chose the DisplayPort 2,1b and HDMI 2,1b interface for the connection of a monitor. Active cooling on this graphics card ensures minimal temperatures, even under a heavy load.

Graphics Card PNY GeForce RTX 5060 Ti 8GB Overclocked Dual Fan ...
Graphics Card PNY GeForce RTX 5060 Ti 8GB Overclocked Dual Fan ...

PNY GeForce RTX 5060 Ti 8GB Overclocked Dual Fan Gaming Graphics Card Key Features

  • Graphics card has RTX 5060 Ti graphics chip with 4 nm production technology
  • PNY GeForce RTX 5060 Ti 8GB Overclocked Dual Fan graphics card can accommodate 4 screens
  • Thermal design power: 180 W
  • Suggested minimum PSU performance: 600 W
  • VR support for tech enthusiasts
  • NVIDIA GeForce RTX 5060 Ti graphics card operating memory: 8 GB
  • Graphics card cooling tech: Active

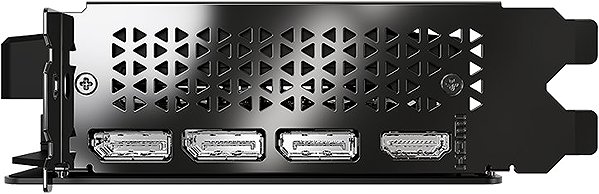

  • Graphics card monitor port type: DisplayPort 2,1b and HDMI 2,1b

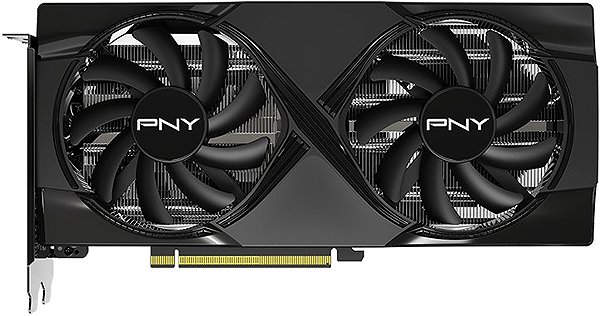

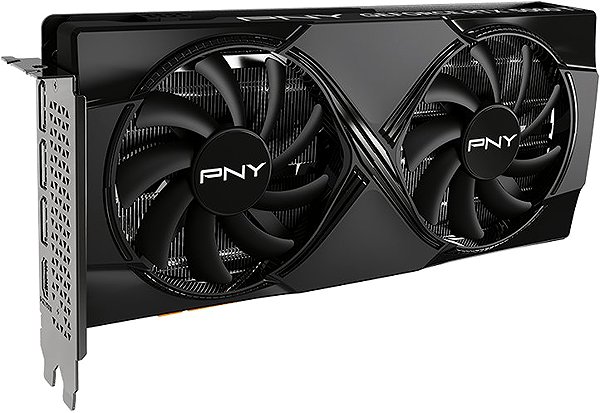

Active cooling, such as that, which is found in this graphics card, is widely used chiefly because it's a good way to reduce the temperature of the components. The Dual-slot cooling system on this graphics card features 2 fans and modulates its performance depending on the current load.

Graphics Card PNY GeForce RTX 5060 Ti 8GB Overclocked Dual Fan ...

Specifications

Chip

Chip manufacturer NVIDIA GeForce
Model designation RTX 5060 Ti
Graphics processor GB206
Chip architecture Blackwell
Number of stream processors 4,608×
Production technology 4 nm

Performance & usage

Use Game playing

Memory

VRAM capacity 8 GB
Memory type GDDR7
Bus width 128-Bit

Frequency

Core frequency 2,235 MHz
Core clock speed (Boost clock) 2,692 MHz
Memory frequency 28,000 MHz (28 GHz)
Effective memory clock (bandwidth) 28 Gbps

Interface

PC connection PCI Express x16 5.0
Bus interface PCIe 5.0 x8
Monitor connection DisplayPort 2.1b, HDMI 2.1b

Technology

Special graphics card features NVIDIA DLSS 4.0
DirectX version 12 Ultimate

Cooling system

Cooling type Active
Cooling size Dual-slot
number of fans 2 ×

Dimensions

Width 245.11 mm
Height 39.88 mm
Depth 119.89 mm

Consumption

TDP 180 W

AI

Total number of TOPS 0
Code:  PNYr56tdo
Warranty: 36 months
Links: Producer's Website:
Manufacturer information

PNY Technologies Europe, ZAC du Phare 9 rue Joseph Cugnot 33708 Mérignac cedex, France https://www.pny.com/en-eu/support-footer/technical-support
