GIGABYTE X870M AORUS ELITE WIFI7 ICE
GIGABYTE X870M AORUS ELITE WIFI7 ICE

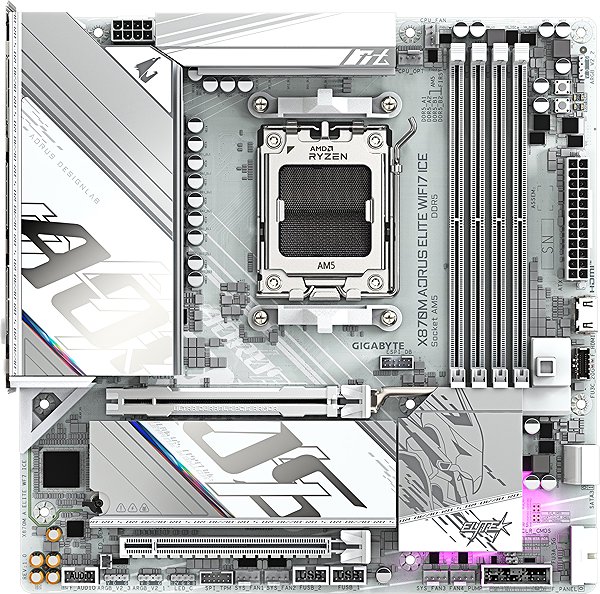

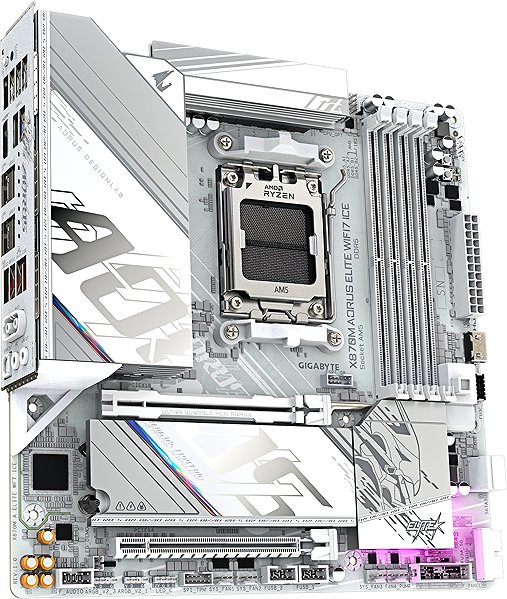

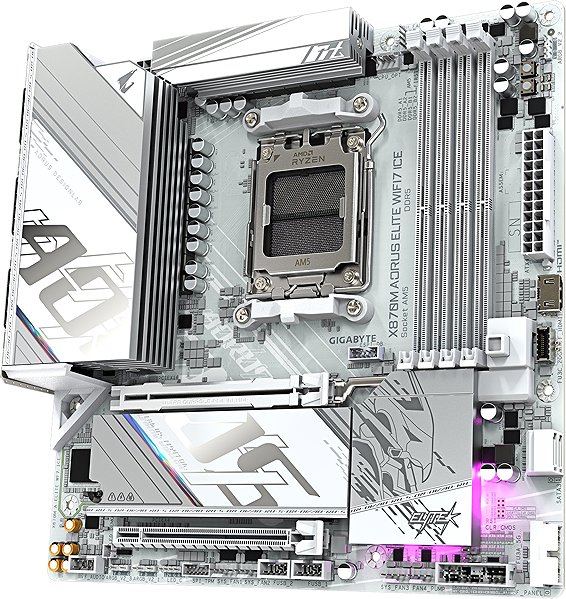

The GIGABYTE motherboard is built on the AMD X870 chipset, and it has the AMD AM5 socket to accommodate the CPU. Classically, it is also equipped with a sound card which handles 8 channels. You can utilise the network connection module with the very handy Wi-Fi connection options. It combines compact dimensions with an adequate number of connectors to create a great home PC setup. If you want to build a PC with this particular model, you will require a compatible mATX (Micro ATX) format PC case.
GIGABYTE X870M AORUS ELITE WIFI7 ICE Motherboard Key Features
- AMD AM5 socket and uses AMD X870 chipset
- GIGABYTE X870M AORUS ELITE WIFI7 ICE format: mATX (Micro ATX)
- Integrated sound card for 8 channels
- DDR5 RAM type with DIMM design
- The motherboard can hold 4 × dual-channel memory modules
GIGABYTE X870M AORUS ELITE WIFI7 ICE Motherboard Connectivity
Computer memory is absolutely essential, so this GIGABYTE motherboard has a total of 4 RAM slots. It's designed for DDR5 type DIMM operating memory. You can hook them up in dual-channel mode. It supports models with a clock speed of up to 8200 MHz.
GIGABYTE X870M AORUS ELITE WIFI7 ICE Connectors
This motherboard supports 2 graphics cards with PCI Express 16x slots. The internal interface is also equipped a total of 2 popular M.2 connectors. In terms of USB ports, it is built with 4 × USB 2.0, 4 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports.
- The motherboard comes with an implemented Realtek ALC1220 sound card

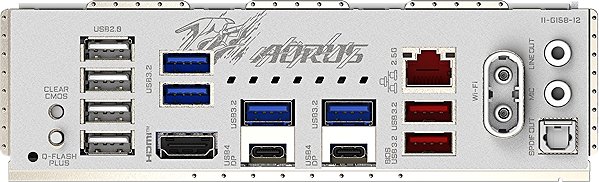

- External communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB 4 and HDMI 2.1
- Supported internal interfaces: RGB LED Header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 2x2 bracket, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, Serial ATA III, M.2 PCIe 4.0 and ARGB LED Header
- Maximum supported RAM clock speed: 8200 MHz
- SATA III: 2 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
| Code: | AGx870a5 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
