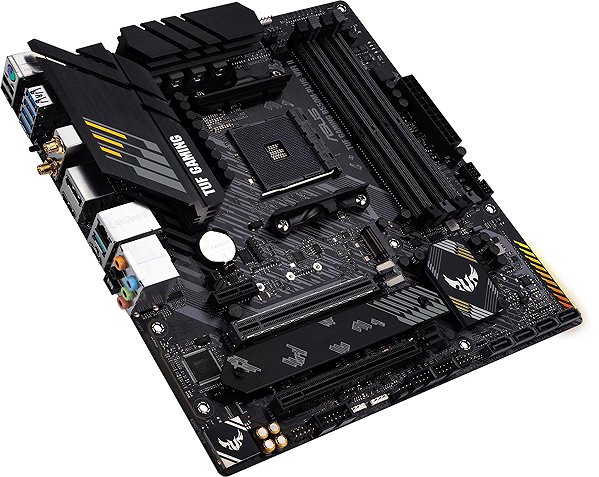

ASUS TUF GAMING B550M-PLUS WIFI II

The ASUS motherboard is built with the AMD B550 chipset, which has the AMD AM4 socket for the processor. As is the standard, it is also equipped with a sound card made for 8,0 channels. You will be able to use the network connection module with the very practical Wi-Fi support. It combines modest dimensions with an adequate number of connectors to create a great home PC setup. If you want to build a PC with this particular motherboard, it is neccessary to use a compatible mATX (Micro ATX) format computer case.

ASUS TUF GAMING B550M-PLUS WIFI II Motherboard Key Features

• AMD AM4 socket and the AMD B550 chipset
• ASUS TUF GAMING B550M-PLUS WIFI II format: mATX (Micro ATX)
• Integrated audio card for 8,0 channels
• DDR4 RAM type with DIMM design
• The motherboard can accommodate 4 × dual-channel memory modules

ASUS TUF GAMING B550M-PLUS WIFI II Motherboard Connectivity

Computer memory is absolutely crucial, so this ASUS motherboard is equipped with 4 RAM slots. It's designed for DDR4 type DIMM memory . You can attach them in dual-channel mode. This motherboard is compatible with modules with a clock speed of up to 4866 MHz.

ASUS TUF GAMING B550M-PLUS WIFI II Connectors

The motherboard accommodates 2 graphics cards with PCI Express 16x slots. The internal interface also includes a total of 2 popular M.2 slots. In terms of USB ports, it is built with 2 × USB 2.0, 4 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports.

• The motherboard has an integrated Realtek ALC897 sound card
• External interfaces: Jack, PS/2, RJ-45 (LAN) 2.5Gbps, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.2
• Supported internal interfaces: COM header, M2 Socket, RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, Serial ATA III and M.2 PCIe 4.0
• The M.2 socket provides a much welcome option for installing super fast SSDs
• The motherboard supports RAM modules with a clock speed of up to 4866 MHz
• Serial ATA III: 4 ×
