ASROCK A520M-HVS
The ASRock A520M-HVS motherboard combines a compact mATX format with modern technologies, allowing you to build a powerful PC with AMD Ryzen 3000, 4000 G, and 5000 series processors. With its six-phase power design and support for overclocked DDR4 memory up to 4733MHz, it delivers stable performance even for demanding tasks. For system expansion, the board offers one PCIe 3.0 x16 slot for a graphics card and one PCIe 3.0 x1 slot for other peripherals. Storage is handled by four SATA III ports and one Ultra M.2 slot, which is compatible with both PCIe Gen3 x4 and SATA3. Graphics outputs include D-Sub and HDMI 2.1, supporting 4K resolution at 60Hz and ensuring a high-quality picture on both modern and older monitors. Audio is managed by the Realtek ALC887 with 7.1-channel output, and a Realtek gigabit LAN card provides a stable network connection.
AMD A520
Chipset
AMD AM4
Socket
mATX (Micro ATX)
Format
DDR4
Memory type
2×
Number of RAM slotsKey features of the ASROCK A520M-HVS motherboard
- Support for AMD Ryzen 3000, 4000 G, and 5000 G series processors on the AM4 socket with a 6-phase power design for stable performance
- DDR4 memory with overclocking up to 4733MHz for fast data processing and smooth system operation
- Ultra M.2 slot with PCIe Gen3 x4, reaching transfer speeds of up to 32Gb/s and also supporting SATA3 storage
- HDMI output with 4K resolution support at 60Hz, providing sharp details and a smooth picture thanks to higher bandwidth
- Premium 50A power chokes improve voltage stability up to three times compared to standard components and protect against outages
- Realtek Gigabit LAN card and 12 USB ports ensure fast connectivity and plenty of connectors
Expansion options and storage
The board features an Ultra M.2 slot with a PCIe Gen3 x4 interface, which achieves transfer speeds of up to 32Gb/s while also supporting SATA3 6Gb/s M.2 modules. This combination gives you flexibility when choosing storage devices and high performance for fast SSDs. Four SATA III connectors provide ample space for connecting traditional hard drives and expanding the system's total capacity.
Optimised performance with AMD Smart Access Memory
AMD Smart Access Memory technology removes the traditional limitation where the processor can only access a fraction of the graphics memory. By expanding the data channel, it enables full utilisation of the GPU memory, eliminating system bottlenecks and increasing overall performance in demanding applications and games. This feature is fully supported when using compatible AMD Ryzen processors and graphics cards.
Quality components for stable operation
The board uses premium 50A power chokes which, compared to traditional solutions, offer up to three times better saturation current and ensure more stable power delivery to the processor. The printed circuit board (PCB) is made from high-density glass fabric, which minimises the gaps between layers and protects against electrical shorts caused by humidity. Full Spike Protection safeguards sensitive digital components from damage caused by unexpected voltage surges.
Port selection
Storage
- Number of SATA III: 4
- Number of M.2: 1
- M.2 Slot - 1× M.2 PCI-E NVMe Gen3 (also supports SATA3)
- Features: RAID 0, RAID 1, RAID 10
USB ports
- Internal USB 2.0: 4 (2 headers)
- Internal USB 3.2 Gen 1: 2 (1 header)
- Rear USB 2.0: 2
- Rear USB 3.2 Gen 1: 4
Graphics
- HDMI 2.1
- D-Sub
- Graphics outputs: HDMI, D-Sub
Sound
- Number of channels: 7.1

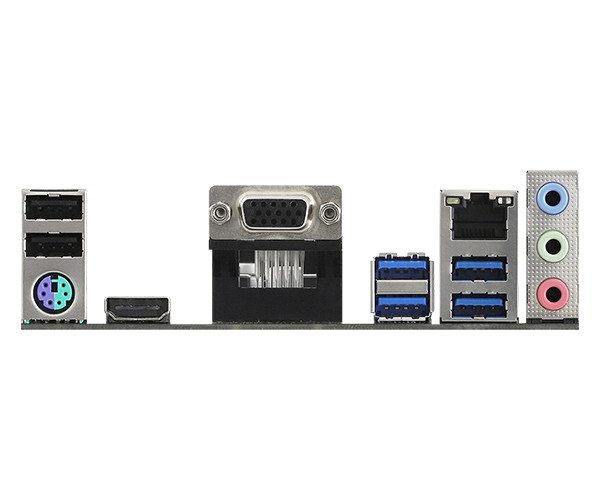

- Rear connectors: 3× 3.5mm jack (line in, front speaker, microphone)
Other
- Rear: PS/2, RJ-45 LAN
- Power: 24pin, 4pin
- Cooling: Number of PWM FAN (4-pin) - 3
- Internal: Chassis Intrusion (JCI), COM Port Header, SPI TPM Header
Choosing a motherboard
When choosing a motherboard, it's important to pay close attention to the socket type, form factor, and chipset. These are the most crucial parameters, as they ensure compatibility between the board, processor, expansion cards, and other components. The specific socket determines which processor you can use, while the other connectors dictate which components you'll need for your future computer.Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
