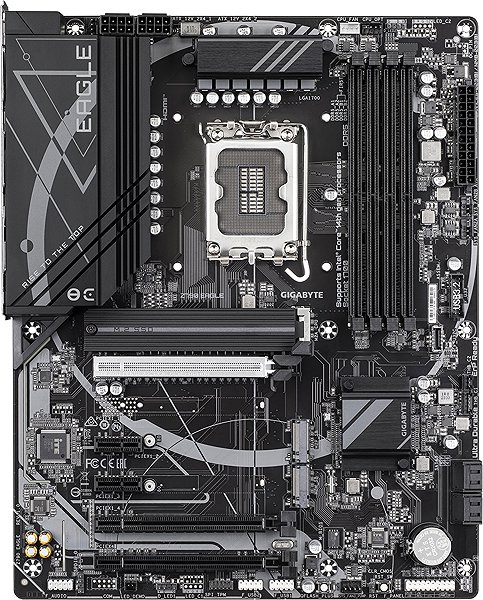

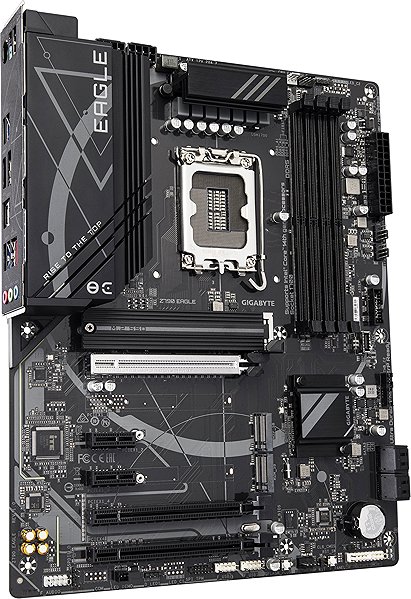

GIGABYTE Z790 EAGLE
GIGABYTE Z790 EAGLE
This GIGABYTE motherboard is built using the Intel Z790 chipset, and it has the Intel 1700 socket to accommodate the processor. As is usually the case, it is also equipped with a sound card which will handle 8,0 channels. It is a larger motherboard for extremely powerful PC builds, which require multiple cards and complex cooling. If you want to build a PC with this particular motherboard model, you will need a compatible ATX format PC case.
GIGABYTE Z790 EAGLE Motherboard Key Features
- Intel 1700 socket and the Intel Z790 chipset
- GIGABYTE Z790 EAGLE size: ATX
- Integrated audio card for 8,0 channels
- DDR5 RAM type with DIMM design
- The motherboard can hold 4 × dual-channel memory modules
GIGABYTE Z790 EAGLE Motherboard Connectivity
Computer RAM is indispensable, so this GIGABYTE motherboard has a total of 4 RAM slots. You can make use of DDR5 type DIMM operating memory. You can hook them up in dual-channel mode. The motherboard supports models with a clock speed of up to 7600 MHz.
GIGABYTE Z790 EAGLE Connectivity
The motherboard accommodates 3 graphics cards with PCI Express 16x slots. The internal interface includes a total of 3 popular M.2 connectors. In terms of USB ports, it has 2 × USB 2.0, 4 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports.

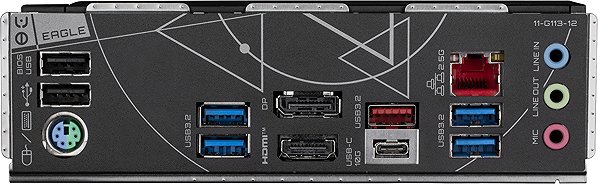

- External interfaces: Jack, PS/2, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.2
- Internal interfaces: S/PDIF header, Thunderbolt header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 1 bracket, USB 2.0 bracket, PCIe 5.0 x16, PCIe 4.0 x4 and Serial ATA III
- Maximum supported RAM clock speed: 7600 MHz
- SATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
| Code: | AGz790e1 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
