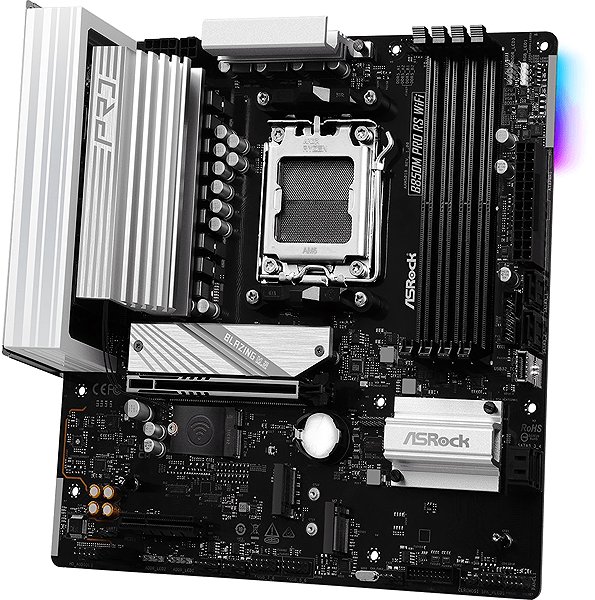

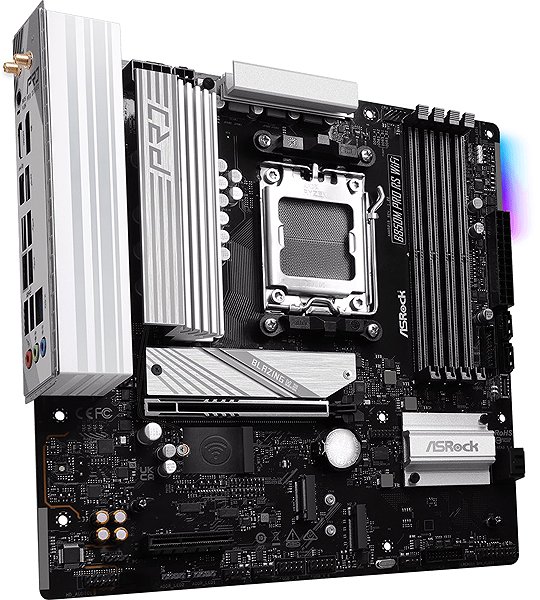

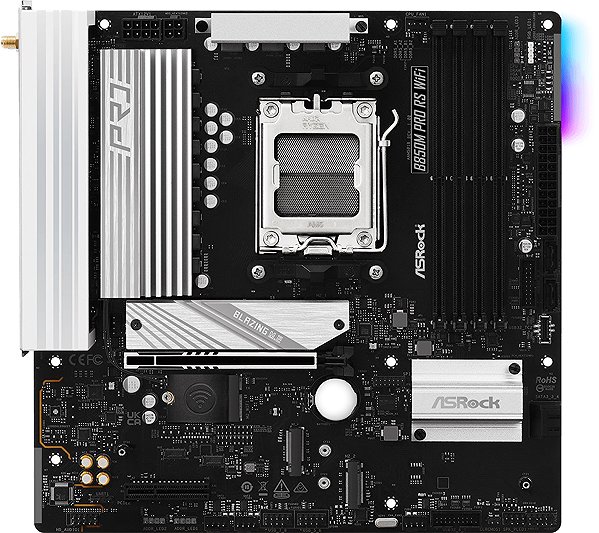

ASROCK B850M PRO RS WIFI
ASROCK B850M PRO RS WIFI
This ASROCK motherboard is based on the AMD B850 chipset, and it has the AMD AM5 socket for CPU insertion. Classically, it has a sound card made for 8,0 channels. You can utilise a network connection module with the practical Wi-Fi support. It smartly combines compact dimensions with adequate connectors to create a great home PC setup. If you want to choose this motherboard, you will need a compatible mATX (Micro ATX) format case.
ASROCK B850M PRO RS WIFI Motherboard Key Features
- AMD AM5 socket and AMD B850 chipset
- ASROCK B850M PRO RS WIFI format: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can hold 4 × dual-channel memory modules
ASROCK B850M PRO RS WIFI Motherboard Connectivity
Computer memory is indispensable, so this ASROCK motherboard is equipped with 4 RAM slots. It's designed for DDR5 type DIMM memory . You can attach them in dual-channel mode. The motherboard supports models with a clock speed of up to 8000 MHz.
ASROCK B850M PRO RS WIFI Connectivity
The motherboard is made for graphics cards with a PCI Express 16x slot. The internal interface has a total of 3 popular M.2 connectors. In terms of USB ports, it has 4 × USB 2.0, 2 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports.
- The motherboard has an integrated Realtek ALC897 sound card

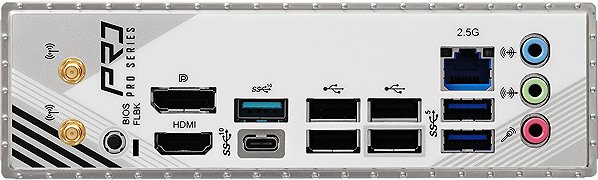

- External interfaces: Jack, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.4
- Supported internal interfaces: RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4 and Serial ATA III
- Maximum supported RAM clock speed: 8000 MHz
- Serial ATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
| Code: | ASb850p5 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
