GIGABYTE B840M AORUS ELITE WIFI6E
GIGABYTE B840M AORUS ELITE WIFI6E

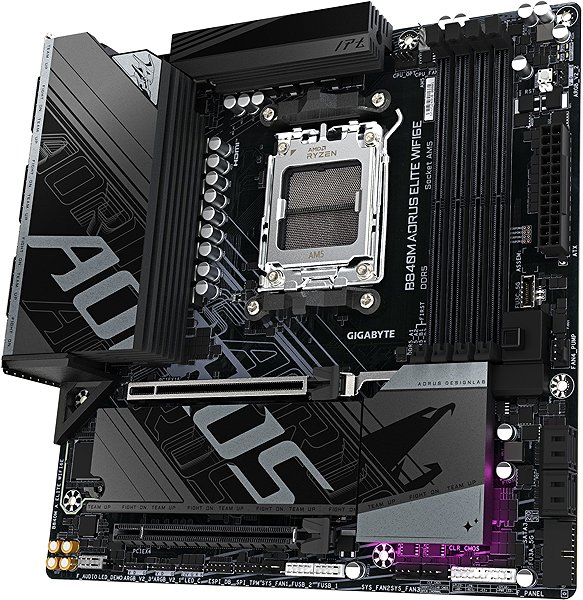

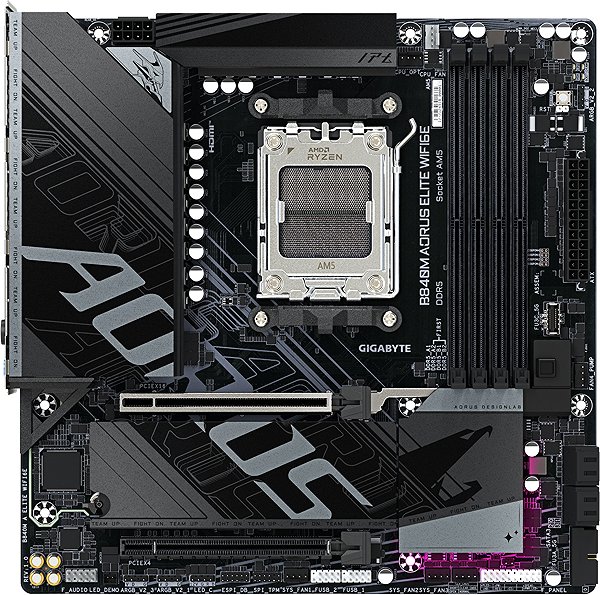

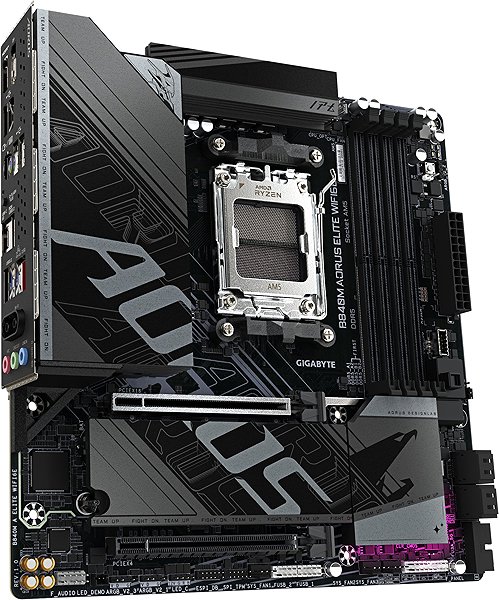

This GIGABYTE motherboard is built on the AMD B840 chipset and has the AMD AM5 socket to accommodate the CPU. As is usually the case, it also has a sound card which will handle 8,0 channels. You can use a network connection module with the very handy Wi-Fi support. It smartly combines compact dimensions with an adequate number of connectors to create a great home PC setup. If you want to build a PC with this particular motherboard, you'll require a compatible mATX (Micro ATX) format PC case.
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard Key Features
- AMD AM5 socket and AMD B840 chipset
- GIGABYTE B840M AORUS ELITE WIFI6E size: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard Connectivity
RAM is absolutely essential, so this GIGABYTE motherboard has a total of 4 RAM slots. It's compatible with DDR5 type DIMM RAM. You can connect them in dual-channel mode. This motherboard is compatible with models with a clock speed of up to 8200 MHz.
GIGABYTE B840M AORUS ELITE WIFI6E Connectors
This motherboard is ready to accommodate 2 graphics cards with PCI Express 16x slots. The internal interface also includes a total of 2 popular M.2 slots. In terms of USB adaptors, it is built with 4 × USB 2.0, 3 × USB type 3.0 (3.1 gen1) and 1 × of the fast 3.1 (3.1 gen2) type ports.

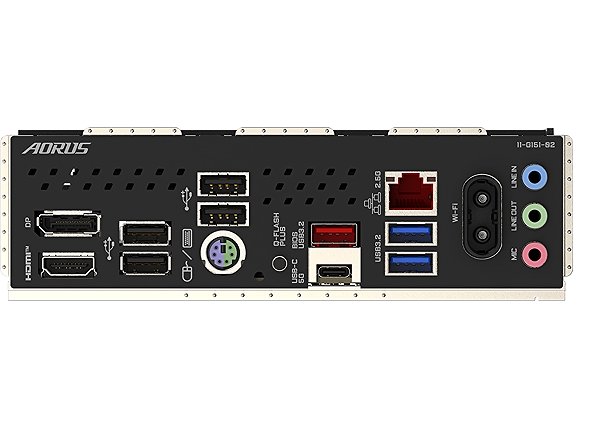

- External interfaces: Jack, PS/2, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1, HDMI 2.1 and DisplayPort 1.4
- Internal interfaces: RGB LED Header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 1 bracket, USB 2.0 bracket, PCIe 4.0 x16, PCIe 3.0 x4 and Serial ATA III
- Maximum supported RAM clock speed: 8200 MHz
- SATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
| Code: | AGb840a1 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
| Manufacturer information |
SIL Servis Partner a.s., Těšínská 1970/56, 710 00 Slezská Ostrava, Czech Republic, +420 552 301 141, [email protected] Gigabyte, founded in 1986, is an irreplaceable player in the field of computer components. They put great emphasis on key technologies and the strictest quality standards. The company produces a wide range of basic computer components such as motherboards and graphics cards, but also have many computer peripherals, laptops, tablets, desktops and even network solutions and servers on offer. Recently they also introduced a line of Gigabyte mobile phones.
|
