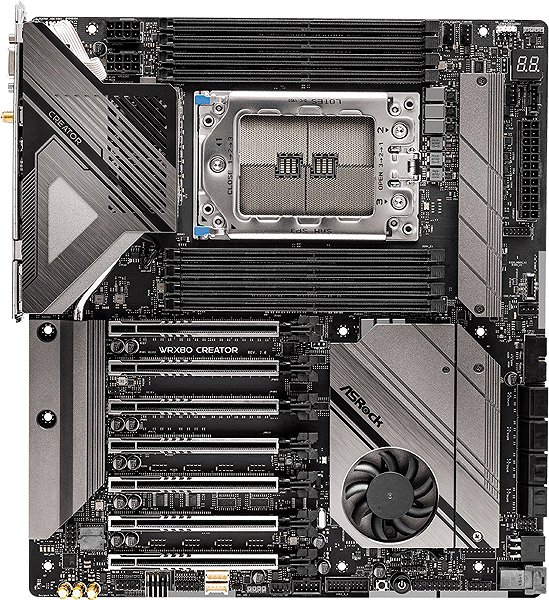

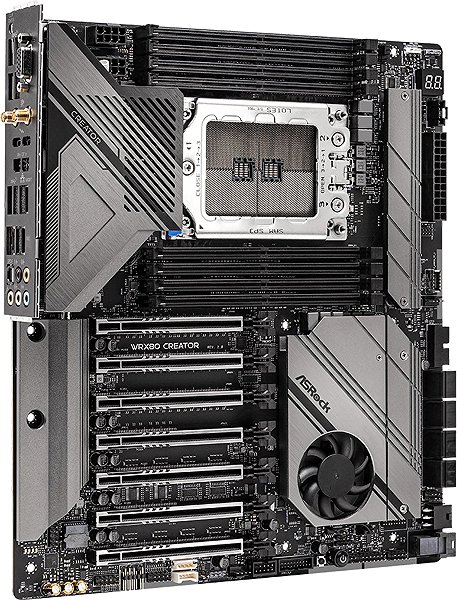

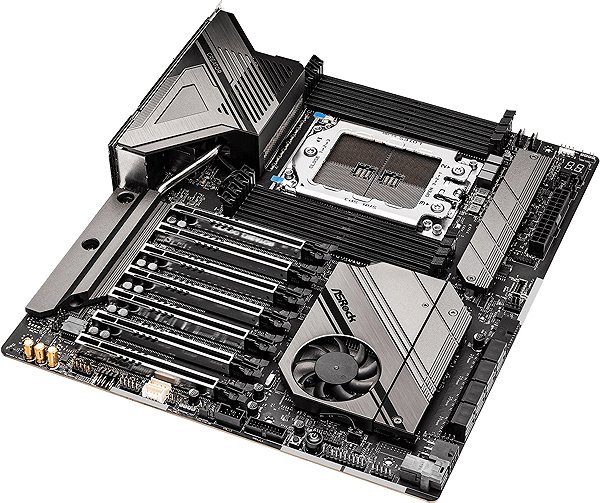

ASROCK WRX80 CREATOR R2.0
Don't like the alternatives?
Choose from the full offer
ASROCK WRX80 CREATOR R2.0
The ASROCK motherboard is built with the AMD WRX80 chipset and has the AMD WRX8 socket for the processor. As you would expect,, it also has a sound card which can handle 8,0 channels. You will be able to utilise a network connection module with the very handy Wi-Fi connection support. It's quite a large motherboard for high-range PC configs that employ multiple hardware cards and complex cooling. If you want to choose this model, you'll require a compatible eATX (Extended ATX) format PC case.
ASROCK WRX80 CREATOR R2.0 Motherboard Key Features
- AMD WRX8 socket and AMD WRX80 chipset
- ASROCK WRX80 CREATOR R2.0 format: eATX (Extended ATX)
- Integrated audio card for 8,0 channels
- DDR4 RAM type with DIMM design
- The motherboard can accommodate 8 × octa-channel memory modules
ASROCK WRX80 CREATOR R2.0 Motherboard Connectivity
Computer RAM is something you obviously can't do without , so this ASROCK motherboard has 8 slots. You can use DDR4 type DIMM RAM. You can connect them in octa-channel mode. It supports models with a clock speed of up to 4400 MHz.
ASROCK WRX80 CREATOR R2.0 Connectivity
This motherboard supports 7 graphics cards with PCI Express 16x slots. The internal interface also has a total of 2 popular M.2 connectors.
- The motherboard comes with a built-in Realtek ALC4050H+ALC1220 sound card

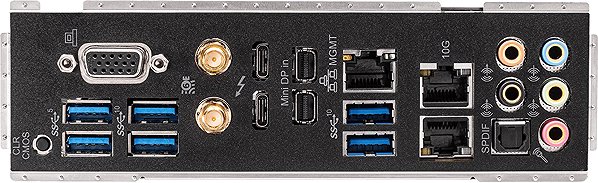

- Supported external communication interfaces: Jack, RJ-45 (LAN) 10Gbps, S/PDIF , USB 3.2 Gen 1, USB 3.2 Gen 2, VGA (D-Sub) and USB 4
- Internal interfaces: COM header, RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2 header, PCIe 4.0 x16 and Serial ATA III
- Maximum supported RAM clock speed: 4400 MHz
- SATA III: 8 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
| Code: | ASwrx80c1 |
| Links: | Producer's Website: |
