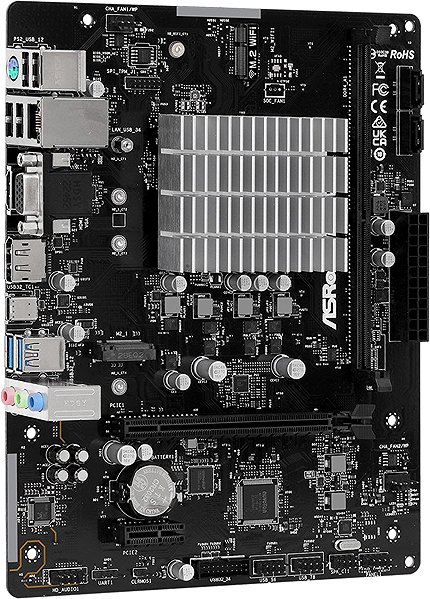

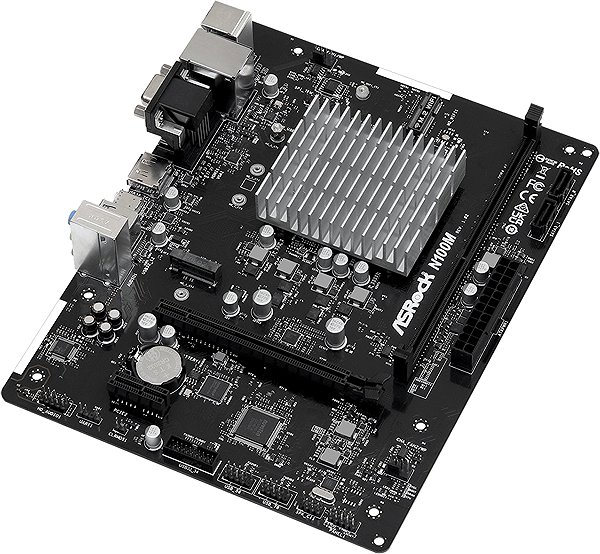

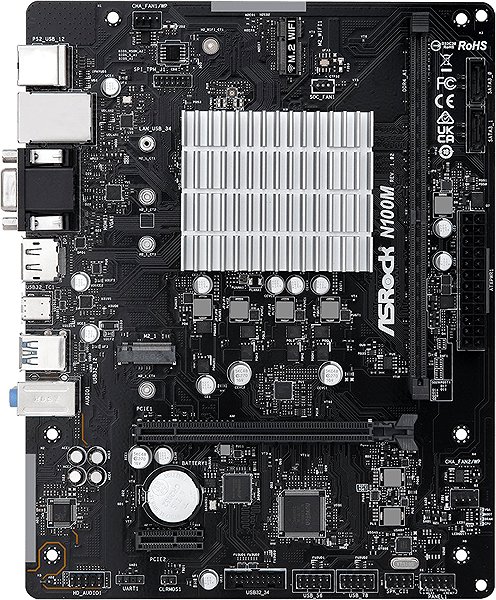

ASROCK N100M
This ASROCK motherboard is built on the SoC chipset, which has the Integrated CPU socket to accommodate the CPU. As is the standard, it has a sound card made for 8,0 channels. It skilfully combines compact dimensions with adequate connectors for the optimal home computer setup. If you want to build a PC with this particular motherboard model, it is neccessary to use a compatible mATX (Micro ATX) format computer case.
ASROCK N100M Motherboard Key Features
- Integrated CPU socket and SoC chipset
- ASROCK N100M format: mATX (Micro ATX)
- Integrated audio card for 8,0 channels
- DDR4 computer RAM type with DIMM design
ASROCK N100M Motherboard Connectivity
You can link them in dual-channel mode. The motherboard supports models with a clock speed of up to 3200 MHz.
ASROCK N100M Connectors
The motherboard supports graphics cards with a PCI Express 16x slot. The internal interface also includes a total of 1 popular M.2 connectors. In terms of USB ports, it has got 4 × USB 2.0, 2 × USB type 3.0 (3.1 gen1) and 1 × of the fast 3.1 (3.1 gen2) type ports. You'll also find that it has TPM for improved security.
- The motherboard has a built-in Realtek ALC897 sound card

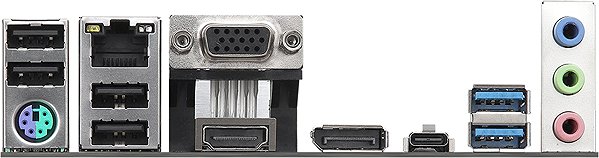

- External interfaces: Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, VGA (D-Sub), USB-C 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.4
- Internal interfaces: TPM header, USB 2.0 header, USB 3.2 Gen 1 header, M.2 PCIe 3.0 and Serial ATA III
- The motherboard supports RAM modules with a clock speed of up to 3200 MHz
- SATA III: 2 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
| Code: | ASn100m1 |
| Links: | Producer's Website: |
