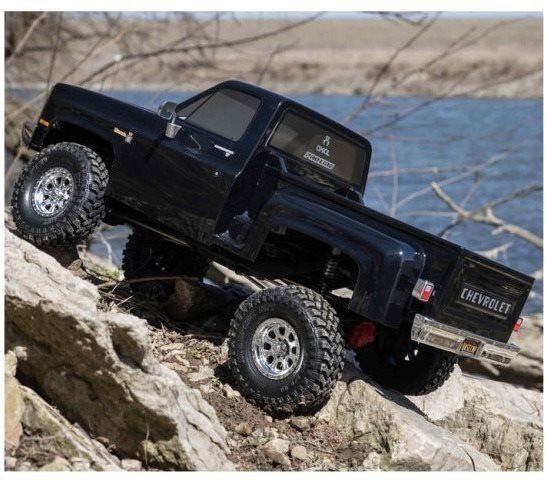

Axial SCX10 III Base Camp 1:10 4 WD Chevy K10 1982 black
Axial SCX10 III Base Camp 1:10 4 WD Chevy K10 1982 black
RC car Axial SCX10 III Base Camp 1:10 4 WD is an expedition model of an American offroad car from the 80s. Just like a real car, the Chevy K 10 is not only ready for the road, but thanks to the SCX10 III chassis with 4WD, it can tackle tougher terrain and rock climbs. The officially licensed Proline Chevy K 10 body is painted, with clear windows, and includes details like the front grille and side mirrors. For impressive looks and evening rides, the model is equipped with LED lighting. Despite its shape, it was the first generation C/K to be computer and wind tunnel optimised for lower drag and fuel consumption.
1:10
Scale
100 m
Transmission range
15 km/h
Maximum speed
Up to 50 minutes
Operation time
Outdoor
Retrieved from
Key features of RC car Axial SCX10 III Base Camp 1:10 4 WD Chevy K10 1982, black
- AR45 high clearance portal axles
- LCXU single-speed gearbox
- Metal ball studs and suspension rods
- All-metal gears
- Fully fitted with ball bearings
- Adjustable oil-filled aluminium shock absorbers
- Officially licensed 1982 Chevy K10 body
- Officially licensed Falken Wildpeak tyres
- Dynamite 35T DC motor
- RC kit Spektrum SLT3 2,4 GHz
Durable, powerful and ready for any terrain
The proven SCX 10 III chassis in the lightweight Base Camp version features C-shaped steel sections to minimize chassis flex and twist. AR 45 portal axles give high ground clearance and ground clearance. The LCXU single speed gearbox has ball bearings and metal gearing for high strength and durability. Excellent suspension is provided by oil-filled aluminium shock absorbers for authentic ride characteristics. The model is powered by a powerful Dynamite 35 T DC motor and a Spektrum 40 A controller. The Spektrum SLT 3 transmitter and SR 315 receiver provide reliable control at 2.4 GHz. For commissioning, a 2 S or 3 S LiPol battery and a suitable charger are required.
Portal chassis axles with steel profiles and suspension geometry
The portal axles increase the ground clearance of the chassis by means of integrated gears and this ensures better ground clearance. The SCX 10 III's durable and rigid chassis with steel C-profiles reduces frame flex and increases suspension and steering precision. The front suspension is optimised to reduce the bump steer effect, while the 4-point rear suspension reduces leaning when the throttle is applied.
Transmission LCXU, drive system and RC kit Spektrum SLT 3
The LCXU single speed transmission is durable, simple and works great with both AR 45 portal axles installed or standard straight axles. The gearbox includes a complete set of ball bearings and metal gears. The propulsion system includes a Dynamite 35 T DC motor and a Spektrum 40 A controller. With this simple and reliable combo, you'll spend more time on the trail and less time on maintenance. The included 3-channel SLT 3 transmitter provides reliable 2.4 GHz control and standard features including steering deflection, throttle trim and steering and throttle limit (100%, 75%, 50%). The SR 315 3-channel receiver with SLT and DSMR modulation allows easy upgrade to universal transmitters such as Spektrum DX 5 C, DX 5 Rugged or DX 5 Pro.
Metal suspension components, Chevy K 10 body and Falken Wildpeak M/T tires
All rods and ball joints are metal for high and long-lasting performance. The officially licensed body of the 1982 Proline Chevy K 10 detailedly captures the easily recognizable lines of this iconic car. The new 4.19" Falken Wildpeak M/T R 35 tyres on Raceline 928 Monster one-piece wheels provide high grip on dirt, rocks and all other off-road trails.
Features and technical specifications
- Frequency 2.4 GHz
- Receiver Spektrum SR 315 DSMR/SLT
- Transmitter Spektrum SLT 3
- LiPo battery
- 4× AA batteries for transmitter
- Weight2300 g
- Dimension 24,8 × 23,5 × 52,7 cm
Package contents
- RC car model Axial SCX 10 III Base Camp 1982 Chevy K10
- DC motor Tazer 540 35 T
- Regulator Spektrum Firma 40 A
- Spectrum servo S 614 MG WP 23 T
- Receiver Spektrum SR 315 DSMR/SLT
- Transmitter Spektrum SLT 3 2,4 GHz
- 4× AA batteries
- Cross wrench for wheels, pistons
- Body brackets
- Battery side bed
- Instructions CZ and manual EN, DE, FR, IT
Specifications
Age and intended use
RC model type
Scale
Features
Advanced
Control type
Colour
Dimensions
Model power supply
Controller power supply
Battery
| Code: | ASTmod12 |
| Warranty: | 24 months |
