Soler&Palau SILENT 100 CZ Design 3C (+ transformer CT 12/14 230/12 V) bathroom, white
Soler&Palau SILENT 100 CZ Design 3C (+ transformer CT 12/14 230/12 V) bathroom, white
The SILENT 100 CZ Design 12 V 3C fan belongs to the design series of small axial fans of the Soler&Palau Ventilation Group, which is one of the top companies in the global market.
Key features Soler&Palau SILENT 100 CZ Design 3C (+ transformer CT 12/14 230/12 V) bathroom, white

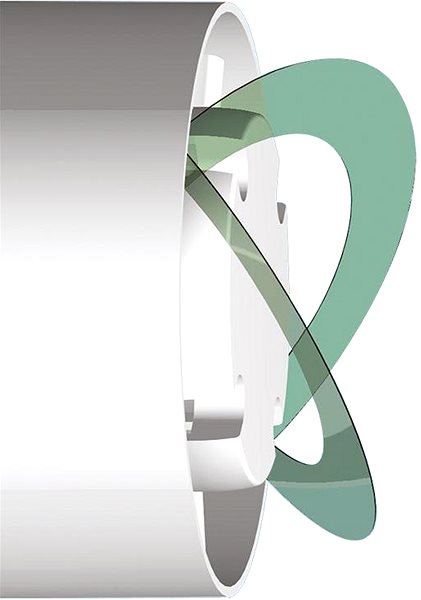

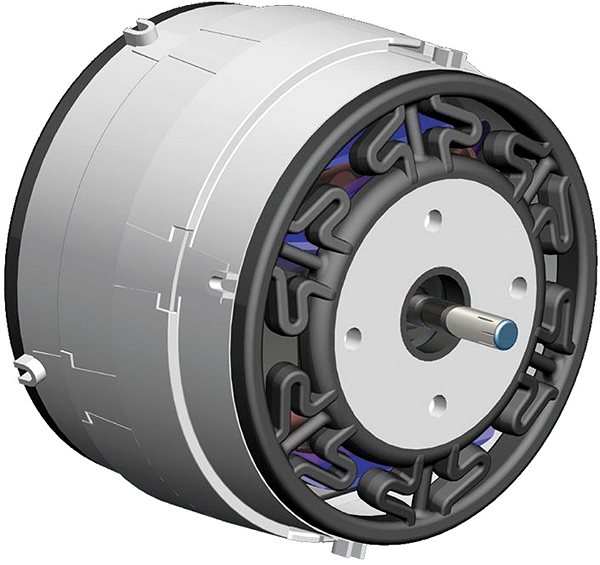

- All fans in this series are characterised by their extremely quiet design (max. 26.5 dB), energy saving, asynchronous ball bearing motors with overload protection and IP45 rating, and a patented check valve
- Suitable for short ducts with very low pressure drop (max. 3 m) or for ventilation directly through the wall
- They find their application especially in sanitary facilities, bathrooms, toilets and places with higher humidity, while their maximum operating temperature is 40°C
SILENT DESIGN fans
SILENT DESIGN small IP45 axial fans are a comprehensive range of fans from Soler&Palau Ventilation Group with a timeless and elegant design. Their common features are energy saving, emphasis on functionality and patented technical processing. Thanks to their colour variation and compact size, they can be used in virtually all commercial and non-commercial spaces.
These fans come in many variants, the type of which is indicated by the capital letters in the name:
C - reverse flap
Z - ball bearings
R - adjustable time (timer) 1-30 minutes
H - hygrostat (humidity sensor), adjustable time (timer), 1-30 minutes
12V - safety design IP57
3C - 4 stripe colours
4C - 5 stripe colours
SWAROVSKI - unique SWAROVSKI design strip

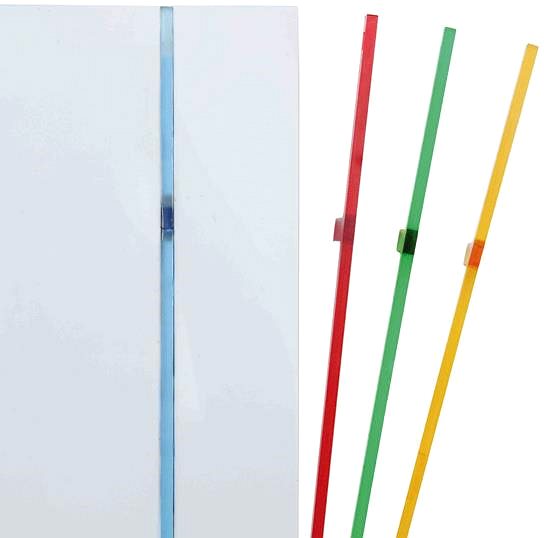

The 3C series comes standard in white or silver with 4 interchangeable colour strips - blue, red, green and yellow - to ensure that the fan always blends in with the overall look of the room. These are always included in every package. In this particular offer SILENT CZ 12 V - version with IP57 protection degree, with check valve, ball bearings and operation indicator, with transformer CT 12/14 (12 V) - WHITE.
The fan enclosure is designed for wall mounting and can be positioned horizontally and vertically without restriction, with fixing by means of 4 screws under the fan grille. Screws and dowels are already included. The terminal block is accessible by removing the front grille of the fan and its connection is installed flush with the plaster. Included in the package is a CT 12/14 230/12 V power transformer with a safe voltage of 12 VAC and IP21 degree of protection, which is mounted on the plaster. DN100 pipe connection.

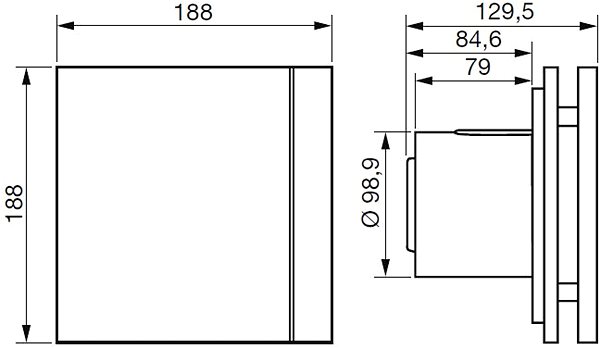

Dimensions and mounting:
See. picture and instructions attached.
Installation may only be carried out by a qualified person or an installation company (again, see operating instructions for details).
Specifications
Type
Power Supply
Technical specification
Noise
Features
Colour
Dimensions and weight
Type
Technical specification
Connection diameter
Features
Colour
Dimensions and weight
| Code: | EDEmisc42 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
S&P SISTEMAS DE VENTILACIÓN, S.L.U., Llevant, 4, Polígono Industrial Llevant, 08150 Parets del Vallès, Barcelona – Spain, [email protected], www.solerpalau.com/en-en/home |
