JTS E-7R/E-7TB + GC-80
JTS E-7R/E-7TB + GC-80
The JTS E-7R/E-7TB + GC-80 wireless microphone system is a complete set for professional audio recording with high quality and reliability. It includes the E-7R single-channel receiver, the E-7TB bodypack transmitter, and the GC-80 cable for connecting a guitar, for example. The System provides users with 16 selectable channels for flexible setup and minimized interference. Its stable RF connection and excellent audio performance make it the ideal choice for a variety of professional applications, including lectures, conferences and live performances. And all this at a very affordable price.
Key Features of the JTS E-7R/E-7TB + GC-80 Wireless System
- The JTS E-7R/E-7TB + GC-80 wireless system will offer you excellent audio performance
- Includes single channel receiver, bodypack transmitter and lapel condenser microphone
- The E-7R wireless receiver has 16 channels
- It is equipped with a 6.3mm jack
- Connect the E-7TB transmitter to the microphone via a 4P mini XLR connector
- Gives you up to 30 hours of operation
- The instrument cable allows you to connect both guitar and bass via 6.3 mm jack and 4P mini XLR connectors

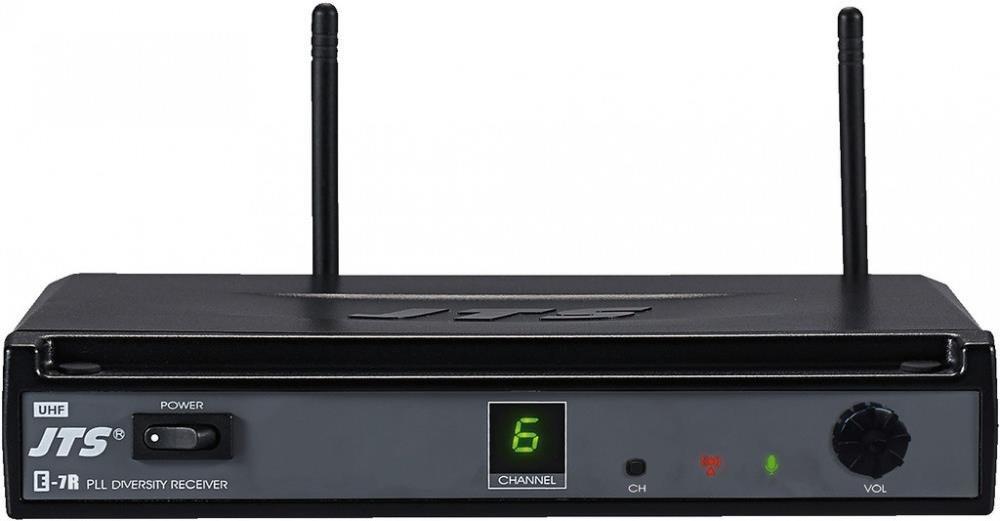

Wireless receiver E-7R
The E-7R receiver is a professional wireless receiver designed for reliable and high quality audio reception in the UHF frequency band with PLL synthesis. With 16 channels and a transmission frequency range from 470 to 960 MHz, this receiver offers flexibility and the ability to select the optimal channel for seamless operation. With a signal-to-noise ratio of more than 100 dB and harmonic distortion of less than 0.6% at 1 kHz, the E-7R delivers clear and faithful audio performance. A 7-segment display shows channel and RF/AF status information, while controls allow easy power adjustment, channel selection and volume adjustment. The audio output level reaches -15 dB, ensuring optimum volume and sound quality. The receiver operates with an operating voltage of 12V and current consumption is 150 mA. The output connector is equipped with one balanced 6.3 mm jack, which allows easy connection to other devices. With dimensions of 210 × 40 × 170 mm (W×H×D), the receiver offers a compact design that integrates easily into your setup.

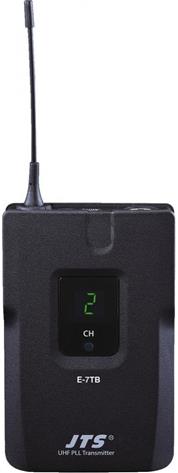

Pocket (bodypack) transmitter E-7TB
The E-7TB handheld transmitter is a compact and powerful wireless audio transmission device with high reliability and flexibility. Thanks to PLL synthesis, it offers stable and accurate signal transmissions. With a transmit power of 10 mW and a frequency response from 40 Hz to 18 kHz, it provides wide coverage of the audio spectrum. With an acceptable ambient temperature of 0 to 40°C and a ±48KHz tolerance, it is suitable for a wide range of applications in a variety of environments. The 7-segment display shows important information including channel, battery and on/off status and mute level. The controls allow for easy setup, including on/off, channel selection and activation of the Mute function. The 4P mini XLR input connector ensures reliable connection to external microphones. The transmitter is powered by two AA batteries (not included), which ensures a long battery life of over 30 hours of operation.Weighing only 80 g, it is very compact and easy to carry.
GC-80 cable
The GC-80 cable is ideal for wirelessly transmitting audio from a variety of musical instruments, including guitar, bass, and more. On one side it is equipped with a 6.3 mm jack with fixed bend protection, which ensures a reliable and secure connection to your musical instrument. On the other side of the cable is a 4P mini XLR connector with anti-tearing protection that easily connects to the transmitter. This design provides a stable and secure connection that minimizes the risk of signal interruption during performance or recording. Thanks to its high-quality construction and durable materials, the GC-80 cable is suitable for professional and amateur musicians looking for a reliable solution for wireless audio transmission from their musical instruments. The GC-80 cable is black in colour with a length of 80 cm and a weight of 50 g. It is compatible with JTS PT/IN/UF series body-pack transmitters.
Specifications
Characteristics
Features
Connectors
| Code: | APC018 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
