Homematic IP Thermostatic head Evo
Homematic IP Thermostatic head Evo

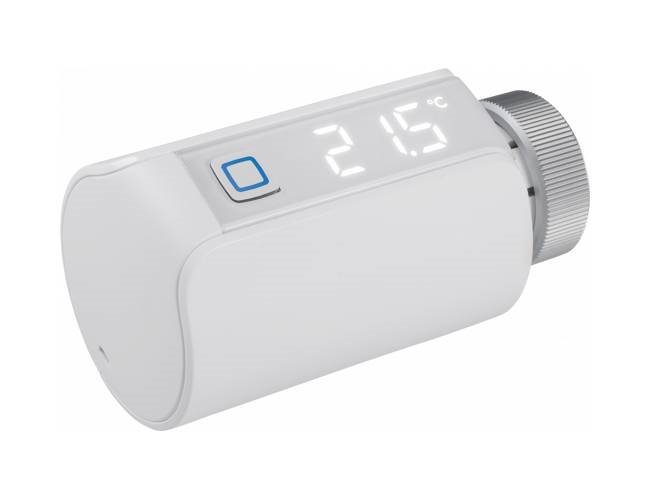

Design thermostatic head Evo with LED display
The right indoor temperature will make a big difference to whether you feel comfortable at home or in the office. Conventional thermostatic heads are usually not the solution because they cannot optimise your individual needs. This is just one of the many reasons to get the Homematic IP Evo HmIP-eTRV-E smart thermostatic head for heating automation. As part of the Homematic IP smart home system, you can control the device using a mobile app and you will be pleased to know that all communication is encrypted on servers located in Germany to ensure the security of user data.
Smart Heating with the RED DOT 2021 Design Award Winner
Evo is a combination of modern design (winner of the Red Dot Design Award 2021) and the evolution of technology. The clever thermostatic radiator head combines simple and modern design with German precision and virtually noiseless temperature control to provide an unrivalled solution for even the most demanding customers. With its minimalist and ergonomic design, intuitive operating concept and uncompromising quality, this thermostatic
head with the Homematic IP smart home icon.
- Configure and control heating in your home with up to 30% instant savings on energy costs.
- Voice control with Google Assistant and Amazon Alexa.
- Powered by AA batteries, it will last for approximately 2 years of operation.
- Control via the Homematic IP mobile app in Czech localization.
- Secure wireless communication with AES-128 encryption.
- Simple mounting on radiator bodies.
Thermostatic head Evo - The evolution of smart heating
If you've decided to opt for intelligent heating control and instant energy savings then you've made the right choice. The Evo HmIP-eTRV-E wireless thermostatic head from the Homematic IP range with back-lit LED negative display is the ideal solution. The Evo thermostatic head is designed to control and monitor the hot water supply to the radiator body. The temperature change can be changed manually, controlled via one of the Homematic IP wall thermostats or remotely controlled and automated using a mobile app in combination with the Homematic IP Smart Home HmIP-HAP Central Unit.
Saves up to 30% on energy costs
The hi-tech solution of the Homematic IP thermostatic controllers consists mainly of a unique algorithm and a stepper motor control mechanism. Replacing conventional thermostatic radiator heads, they control room temperature and the heating process according to individual needs, resulting in immediate savings and energy cost reductions of up to 30%. Each Homematic IP head has an integrated temperature sensor. Up to three adjustable heating profiles: the temperature can be controlled in time intervals (up to 6 heating phases per day with individually adjustable temperature).
Use of all functionalities in combination with the central unit
The system becomes truly sophisticated in the combination of the thermostatic head, the HmIP-SWDx window and door sensor and the HmIP-HAP Central Unit, where all system functionalities including intelligent heating prediction for maximum energy savings can be fully utilized. In the mobile app (for Android and iOS in CZ), you can set up to several weekly temperature profiles, different daily temperature increase or decrease modes (per day and room) or a variety of advanced scenarios.

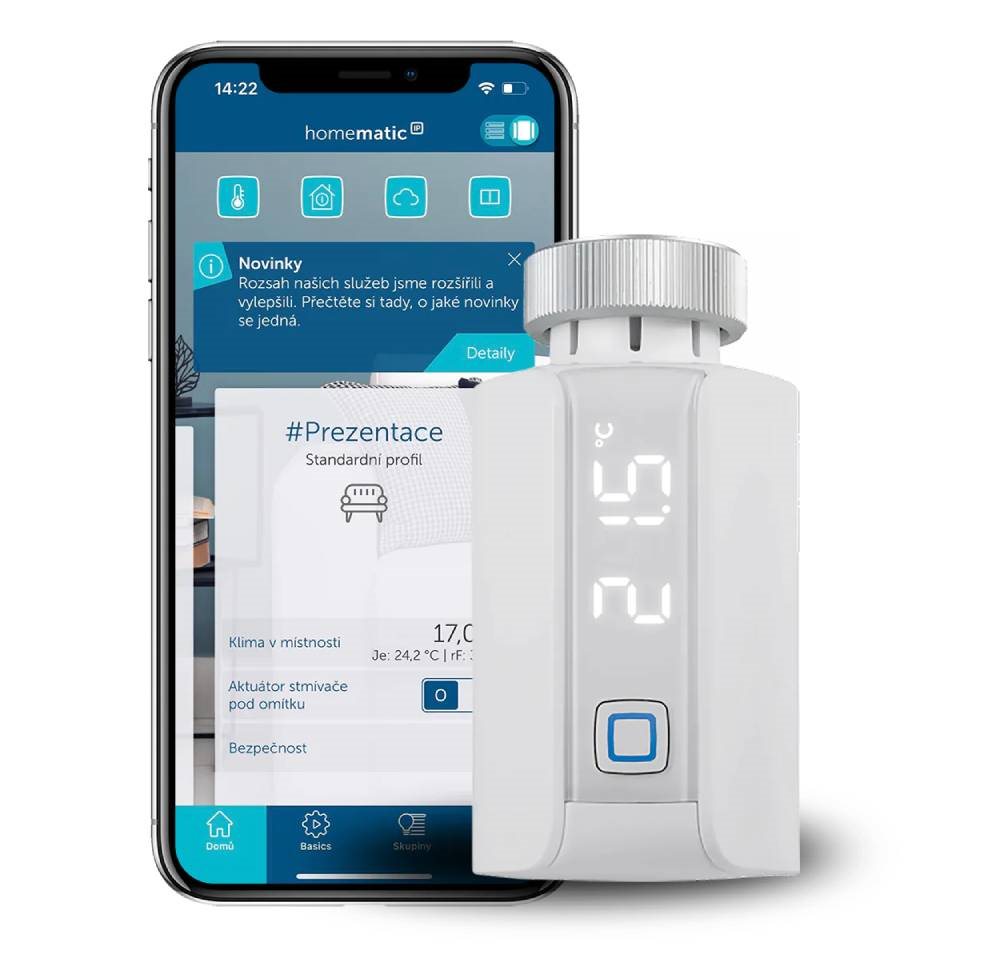

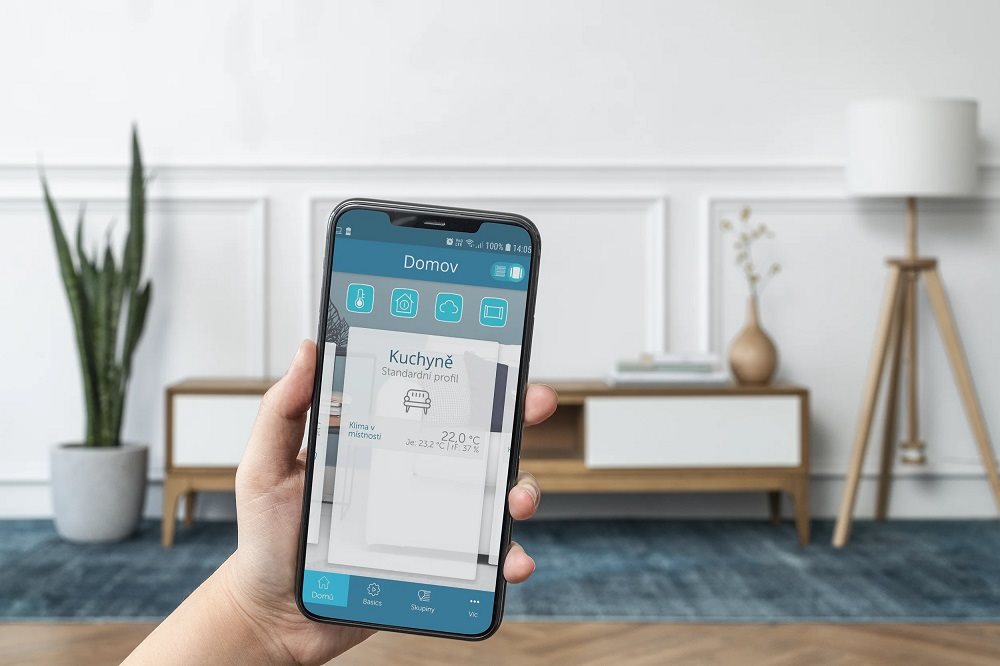

Homematic IP is controlled by an application with a Czech interface
In Homematic IP, everything is at your fingertips. It has Czech localization, is free, intuitive and clear. With the smartphone app, you can handle even seemingly complex configurations in just a few minutes. Once connected to the central unit, it becomes the smart hub of your installation, allowing you to control and configure the management of your entire smart home, whether you're at home, at work or on the move. The free mobile app requires no registration and is designed for Android and iOS smart devices. It is there to constantly adapt to modern trends, optimise and evolve according to your wishes and needs.
Voice control
In addition to manual control and remote control via a mobile app, the Homematic IP smart home system, of which the thermostatic heads are part, also offers voice control support and communication with Google Assistant, Amazon Alexa and Home Connect Plus technology. For secure, stable and reliable communication between devices, the system has its own unique radio technology with encrypted security, making it the first smart home system whose protocol, IT and data security are regularly tested and certified by the independent VDE institute.
Uninterrupted sleep
Unlike most conventional motorised heads, Homematic IP thermostatic heads can be installed in bedrooms and children's rooms without disturbing your peaceful sleep. Thanks to its quiet operation and the technology of the muffled housing design, you can fall asleep without worry and enjoy undisturbed sleep.
Easy installation and maintenance-free operation

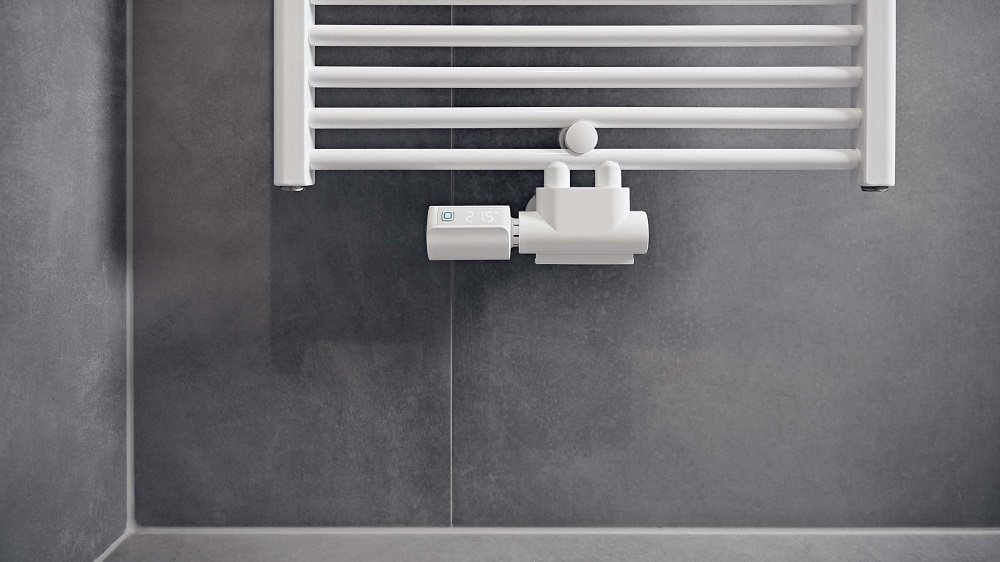

Homematic IP thermostatic heads can be directly mounted on radiator bodies with M30 x 1.5 mm thread or with the use of the supplied adapters for most standard types of radiator valves (RA, RAV and RAVL - included). Simply remove the existing head and replace with the Homematic IP head. All heads are equipped with built-in valve protection against limescale and frost and are thus ingeniously protected against the risk of calcification or freezing of the radiator valve.
Key features of thermostatic head Evo - HmIP-eTRV-E
- Evolutionary thermostatic head awarded the Red Dot Design Award 2021
- Automated room temperature control with instant savings and up to 30% reduction in energy costs
- Backlit LED negative display
- Quick and easy installation without the need to drain water or interfere with heating pipes
- Support for direct mounting on radiator bodies for most standard radiator valve types
- Nut made of polished aluminium for direct mounting on all common radiator valves with M30 thread
- Quiet operation - suitable for installation in bedrooms and children's rooms
- Wireless power supply with two AA 1.5V batteries for up to 2 years of operation
- Up to 3 adjustable heating profiles, 6 phases and 13 changes per day
- Built-in automatic protection against liming and freezing of the valve
- Voice control support (Amazon Alexa, Google Assistant)
- Home Connect Plus support
- Can be used for stand-alone operation, however smart functions are only available in conjunction with the HmIP-HAP central unit
- Package contents: 1× thermostatic head HmIP-eTRV-E, set of 3 valve adapters (RA, RAV and RAVL), 2× alkaline AA batteries, mounting material, Czech instructions
Specifications
Type
Features
Special functions
Input voltage
Indicator
Use
Connectivity
Connection
Use
Valve type
| Code: | Home22_02 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
SAFE HOME europe s.r.o., Čechova 1005/4, 750 02 Přerov, [email protected], Telefon: +420 581 222 262
|
