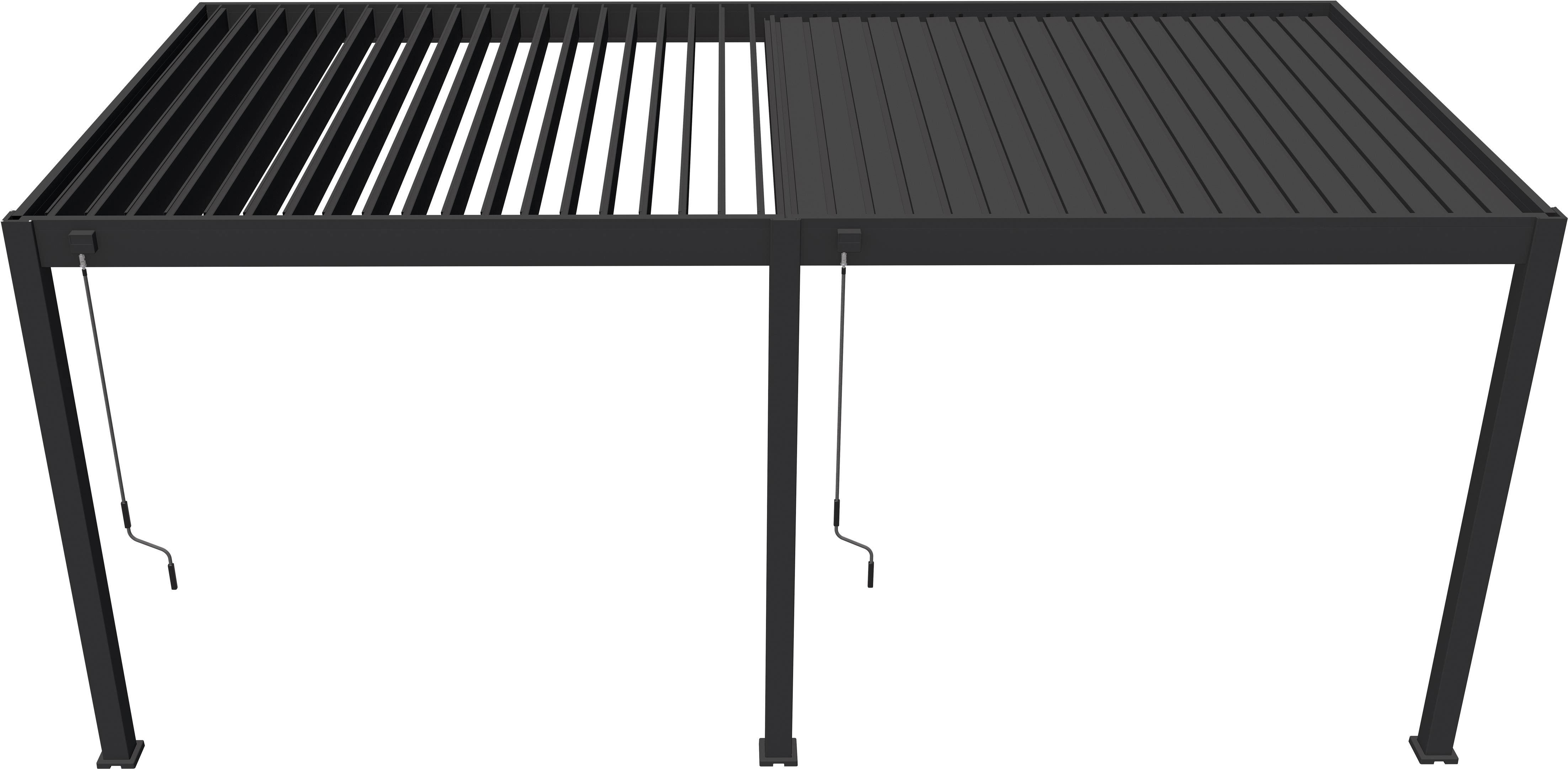

ROJAPLAST Bioclimatic pergola Intro Plus 6 x 3m, in wall, aluminium
ROJAPLAST Bioclimatic pergola Intro Plus 6 x 3m, in wall, aluminium
The premium aluminium bioclimatic garden pergola installed in the wall, measuring 6 x 3 metres, is the ideal roof for your outdoor seating area. Very strong and stable construction in anthracite RAL 7016, matt finish, suitable for any space. The pergola is made of high-quality aluminium, which is treated with powder paint, which guarantees resistance to weathering. With a bioclimatic pergola you can enjoy maximum sunlight and protect yourself against these rays by adjusting the slats correctly. The pergola also allows easy ventilation of the space and in turn a perfect shelter in case of rain. Thanks to the great features, detailed workmanship and modern design of the bioclimatic pergola, you will use the outdoor seating area much more often.
Key features of the aluminium bioclimatic pergola wall ROJAPLAST Intro Plus, 6 × 3 m
- 38 double aluminium slats
- More flexible blades with rotation angles from 0° to 135°
- Raised top rail of aluminium profile - the slats are not visible even when turning
- Integrated drainage system
- All-aluminium construction
- No visible fasteners, screws - smooth construction
- TÜV certification
Variable shading thanks to rotatable slats
38 adjustable swivel double slats (two layers with hollow interior) protect you not only from the sun but also from the rain. Lamels can be rotated from 0° to achieve a completely closed roof up to 135°, giving you great mobility and the ability to shade the sun from any side. The slats can simply be operated manually using the handle. It is designed to be easily tilted to prevent scratching the pergola structure when turning the slats. At the same time, the handle is positioned on the structure so that when adding screens or panels to the pergola, it does not prevent easy handling of these accessories.
Water and snow are not a problem
Water is drained by a unique drainage system directly inside the structure. The slats are capable of draining really large amounts of water up to 17 l/m² per hour. During the winter months the slats should be left in a vertical position. Even so, the slats are capable of supporting a 30-40 cm layer of snow, which represents a load of approximately 50 kg/m². However, this load cannot be long-term. The sturdy post has dimensions of 116 × 116 mm, the installation requires a post foot of 160 × 160 mm. The foot is made of 8mm thick steel and is also covered by an aluminium cover with an integrated drainage system. The raised aluminium profile with added top rail hides the slats so that they are not visible from the side view and are flush with the profile.
Side shading can also be added
The pergola can be supplemented with a front screen. ROJAPLAST offers three-metre screens with aluminium construction and textile filling, which provide protection from the wind. The pergola can also be supplemented with shading panels with fixed or folding horizontal slats for additional privacy and shading. The panels can be used on all sides of the pergola and in the case of side anchoring, the panel frame can be drilled into the wall.
TÜV CERTIFICATION
The pergola has been tested and certified by TÜV, which is a sign of quality, safety and reliability.
- Safety - TÜV focuses on testing products to ensure their safety for users.
- Quality - Products and production processes must meet specific quality standards, which guarantees a high level of quality.
- Compliance with standards - The product must meet specific national and international standards and legislation.
- Reliability - Certification is a sign that a product or service is reliable and safe for long-term use.
Specifications
Type
Material
Dimensions and weight
Features and functions
| Code: | ROJpls12 |
| Warranty: | 24 months |
| Manufacturer information |
ROJAPLAST s.r.o., Bohouňovice I, čp. 79, 280 02 Kolín, [email protected]
|
