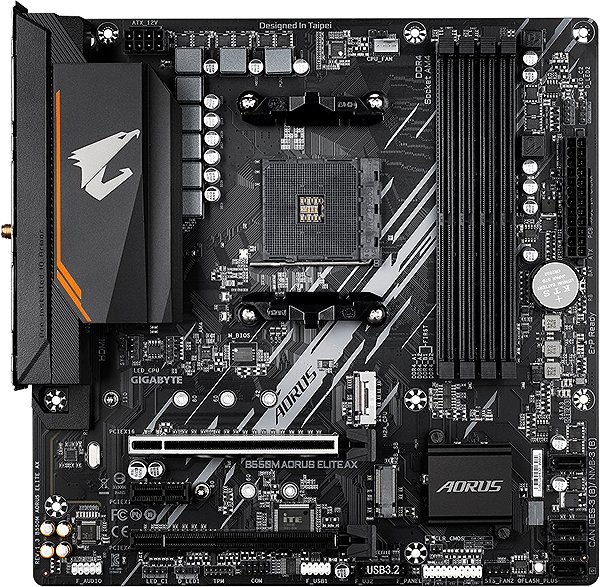

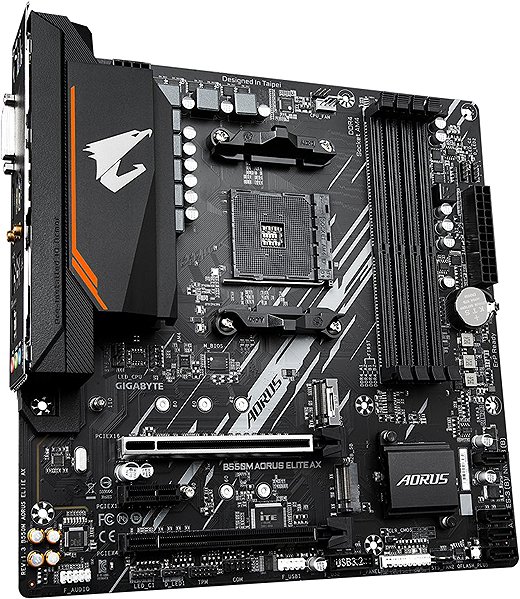

GIGABYTE B550M AORUS ELITE AX
Don't like the alternatives?
Choose from the full offer
GIGABYTE B550M AORUS ELITE AX
The GIGABYTE motherboard is built using the AMD B550 chipset, which has the AMD AM4 socket for the CPU. As is usually the case, it has a sound card which will handle 8,0 channels. You will be able to use its network connection module with the practical Wi-Fi connection support. It combines modest dimensions with a host of connectors to create an exemplary home PC setup. If you want to build a PC with this motherboard, you will require a compatible mATX (Micro ATX) format computer case.
GIGABYTE B550M AORUS ELITE AX Motherboard Key Features
- AMD AM4 socket and the AMD B550 chipset
- GIGABYTE B550M AORUS ELITE AX format: mATX (Micro ATX)
- Integrated audio card for 8,0 channels
- DDR4 computer RAM type with DIMM design
- The motherboard can hold 4 × dual-channel memory modules
GIGABYTE B550M AORUS ELITE AX Motherboard Connectivity
Computer RAM is extremely important, so this GIGABYTE motherboard has 4 RAM slots. It's designed for DDR4 type DIMM RAM. You can attach them in dual-channel mode. This motherboard is compatible with models with a clock speed of up to 4733 MHz.
GIGABYTE B550M AORUS ELITE AX Connectors
This motherboard accommodates 2 graphics cards with PCI Express 16x slots. The internal interface includes a total of 2 popular M.2 slots.

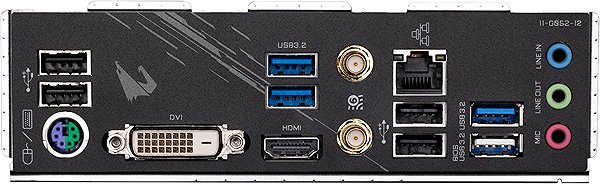

- External communication interfaces: DVI, Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1 and HDMI 2.1
- Supported internal interfaces: COM header, RGB LED Header, TPM header, USB 3.2 Gen 1 bracket, USB 2.0 bracket, M.2 PCIe 3.0, PCIe 4.0 x16, PCIe 3.0 x4, Serial ATA III and M.2 PCIe 4.0
- Maximum supported RAM clock speed: 4733 MHz
- Serial ATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
| Code: | AGb550a10 |
| Links: | Producer's Website: |
| Manufacturer information |
SIL Servis Partner a.s., Těšínská 1970/56, 710 00 Slezská Ostrava, Czech Republic, +420 552 301 141, [email protected] Gigabyte, founded in 1986, is an irreplaceable player in the field of computer components. They put great emphasis on key technologies and the strictest quality standards. The company produces a wide range of basic computer components such as motherboards and graphics cards, but also have many computer peripherals, laptops, tablets, desktops and even network solutions and servers on offer. Recently they also introduced a line of Gigabyte mobile phones.
|
