CUDY 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports
Price Guarantee

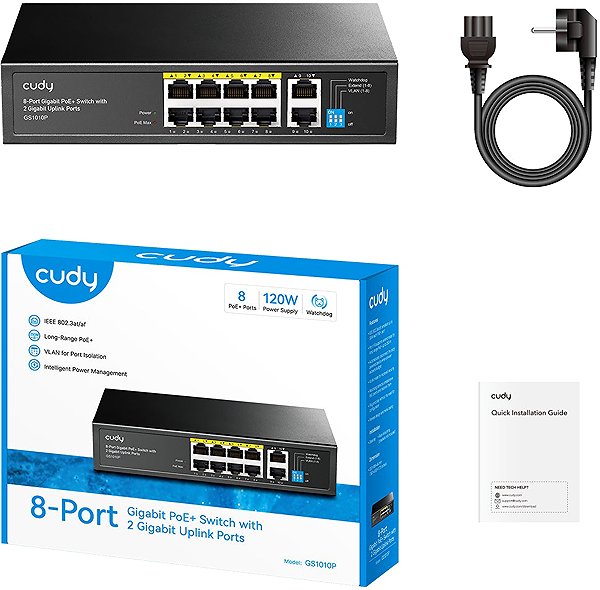

CUDY 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports
8-port gigabit PoE+ switch with two uplinks for business networks
The CUDY gigabit switch features 8 PoE ports with speeds of 1Gbps and two gigabit uplink ports, offering a compact and reliable network expansion solution. It is ideal for demanding operations and corporate infrastructure management where you need to transmit data and power simultaneously over a single Ethernet cable. Compliant with the IEEE 802.3af/at standard, the CUDY switch delivers up to 30W per port with a total PoE budget of up to 120W, letting you power IP cameras, Wi-Fi access points, VoIP phones, or digital signage without separate adapters. Two additional gigabit uplink ports provide seamless connection to your backbone network or router. The switch features intelligent power management to help maintain stable network operations. Using the Default / VLAN / Extend mode switch, you can easily customise network behaviour for your specific installation. VLAN mode isolates individual ports for enhanced network security, while Extend mode extends data transmission up to 250 metres, making it ideal for camera installations. The PoE Watchdog function also automatically restarts a port if the connected device stops communicating. A robust metal casing with shielded ports and protection against electrostatic discharge and surges ensures stable operation even in challenging environments. This makes the CUDY switch the perfect choice for offices, schools, shopping centres, surveillance systems, and internet service providers requiring a reliable PoE switch with advanced management features.
Key features of the CUDY 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports
- Eight Ethernet ports with speeds of 1Gbps and IEEE 802.3af/at support
- Total PoE power budget of up to 120W
- Two gigabit uplink ports for backbone network connectivity
- PoE Watchdog function to automatically restart a port in case of failure
- VLAN mode to isolate ports for enhanced network security
- Automatic reduction of power consumption when ports are idle
- Extend mode to enable data transmission up to a distance of 250 metres
- Robust metal chassis with shielded ports and ESD and surge protection
- Flexible installation options for desktop or rack mounting
Reliable PoE power for non-stop operation
PoE+ power of up to 30W per port
The Cudy switch supports IEEE 802.3af/at (PoE+) standards and provides up to 30W of power per port, letting you power devices directly through the Ethernet cable. This is ideal for connecting Wi-Fi access points, IP cameras, VoIP phones, or digital signage without the need for separate power adapters.
Automatic PoE port recovery
The PoE Watchdog function monitors the activity of individual ports to help keep connected devices up and running. If a connected device, such as an IP camera or Wi-Fi access point, stops transmitting data for approximately 5 minutes, the switch automatically restarts the respective PoE port to restore operation without requiring manual intervention.Intelligent PoE power management
The CUDY switch offers intelligent power management to help maintain stable network operations. A PoE Max LED indicator alerts you when power consumption reaches approximately 90% of the available PoE budget, while status LEDs on individual ports show active power delivery to connected devices. If the power budget is exceeded, the switch automatically disconnects the last connected device to keep the rest of the network running stably.
Preset modes
VLAN mode ensures a more secure network
The VLAN Mode function on the CUDY switch enables efficient port isolation, which significantly increases network security. In this mode, downlink ports can only communicate with uplink ports and not with each other. This makes it the ideal solution for offices, business premises or public spaces where you need to separate individual devices such as computers, printers or IP cameras to prevent unwanted access or data sharing between them.
CUDY switch in Extend mode delivers a reliable connection up to 250 metres
With Extend mode, the CUDY switch lets you extend the transmission distance of ports up to 250m, which significantly simplifies installation in larger spaces. It is the ideal solution for locations where you need to connect remote IP cameras, access points or other devices without the need for additional active components.
Durable design for stable network operation
Stable operation even in demanding network installations
The CUDY switch features enhanced EMC protection to help minimise downtime caused by electrostatic discharges or surges. It has ESD protection up to 6kV on contact and 8kV in the air, while surge protection reaches 2kV (DM) and 4kV (CM) on power supply and up to 4kV on RJ45 ports. This level of protection makes the PoE switch ideal for demanding environments where maximum network infrastructure reliability is essential.
Durable construction with shielded ports
The switch features shielded Ethernet ports made of nickel-plated copper alloy, which help minimise interference and ensure stable data transmission. This lets you reliably run network infrastructure even in environments with higher electromagnetic interference. In addition, the robust SPCC metal chassis ensures high durability and provides stable operation even during long-term deployment in professional network installations.
Versatile use of the CUDY switch
With its combination of gigabit ports, PoE power delivery and advanced management, the CUDY switch is suitable for a wide range of deployments. Use it to build CCTV systems, office networks, Wi-Fi infrastructure in schools or campuses, or to connect access control systems and digital signage. With PoE power and reliable operation, it helps you easily build a stable and clearly managed network infrastructure.
Standard 1U size for rack installation
The CUDY switch features an integrated power supply, which simplifies installation and eliminates the need for an external adapter. Thanks to its standard 1U size, you can easily install it in rack cabinets to create a clean and professional network infrastructure.
Specifications
Type
Functions
Ports
Number of LAN ports
PoE properties
Features
Speed
Dimensions
Material
Operating temperature
Weight
Power outlet type
| Code: | CUD25k77 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
