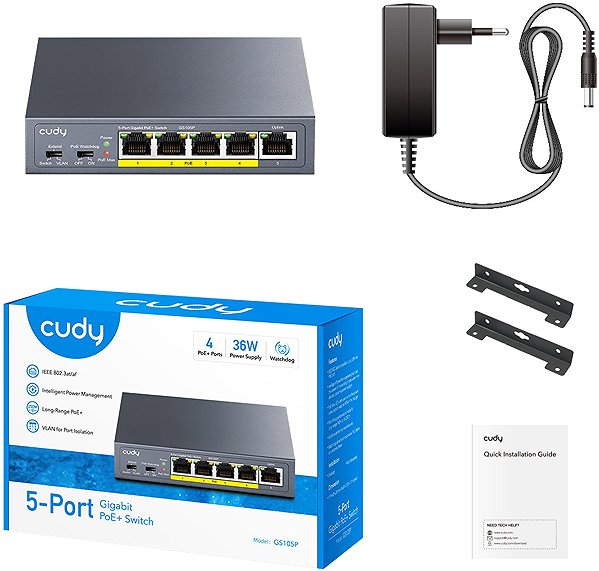

CUDY 5-Port Gigabit PoE+ Switch

CUDY 5-Port Gigabit PoE+ Switch
5-port gigabit PoE+ switch for home use
The CUDY 5-port gigabit PoE+ switch with speeds of 1Gbps represents a compact and reliable solution for expanding your network and powering devices via a single Ethernet cable. The CUDY switch offers 4 gigabit PoE ports supporting the IEEE 802.3af/at standard and one gigabit uplink port, with each PoE port providing up to 30W of power. A total PoE budget of 36W lets you easily power devices such as IP cameras, Wi-Fi access points or VoIP phones without the need for separate power adapters. Thanks to plug-and-play installation, you can get the switch up and running in moments, while the practical Default / VLAN / Extend mode switch lets you easily toggle between enhanced security or extending the range up to 250m. The switch also features a PoE Watchdog function, which automatically restarts the port if the connected device stops communicating. A robust metal chassis with quiet passive cooling ensures stable and silent operation, while the compact design allows for desktop placement or wall mounting, making the CUDY switch a perfect fit for your home network, office or smaller surveillance system.
Key features of the CUDY 5-Port Gigabit PoE+ Switch
- Offers a total of 5 Ethernet ports with speeds of 1Gbps
- Provides a total PoE budget of up to 36W
- Gigabit uplink port connects to a router or another switch
- Features 4 PoE ports supporting the IEEE 802.3af/at standard and up to 30W per port
- PoE Watchdog function automatically restarts the port in case of failure
- VLAN mode isolates ports for enhanced network security
- Automatically reduces power consumption when ports are idle
- Extend mode allows data transmission up to a distance of 250 metres
- Robust metal chassis with quiet passive cooling ensures silent operation
- Allows flexible installation on a desktop or wall
Reliable PoE power for non-stop operation
Smart PoE power management
The CUDY switch features smart power management that helps maintain stable operation of the entire network. The PoE Max LED indicator alerts you when approximately 90% of the available PoE power is reached, while status LEDs for individual ports display active power delivery to connected devices. If the available power budget is exceeded, the switch can automatically disconnect the last connected device to keep the rest of the network running stably.
Preset modes
VLAN mode ensures a more secure network
The VLAN Mode function on the CUDY switch enables efficient port isolation, which significantly increases network security. In this mode, downlink ports 1 to 16 can only communicate with uplink ports and not with each other. This is an ideal solution for offices, business premises or public spaces where you need to isolate individual devices, such as computers, printers or IP cameras, to prevent unwanted access or data sharing between them.
CUDY switch in Extend mode provides a reliable connection up to 250 metres
Extend mode allows the CUDY switch to extend the transmission distance of the ports up to 250 metres, which significantly simplifies installation in larger spaces. This is an ideal solution for locations where you need to connect remote IP cameras, access points or other devices without having to use additional active network elements.
Durable construction for stable network operation
Stable operation even in demanding network installations
The CUDY switch offers enhanced EMC protection, which helps minimise network downtime caused by electrostatic discharges or surges. It features ESD protection up to 6kV for contact and 8kV for air, while surge protection reaches 2kV (DM) and 4kV (CM) on the power supply and up to 4kV on the RJ45 ports. This protection makes the PoE switch suitable even for demanding environments where maximum reliability of the network infrastructure is critical.
Durable design ready for wall mounting
The robust metal chassis provides reliable protection for your network infrastructure and ensures stable operation even during long-term deployment. You can also easily mount the CUDY switch on a wall using the included mounting kit to create a neat and efficient setup.
CUDY switch offers easy installation
The CUDY switch offers simple plug-and-play connectivity, so you can start using it without any complex configuration. Just connect your router to the uplink port, client devices to the PoE ports, and plug in the power supply – the switch is immediately ready for use.
Compact design for installation enclosures
Thanks to its compact dimensions of 28×119×85mm, you can easily place the switch inside most installation or distribution enclosures. This helps keep cabling neatly organised and greatly simplifies the management of your network infrastructure.
Versatile use of the CUDY switch
The CUDY switch offers a wide range of uses in various types of network installations. Use it to build camera systems, office networks, Wi-Fi infrastructure or smaller business installations where you need to reliably connect and power multiple devices simultaneously. Combining gigabit ports with PoE power, the switch lets you easily create a stable and clean network infrastructure.
Specifications
Type
Functions
Ports
Number of LAN ports
PoE properties
Features
Speed
Dimensions
Material
Operating temperature
Weight
Power outlet type
