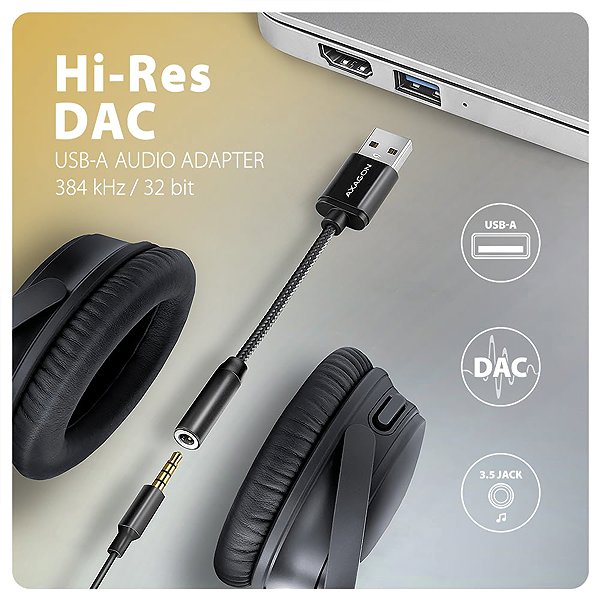

AXAGON ADA-HA, Hi-Res DAC audio adapter, 384kHz/32bit stereo, USB-A to 3.5mm jack
Better quality sound via USB-A
The AXAGON ADA-HA Hi-Res DAC AUDIO ADAPTER is a practical accessory for a laptop or desktop computer with a USB-A connector. It functions as an external USB sound card with a DAC converter and delivers higher quality sound than a built-in audio jack. It supports Hi-Res Audio with sampling up to 384kHz/32 bit, ensuring a clean and detailed listening experience.
Key features of the AXAGON ADA-HA adapter
- Integrated DAC converter supports top-tier sampling up to 384kHz/32 bit
- Support for lossless formats (DSD, FLAC, WAV, WMA, APE or ALAC)
- Serves as an upgrade for average integrated sound cards in laptops or as a replacement for a non-functional audio jack
- Input to PC, audio output/input 1× 3.5mm TRRS jack (4-pole)
- Automatically detects CTIA and OMTP microphone wiring standards
- Durable design:
- 10cm long cable is protected by a sturdy nylon braid
- Compact design with small dimensions and low weight
- Plug and Play solution for easy installation
- The adapter can be safely connected and disconnected while the computer is running
AXAGON ADA-HA replaces a non-functional sound card
The adapter is suitable for laptops with a headphone jack of average sound quality, as well as for devices where the sound card is missing or not working. The integrated USB DAC converter improves sound quality when listening to music, watching films and during online calls.
AXAGON ADA-HA is ideal for music, films and streams
The AXAGON external sound card is ideal for playing lossless audio formats such as DSD, FLAC, WMA, WAV, APE, AAC or ALAC. You can also enjoy maximum sound quality when listening to music via Spotify, Apple Music, YouTube Music or Amazon Music Unlimited. The adapter is also useful for watching streaming services like Netflix, Disney+, HBO Max, Amazon Prime or Apple TV+.
Headphones, microphone and online communication
The ADA-HA also serves well as a replacement for a non-functional original sound card in a laptop, adding a headphone output and microphone input to the computer. You can easily connect headphones, a headset or active speakers to it and use it for communication services like WhatsApp, Messenger, FaceTime, Zoom, MS Teams, Google Meet or Discord.

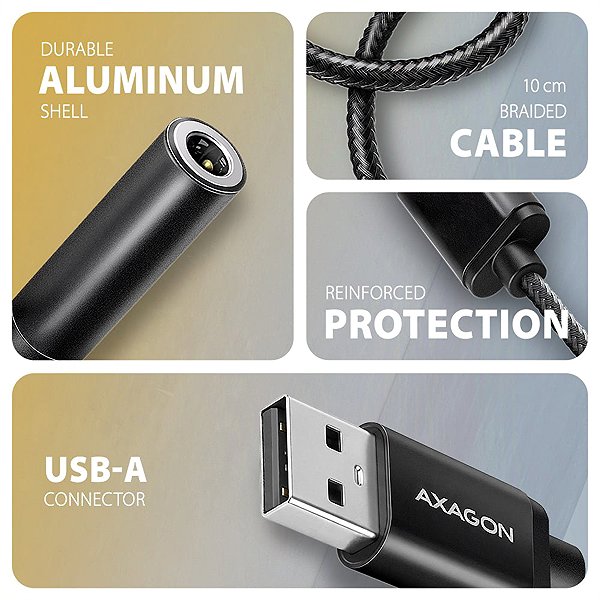

3.5mm jack and durable braided cable
A stereo 3.5mm 4-pole TRRS jack connector with automatic detection of CTIA or OMTP standards is used for connecting headphones. The strength of the 10cm long cable is supported by a durable nylon braid.
Plug and Play with no driver installation
Installing the AXAGON ADA-HA external sound card is very simple thanks to Plug and Play and requires no driver installation. The adapter also supports Hot Plug, so it can be connected even while the device is in operation.
Input:
• 1× USB 480Mbps male connector (USB 2.0)
• USB Type-A male connector
Audio output:
• 2-channel analogue 32-bit output (3.5mm TRRS stereo jack)
• Stereo output for headphones or active speakers
Audio input:
• Analogue 16-bit input (3.5mm jack)
• Microphone input and input for recording an analogue signal
Sampling rate, resolution and noise of the output converter (DAC):
• Analogue - 44.1–384kHz @ 16/24/32 bit (PCM) for playback
• Signal-to-noise ratio (Output SNR) ≥ 101dB (0 dBFs, 1kHz, A-weighted)
• Total harmonic distortion (Output THD+N) ≤ -85dB (0 dBFs, 1kHz)
Sampling rate, resolution and noise of the input converter (ADC):
• Analogue - 48kHz @ 16 bit (PCM) for recording
• Signal-to-noise ratio (Input SNR) ≥ 90dB (100 mVrms, 1kHz, A-weighted)
• Total harmonic distortion (Input THD+N) ≤ -85dB (80 mVrms, 1kHz)
Other features:
• Built-in headphone amplifier 27.5mW @ 32 ohm
• Connected headphone impedance range 16–300 ohm
• Frequency range 20Hz–20kHz
• Support for lossless formats: DSD64, DSD128, FLAC, WMA, WAV, APE, AAC, ALAC
• Easy installation thanks to full Plug and Play support
• Hot Plug support lets you connect the device while it is running
• 3.5mm jack, TRS, TRRS (CTIA and OMTP auto-detection) compatible
• Complies with USB Audio Device Class specification v1.0 / 2.0
• Adapter is powered via the USB bus (bus power) - no additional power supply needed
• Miniature dimensions 25×7mm, cable length 10cm
• Weight only 8g
Sound card settings in Windows let you adjust:
• Speaker volume and balance
• Microphone monitoring settings
• Advanced speaker properties: virtual surround sound
• Sampling rate and bit depth settings for playback
Supported operating systems:
• Windows 10/11 and newer, macOS, Linux
Package contents:
• USB-A audio adapter
• Packaged in a foil pouch with a hanging hole
Specifications
Type
Analog outputs
Features and functions
Dimensions and weight
Use
Male connectors
Connector
Cable construction
Features
Characteristics
Inputs
Colour
Frequency range
Dimensions and weight
Inputs and outputs
| Code: | AG310f |
| Warranty: | 36 months |
| Links: | Producer's Website: |
