AlzaErgo FXL10B Frame XL Fixed 60"-100"
Price Guarantee
AlzaErgo FXL10B Frame XL Fixed 60"-100"
Fixed TV wall mount for oversized TVs
Our robust wall mount lets your TV blend seamlessly into the wall. The AlzaErgo FXL10B Frame XL TV mount features a strong, durable, low-profile, open design that keeps your TV just 32mm from the wall while allowing unrestricted airflow and easy access to cables. An automatic click-in spring lock and two quick-release cords make mounting your TV incredibly simple.
What size TV
can you mount?
The AlzaErgo FXL10B Frame XL fixed TV mount fits flat and curved 60–100" TVs weighing up to 100kg. To guarantee its exceptional quality, we have tested this mount to four times its maximum load capacity.
Everything you need in the box
As well as the AlzaErgo FXL10B Frame XL mount itself, the package contains everything required for a hassle-free installation – a manual, a mounting kit with spacers, and Fischer wall plugs.
AlzaErgo product family
We design AlzaErgo products to meet the highest standards, helping you work and relax in healthier, more comfortable ways. We guarantee top-tier quality for every single AlzaErgo product and back them up with premium services. If a defect occurs in most of our products, we offer an immediate replacement for a new unit at any of our branches.
Detailed
specification
- Simple design for easy installation
- Fits most 60–100" TVs up to 100kg
- Open-back design for improved airflow and easy cable access
- Automatic click-in spring lock and two quick-release cords
- Low-profile design places the TV just 32mm from the wall
- All-in-one packaging includes everything needed for installation
- Folding design saves space when not in use
- Compatible with curved TVs
- Material: steel
- Finish: powder coating

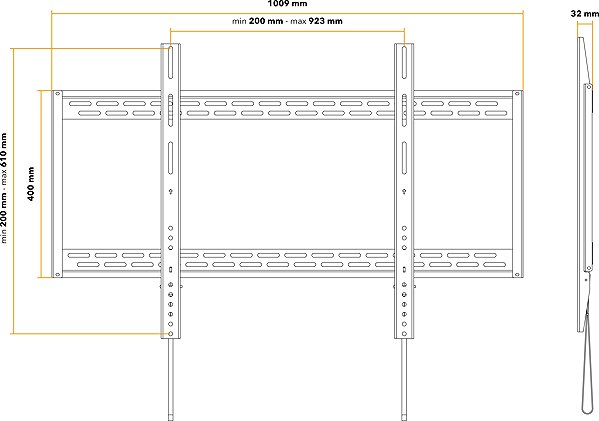

- Dimensions: 1009×630×32mm
Whole description
Specifications
Colour
Colour
Black
Type
Usage
Wall-mounted
Construction
Fixed
Suitable for installation into
Walls, Column, Concrete, Bricks, Wooden beams
VESA mounting
200×200, 200×300, 200×400, 300×200, 300×250, 300×300, 300×400, 400×200, 400×250, 400×300, 400×400, 500×200, 500×300, 500×400, 500×600, 600×200, 600×300, 600×400, 600×500, 600×600, 700×400, 700×500, 800×400, 800×500, 800×600, 850×400, 900×265, 900×350, 900×600, 300×600, 400×600
Min. TV diagonal
60 "
Max. TV diagonal
100 "
Features
Min. distance from wall
3.2 cm
Max. load capacity
100 kg
Width of installation plate
1,009 mm
Equipment
Equipment
Mounting kit, FISCHER wall plugs
TV screws included
M4×14, M6×14, M6×30, M8×30, M8×50
Wall screws included
ST8,0×90
Anchors included
SX10×50
Needed for assembly
Screwdriver, Pencil, spirit level, Cable detector, Drill (depending on installation method)
Holder weight
Holder weight
4.56 kg
