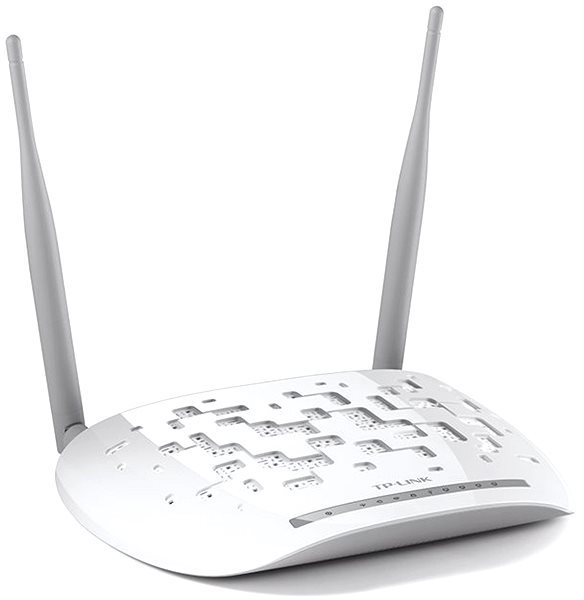

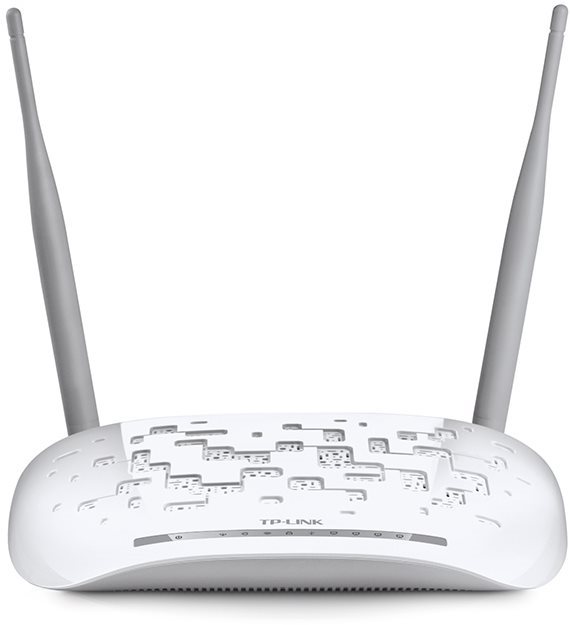

A wireless router TP-LINK TD-W9970B is a great solution for all offices or households where users want high-speed connectivity. File sharing and Internet surfing can be done both via cable and air. The router supports the VDSL2 technology but is also backward compatible with ADSL2+/ADSL2/ADSL and WiFI 802.11b/g/n with data transfer rates of up to 300Mbit/sec. It will become a perfect tool for anyone who wants to stream HD videos, play online games, make phone calls, and more.
A multifunction USB port
A multifunction USB 2.0 port allows users to share files between several devices and computers on their home network, or via an FTP server and on a public network. So you will always have your files available. If you have a printer that does not have a network connection port or WiFi wireless technology, the USB modem allows you to print from any computer on the network.
Remote connection
More demanding users will be attracted by the IPsec support for so-called VPN tunnels that provide remote connections in a private network, as well as secure access to data according to local users. The router supports 10 VPN tunnels.
Parameters and Specifications:
Interface:

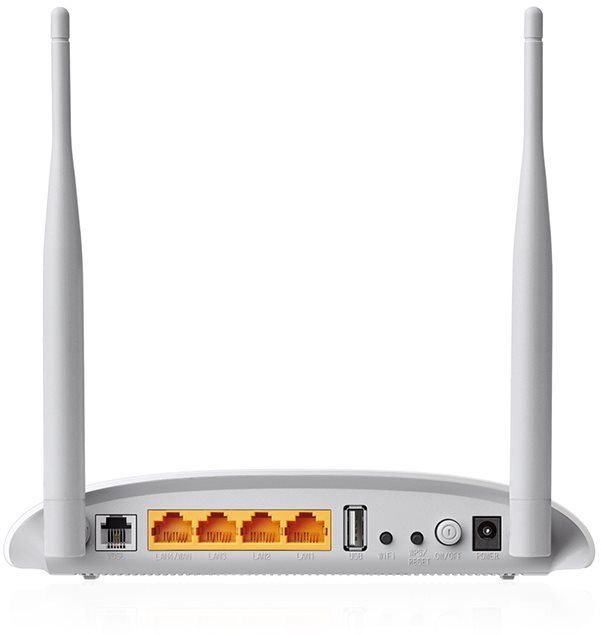

4x RJ-45 (10/100Mbps)
1× RJ11 Port
1x USB 2.0
Dimensions:
195 × 130 × 36 mm
IEEE standards:
IEEE 802.11b, 802.11g, 802.11n
ADSL Standards:
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
Standards ADSL2 ITU-T G.992.3 (G.dmt.bis)
Standards ADSL2 + ITU-T G.992.5
Antenna:
Antenna type: Omnidirectional, Fixed
Antenna gain: 2× 5dBi
Wireless network features:
Wireless standards: IEEE 802.11b, 802.11g, 802.11n
Frequency: 2,400 - 2,4835 GHz
EIRP <20dBm (EIRP)
Wireless security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Wireless MAC Filtering
USB sharing:
Storage Sharing
FTP Server
Media Server
Print Server
Software features:
Quality of service: WMM, Bandwidth Control (IP QoS)
Port Redirection: Virtual Server, Port Triggering, UPnP, DMZ, Manage Control
VPN Passthrough: PPTP, L2TP, IPSec Pass-through
Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Security:
NAT Firewall, SPI Firewall, MAC/IP/URL Filtering
Management:
Web Based Configuration (HTTP), Remote Management, Telnet Management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP (TR-069)
IPSec VPN:
10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
Package contents:
TD-W9970
Splitter
RJ11 cable
RJ45 cable
Adapter
Manual
