TIM SISTEM NORTH HYDRO ECO L INOX 16 kW, multi-storey cooker for TP
TIM SISTEM NORTH HYDRO ECO L INOX 16 kW, multi-storey cooker for TP

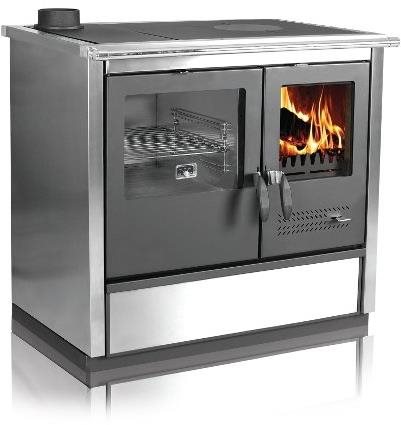

The TIM SISTEM NORTH HYDRO ECO solid fuel range cooker is designed for heating residential spaces and can also be used for cooking and baking. The cooker has a 16-litre sheet metal boiler, which can be easily connected to closed or open central heating systems using the 1" connection. The cooker also includes a hob and a spacious oven with a transparent door fitted with a thermometer. The cooker connects to the chimney via a 150mm diameter top flue, and the ideal fuels are eco-briquettes or dry firewood. The desired heat output of the cooker can be easily set using the rotary control located on the stove frame. The NORTH HYDRO ECO cooker is manufactured and tested according to the European standard EN 13240. To ensure the safe operation of the cooker, a thermal safety valve must be installed, which is not included in the package and must be purchased separately.
Key Features of the NORTH HYDRO ECO Solid Fuel Cooker (16kW), Left, Inox
- Multifunctional NORTH HYDRO ECO cooker with a heat exchanger, designed for heating interiors, cooking, and baking
- The cooker can be connected to a central heating system (closed or open)
- The 16-litre sheet metal boiler has a 1" connection
- The NORTH HYDRO ECO cooker includes a hob and a large oven with a thermometer
- Primary air is regulated automatically by a Rathgeber draught regulator
- The cooker's output can be easily adjusted using the rotary control
- The NORTH HYDRO ECO cooker meets the requirements of the European standard EN 13240
Easy Heating Output Control
The TIM SISTEM NORTH HYDRO ECO cooker is equipped with two air flow regulators (primary and secondary), which allow you to control the intensity of the burn, and thus the intensity of the water heating or the heating of the oven and hob. The primary air is regulated automatically by a Rathgeber draught regulator, while the desired output of the cooker can be easily set using the rotary control located on the stove frame. A manually operated handle for regulating the air supply to the firebox will then help you with lighting the fire.
Overall dimensions of the cooker:
900×600×850mm
Oven dimensions:
350×475×295mm
Nominal output:
20kW
Fuel consumption at nominal output:
1.5kg/h
Boiler volume:
16L
Weight:
150kg
Flue diameter:
150mm
Specifications
Location
Performance
Flue pipe
Features
Maximum log length
Material
Colour
Dimensions
energy class
| Code: | TIMspo01 |
| Warranty: | 24 months |
