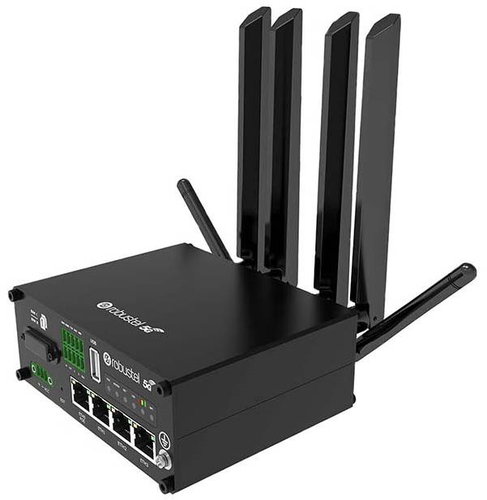

Robustel 5G router R5020-B

Robustel R5020 is a router with support for 5G/4G/3G mobile networks. Uses the RobustOS operating system,which is based on Linux and designed for use in Robustel devices. This system includes network functions and protocols that can be conveniently configured. It therefore provides customers with an excellent user experience. Another benefit is the RCMS cloud, designed to work with RobustOS, uncovers the true potential of Robustel products and expands the operator's ability to monitor, manage and diagnose network devices, minimizing operational overhead. Cellular 5G connectivity is provided by the Quectel RG500Q-AE module, which operates up to 6 GHz and supports a wider range of 5G bands. The maximum speed in the downlink direction goes up to 2.5 Gbps, in the uplink direction up to 900 Mbps. The router can be powered by POE PD.

Key features of Robustel 5G router R5020-B

Applications for use in vehicles

R5020 has achieved E-Mark certification for use in a vehicle. This is a mandatory safety certificate for motor vehicles, systems, components and technical parts of member countries in accordance with European Union directives. Thanks to 5G technology, the router offers a simple and effective solution for increasing the speed of your internet connection using WiFi technology, making it ideal for vehicles that carry passengers. The CCTV (Closed-circuit television) system enables camera monitoring of the area and displaying the footage from the cameras on monitors in Full HD resolution.

Insurance in case of failure

The R5020 LTE 5G WiFi router can be configured to use Ethernet or WiFi as primary internet and failover to 4G/5G in the event of an outage. This can help ensure the operation of establishments such as. shops and offices, ensuring sufficient bandwidth for multiple users. IPSEC, DMVPN and Open VPN protocols can be used to connect to the core networks.

The device is equipped with

The 5G SIM router is equipped with two SIM slots and many other technologies, including. GNSS positioning or internet sharing using Dual Band - WiFi technology (2.412 - 2.472 / 5.15 - 5.825 GHz). At the speeds offered by 5G technology, 4× Gigabit Ethernet ports are also standard. The router also supports communication via RS-232 or RS-485 serial interface.

The Robustel R5020-A router comes with accessories

4× 5G cellular antenna
2× WiFi antenna
Power supply
4 international adapters
Wall mounting bracket
1× 3-pin connector
2× 5-pin connector
Ethernet cable not included.
