Mercusys MS110CMP, 8-Port FE + 2-Port Gigabit
Mercusys MS110CMP, 8-Port FE + 2-Port Gigabit
Mercusys MS110CMP switch – powerful 10-port PoE+ switch for surveillance systems, offices, and accommodation
Easily create a stable network connection for up to 10 devices with the Mercusys MS110CMP switch. Thanks to 8 ports with 10/100Mbps speeds and PoE+ support, you can power IP cameras, wireless access points, or VoIP phones with a single cable, eliminating the need for external power supplies. Each PoE port supports up to 30W, while the entire Mercusys MS110CMP switch provides a total PoE budget of up to 115W for all connected devices. Two Gigabit uplink ports let you connect to the internet and a network video recorder (NVR) at the same time, which is especially useful when setting up a surveillance system in small businesses, shops, or accommodation facilities. In Extend mode, data transmission and power reach up to 250m, making it ideal for installing cameras over longer distances. Isolation mode helps protect your network by separating communication between individual ports, and the PoE Auto Recovery function reliably restores operation if a device goes offline. The durable metal casing ensures efficient cooling and a long lifespan, while Plug & Play installation allows immediate setup without any configuration. Mercusys MS110CMP is a reliable and practical switch for anyone looking to easily build a stable, secure network powered by PoE.
Key features of the Mercusys MS110CMP switch, 8-Port FE + 2-Port Gigabit
- Eight 10/100Mbps ports allow easy connection of network devices
- Mercusys MS110CMP features 2 Gigabit uplink ports for internet/NVR connection
- With PoE+ support, eight ports transmit both data and power through a single cable
- Extend mode allows the Mercusys MS110CMP to power devices up to 250m away
- PoE Auto Recovery enables the Mercusys MS110CMP to reboot unresponsive devices
- Robust metal body dissipates heat efficiently
- Mercusys MS110CMP switch features Plug-and-Play installation with no configuration needed
- Isolation mode increases security by separating traffic between ports
- Mercusys MS110CMP switch is compatible with IEEE 802.3af/at powered devices
8× PoE+ + 2× Gigabit uplink
PoE Auto Recovery
Port isolation
PoE+
Silent design
Plug-and-Play installation
Single-cable data and power transmission via PoE
Use a single Ethernet cable to transmit both data and power simultaneously with the Mercusys MS110CMP. Power over Ethernet (PoE+) technology significantly simplifies the installation of IP cameras, access points, or VoIP phones, without having to worry about power sockets, extension leads, or complex cable management. You save time, space, and money while achieving a cleaner and tidier network infrastructure.

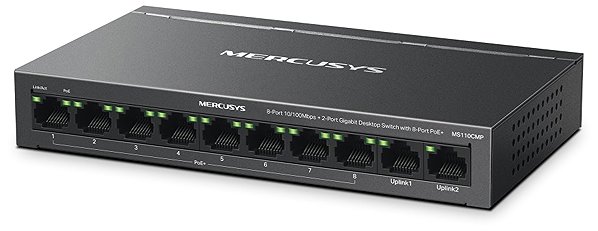

Mercusys MS110CMP offers plenty of ports for all your key devices
With ten 10/100/1000Mbps RJ45 ports, the Mercusys MS110CMP switch provides ample connectivity for demanding network infrastructures. Eight of these ports support PoE+, letting them power devices such as IP cameras, access points, or VoIP phones directly through the Ethernet cable. The remaining two ports function as Gigabit uplinks for internet and network video recorder (NVR) connections, even when Isolation mode is active.
Switch with up to 250m range for distant devices

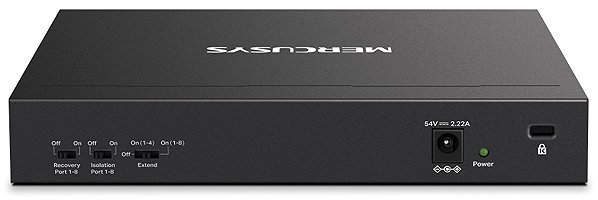

The Mercusys MS110CMP switch lets you power distant devices using Extend mode, which increases the PoE transmission range up to 250m. Simply use the switch to choose whether to activate Extend mode for ports 1–4, or for all 8 PoE ports, and easily power IP cameras or access points in more distant areas of your property. This makes it ideal for securing larger spaces, warehouses, corridors, or outdoor installations.
A more secure network through isolated traffic
Mercusys MS110CMP features a practical Isolation Mode that separates traffic between ports 1–8 with a single flip of a switch. This prevents unwanted communication between connected devices, reduces the risk of eavesdropping or unauthorised access, and protects the network from broadcast storms. In Isolation mode, ports 9 and 10 function as uplink ports for the internet or an NVR, while devices on ports 1–8 can only communicate externally, not with each other.
PoE Auto Recovery ensures non-stop device operation
The Mercusys MS110CMP switch features PoE Auto Recovery, which automatically monitors data activity from powered devices. If a connected device stops transmitting data for a certain period, the switch automatically reboots it to restore operation. This greatly reduces the risk of downtime in surveillance systems and eliminates the need for manual intervention. PoE Auto Recovery is the perfect solution for keeping your network running smoothly, especially in hard-to-reach or remote locations.
Plug & Play installation with no configuration needed
With support for auto-negotiation (10/100Mbps) and auto MDI/MDIX, the Mercusys MS110CMP switch detects the connection and cable type to automatically adapt. You do not need to worry about cable types or manual configuration. Plug & Play setup saves time and effort during every installation.
Compact dimensions and durable construction
The Mercusys MS110CMP switch features a durable metal casing that dissipates heat efficiently, ensuring quiet, fanless operation. Thanks to its compact design (171×98×27mm) and wall-mounting options, you can easily install it in small utility spaces, on an office wall, or inside a distribution cabinet. It is the perfect choice when you need a powerful yet space-saving solution for PoE power delivery.
Specifications
Type
Functions
Ports
Number of LAN ports
PoE properties
Features
Dimensions
Material
Operating temperature
Power outlet type
| Code: | TP25057 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
