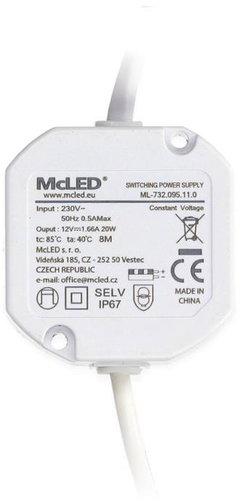

McLED Power supply 20 W, DC12 V/1.67 A, IP67, for wiring box
13.32 €
McLED Power supply 20 W, DC12 V/1.67 A, IP67, for wiring box
The McLED power supply is a stabilised 20W power source, designed for powering LED strips and panels. It operates with an input voltage of 230V AC and provides a safe extra-low voltage (SELV) of 12V DC at the output, with a maximum current of 1.67A. Its compact design allows for easy installation into a standard electrical box. The plastic casing has an IP67 rating.
Key features of the McLED 20W 12V IP67 LED power supply
- Designed for powering LED strips and panels
- Provides a stabilised output voltage of 12V DC
- Operates with a power output of 20W and a maximum current of 1.67A
- Made of plastic with an IP67 rating
- Designed for mounting in an electrical box
- Classified as a SELV (safe extra-low voltage) source
- Dimensions 47 × 50 × 25mm (W×D×H), weight 0.18kg
Designed for safe installation
The McLED power supply has an IP67 rating. Operational safety is supported by its SELV classification, meaning the source operates with a safe extra-low voltage. Its compact body is designed specifically for mounting in a standard electrical box. It uses 20cm long cables for connection.
Whole description
Specifications
Type
Type
Stabilised
Construction
LED driver
Usage
Primarily intended for
LED strips/panels
Output characteristic
Type of current
Direct
Minimum voltage
12 V
Maximum voltage
12 V
Maximum current
1,670 mA
Maximum power
20 W
Features
Cable length
20 cm
Dimensions and weight
Width
47 mm
Height
25 mm
Depth
50 mm
Weight
180 g
All parameters
| Code: | COMPaaa0224 |
| Warranty: | 24 months |
| Manufacturer information |
McLED s.r.o., Vídeňská 185, 252 50 Vestec, Czech Republic, +420 220 184 220, [email protected]
|
