JTS E-7R/E-7TH

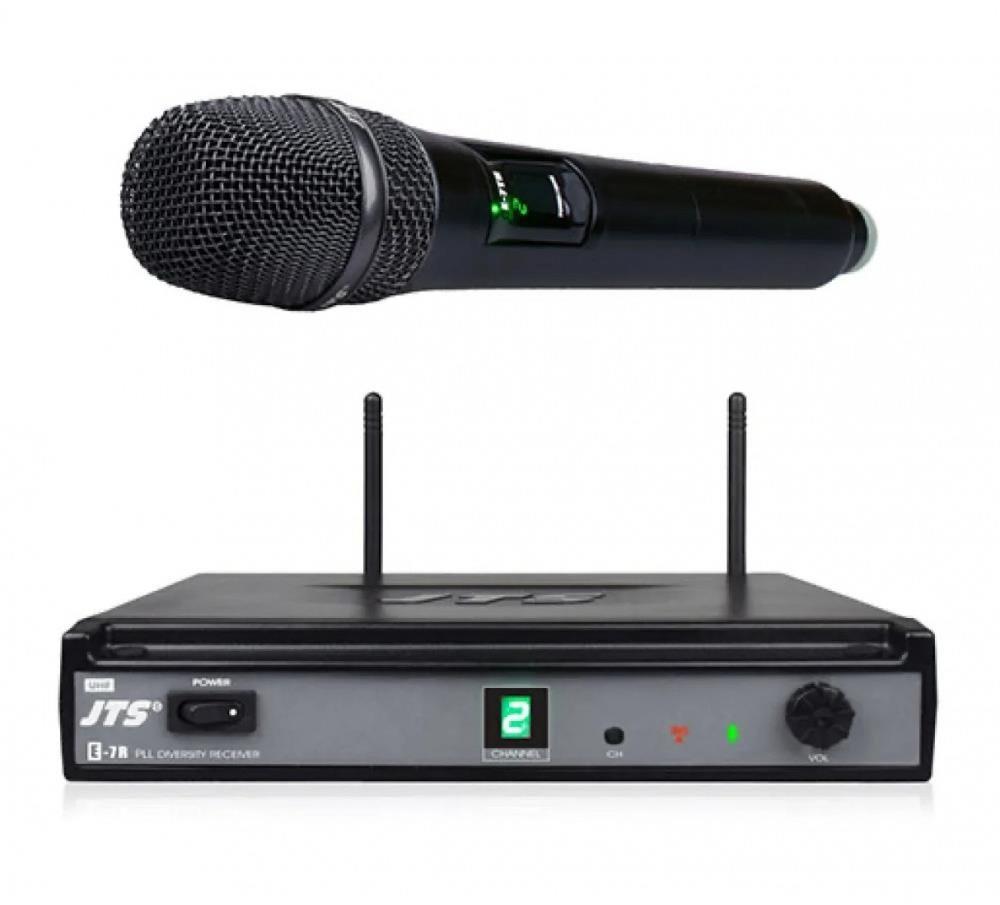

The JTS E-7R/E-7TH is a wireless microphone system consisting of the E-7R receiver and the E-7TH handheld transmitter (microphone). This system provides a reliable, high-quality wireless connection for professional audio applications. The E-7R receiver is equipped with 16 selectable channels, UHF band and PLL synthesis, which ensure stable signal transmission and high sound quality. It combines high sound quality, easy to use and robust construction, making it an ideal choice for a variety of applications including live performance, conferences, theatrical productions and other events, where a reliable wireless sound system is needed.

Key Features of the JTS E-7R/E-7TH Wireless System

The JTS E-7R/E-7TH wireless system will offer you excellent audio performance
Includes a single-channel receiver and a handheld transmitter (microphone)
The E-7R wireless receiver has 16 channels
It is equipped with a 6.3mm jack
The E-7TH condenser microphone has a hypercardioid directional characteristic
Its controls include on, off, channel selection and mute

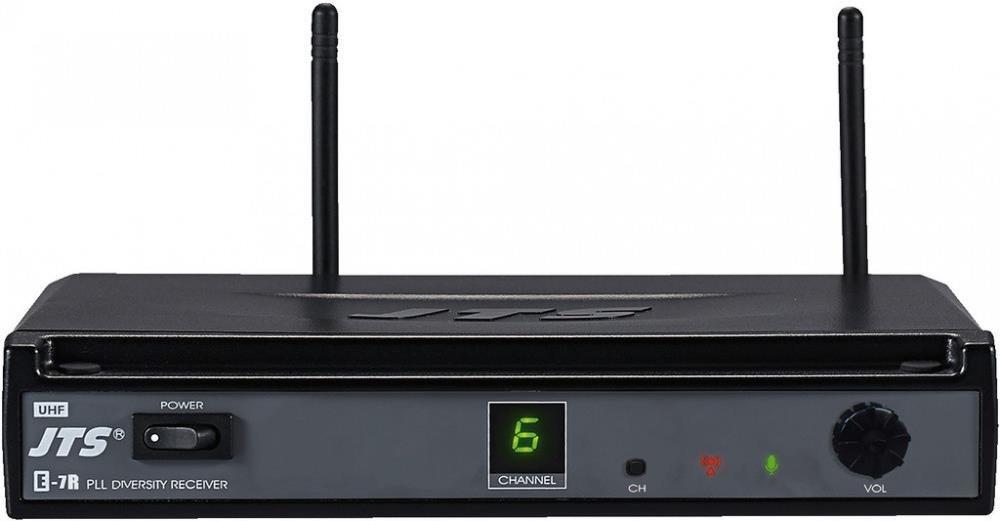

Wireless receiver E-7R

The E-7R receiver is a professional wireless receiver designed for reliable and high quality audio reception in the UHF frequency band with PLL synthesis. With 16 channels and a transmission frequency range from 470 to 960 MHz, this receiver offers flexibility and the ability to select the optimal channel for seamless operation. With a signal-to-noise ratio of more than 100 dB and harmonic distortion of less than 0.6% at 1 kHz, the E-7R delivers clear and faithful audio performance. A 7-segment display shows channel and RF/AF status information, while controls allow easy power adjustment, channel selection and volume adjustment. The audio output level reaches -15 dB, ensuring optimum volume and sound quality. The receiver operates with an operating voltage of 12V and current consumption is 150 mA. The output connector is equipped with one balanced 6.3 mm jack, which allows easy connection to other devices. With dimensions of 210 × 40 × 170 mm (W×H×D), the receiver offers a compact design that integrates easily into your setup.

Handheld transmitter (microphone) E-7TH

The E-7TH condenser microphone has a hypercardioid characteristic and provides precise recording with high sensitivity to sound sources in front of the microphone and minimized ambient noise. With a transmitting power of 10 mW, it provides a reliable wireless connection over longer distances. Frequency response from 50 Hz to 18 kHz ensures a wide range of sounds are captured with high accuracy. When used in a temperature range from 0 to 40 °C, the microphone easily adapts to different environments and conditions. Controls include Power On/Off, Channel Select and Mute functions,allowing quick and easy adjustment of the microphone as required. The microphone is powered by two AA batteries (not included). Weighing 218 g, the microphone is lightweight and easy to carry.

Specifications

Characteristics

Technology Analog

Number of channels 1

Frequency band UHF

Frequency from 823 MHz

Frequency to 832 MHz

Features

Power supply AA

Transmitter type Manual

Features Display, Combined system

Connectors

Receiver connectors Jack 6.3 mm
