Homematic IP Starter Kit - Access Control
Homematic IP Starter Kit - Access Control
Homematic IP Starter Kit - Security and Access Control - HmIP-SK14
An access security starter kit designed for initial smart home integrationHomematic IP with an emphasis on access protection with a wireless smart door lock actuator designed to remotely and conveniently, motor-drivenly unlock, lock and open doors. The smart door control thus serves as a pleasant and contactless alternative to a conventional key.
HmIP-SK14 Homematic IP Starter Kit turns your smartphone into a digital key

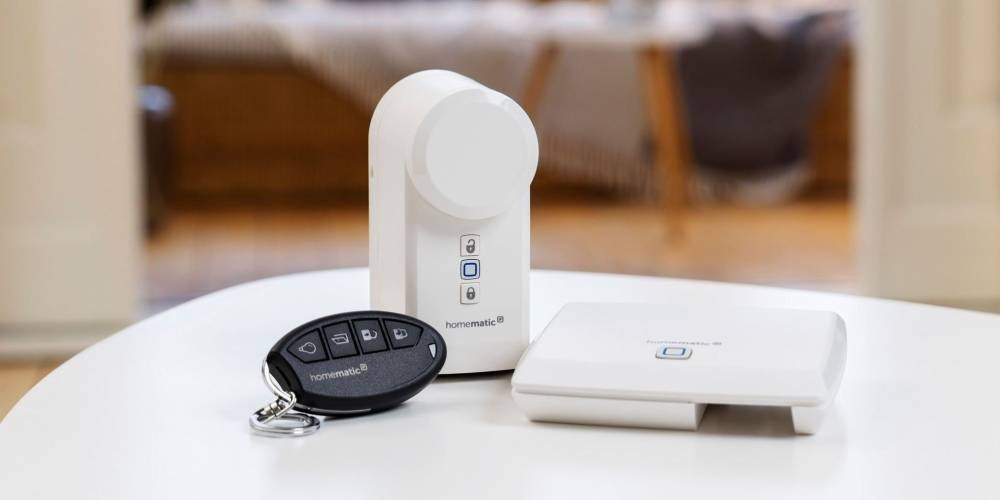

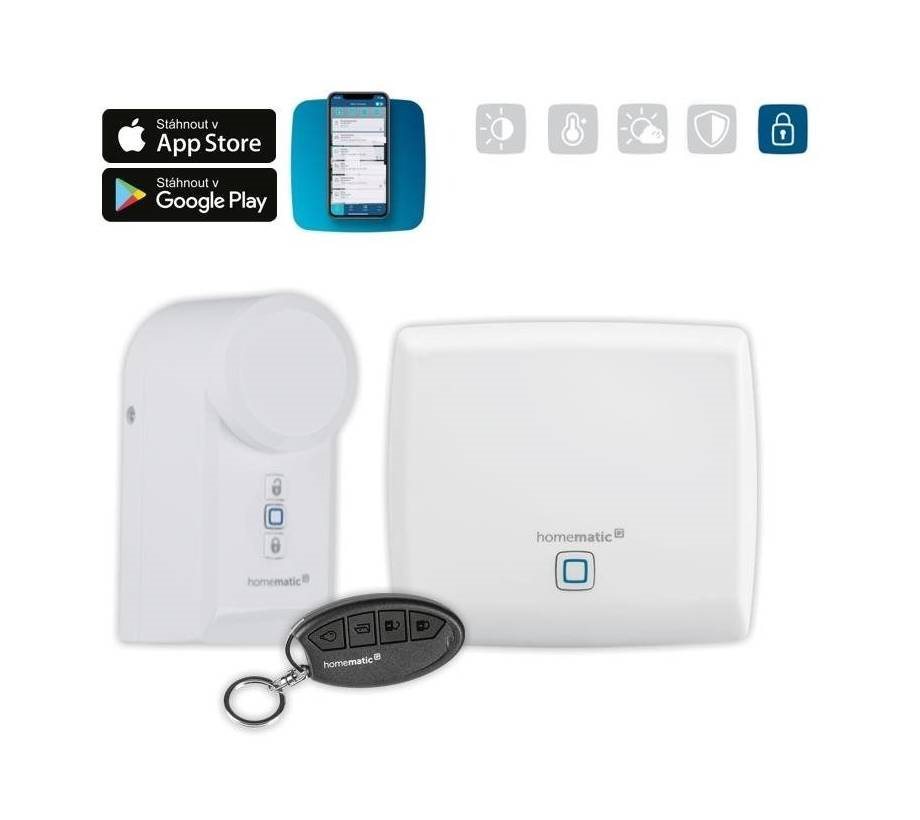

The kit includes the HmIP-HAP central control unit, the HmIP-DLD wireless intelligent door lock operator, the elegant HmIP-KRCK wireless key fob and a free mobile app in CZ localization available for both iOs and Android. The Wireless Intelligent Door Lock Operator was designed for convenient, motor-driven door unlocking, locking and opening. Why open the door with a key when you can open it remotely with a key fob, voice via home assistant or from anywhere using a mobile app. Homematic IP simply turns your door into a smart entry system and your smartphone into a digital key.
- Access security and smart home starter kit in one.
- Control by apps, key, keypad, key fob, device buttons or voice.
- Scenario programming and time-controlled door lock control.
- Modular solution, freely expandable with other components of the smart home system.
- Secure wireless communication with AES-128 encryption.
- Wireless communication and battery operation allows easy installation without wiring.
Unique Solution

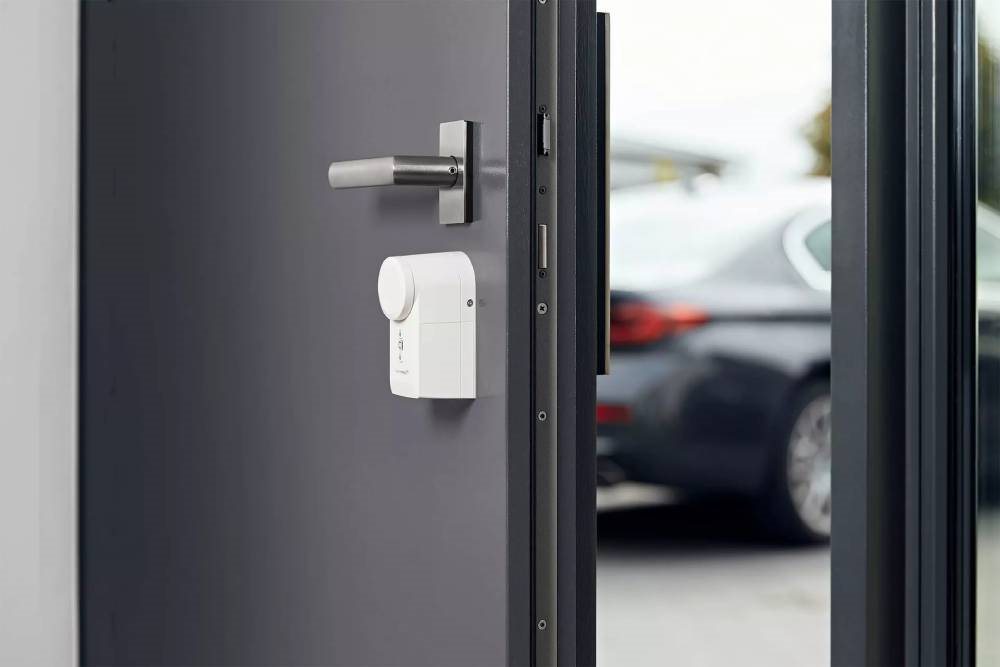

The hi-tech solution for the door lock drive is a unique stepper motor actuator. The operator can thus be easily retrofitted to any standard commercial, domestic or residential door with a cylinder. The key inserted into the door lock insert is rotated by the actuator so that the door lock mechanism moves in exactly the same way as a normal manual key movement. The mechanism of the device is designed for keys ending in both horizontal and vertical working position of the cylinder, including safety.
Variable control method
The device offers multiple control options for all ages from children to seniors. The door lock drive can be easily operated manually from the outside with the key and from the inside with the emergency rotary ring. Electronically via the external HmIP-WKP keypad or internally via two buttons on the front of the door lock operator. Remotely with the HmIP-KRCK wireless key fob or in combination with the HmIP-HAP Central Unit by voice via the home assistant (communication with Google Assistant and Amazon Alexa supported) or from anywhere in the world via the Homematic IP mobile app.
Access Control
In addition to the usual user functions, the device offers optional and intuitive access control. It is configured exclusively using the HmIP-HAP Central Unit and via the Homematic IP mobile app. This opens up additional functionalities of the smart home system to the user with the possibility of programming scenarios, displaying status information, as well as optimising access functions such as time-controlled locking through flexible weekly programmes and individual access profiles. The system can, for example, automatically lock the entrance door at any predefined time, thus increasing the security of the building in a relatively simple and effective way and eliminating the need to check the locking of the entrance door.
Access Control
You can individually define and simultaneously control access to the entrance thanks to configurable access permissions regardless of the day of the week or time. An example of this would be cleaning staff or care services being able to enter an apartment or house using the HmIP-KRCK wireless remote control key fob only on a certain day of the week and at a certain time. You will be able to control such access via the Homematic IP mobile app, which records and displays information about which doors have been opened and when. However, even the configuration of access control functions is done exclusively using the HmIP-HAP Central Unit and the Homematic IP mobile app.
System operation
Wireless connection of Homematic IP devices to the HmIP-HAP Central Unit offers convenient setup and control of a complex smart home system using an intuitive app (for Android and iOS in CZ) designed for smartphones. The mobile app enables instant response to messages and alerts from your smart home system and connects all Homematic IP devices via a free, unlimited cloud that allows you to set up and control the system from anywhere in the world, transfer important information and update the software and firmware of the devices, and forward configuration and operational commands from the Homematic IP app to individual smart home devices.
Wide range of applications
The battery components of the Homematic IP system, including the wireless door lock actuator, are ideal for all-round protection in homes, offices, apartments, cottages, etc. During installation and when creating profiles and scenarios in the mobile app, you can take into account all your needs in terms of building security requirements, automation, heating and a range of other criteria depending on your priorities. In a simple way, you can gradually expand, control and automate your smart home system.
Homematic IP is controlled by an application with a Czech interface
In Homematic IP you have everything at your fingertips! It has Czech localization, is free, intuitive and clear. With the smartphone app, you can handle even seemingly complex configurations in just a few minutes. Once connected to the central unit, it becomes the smart hub of your installation, allowing you to control and configure the management of your entire smart home, whether you're at home, at work or on the move. The free mobile app requires no registration and is designed for Android and iOS smart devices. It is there to constantly adapt to modern trends, optimise and evolve according to your wishes and needs.
Voice control
In addition to manual control and remote control via the mobile app, the Homematic IP smart home system with PIR motion detectors also offers voice control and communication with Google Assistant, Amazon Alexa and Home Connect Plus technology. For secure, stable and reliable communication between devices, the system has its own unique radio technology with encrypted security, making it the first smart home system whose protocol, IT and data security are regularly tested and certified by the independent VDE institute.
Easy installation in just a few moments
The wireless communication and battery operation of the door lock actuator offers the possibility of easy installation without the need for wiring. An important factor for installation is the size of the cylinder, which must protrude 8-15 mm on the inside of the door. If this is not the case, it is recommended to purchase a new cylinder with an optimum preload of 10 mm at the same time as the device. Standard assembly is carried out using the assembly material that is included in the package, without any mechanical intervention in the door. The design of the drive mounting bracket also offers additional holes for optional bolt attachment to the internal hardware or door leaf.
Key Features of Starter Kit - Security and Access Control - HmIP-SK14
- Smart home and intelligent wireless security system in one
- Enables reliable security of access, entry or doors of various buildings and objects
- Very easy to install and operate
- Remote door unlocking, locking and opening
- The set includes three basic devices for security and access control
- Extendable to other Homematic IP products for security, automation and heating control
- Smart Homematic IP app for easy configuration and system overview from the comfort of your smartphone
- High security thanks to comprehensive AES encryption and server location in Germany
- Protected Homematic IP communication protocol (signal transmission up to 400 m)
- Voice control support (Amazon Alexa, Google Assistant)
- Home Connect Plus support
- Operation requires connection to the HmIP-HAP central unit
- No personal data is collected during operation
- Package contents: 1× Central unit HmIP-HAP, 1× HmIP-DLD door lock drive, 1× Wireless keyring HmIP-KRCK, accessories, mounting material, Czech instructions
