SEZ-CZ Adapter 400 V, IP 44, 16 A from 5-pole to 4-pole

The SEZ A 1653/43 industrial connecting adapter (reducer) is a 400V rated voltage adapter for switching from a 4-pin to a 5-pin circuit with a 16A current and IP44 rating.

Technical specification of the SEZ-CZ 400V, IP44, 16A, 5-pin to 4-pin adapter

Adapter (reducer): 400V, IP44, 16A from 5-pin to 4-pin SEZ DK A-1653/43
Standard(s): EN 60309-1, 60309-2
CD name: 10006545.00
Material: ABS
Colour: red and grey UV stable
Ambient temperature: from -25 to +40°C
Number of pins: 5/4
Conductor cross-section: 1.5–4mm²
Rated voltage: 400V
Rated current: 16A
IP rating: IP44

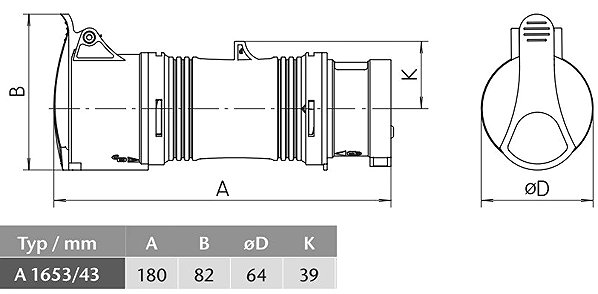

Dimensions: 82×64×180mm
Weight: 0.311kg
