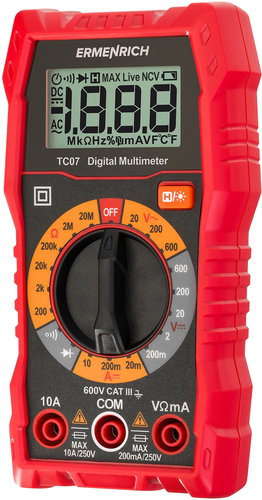

ERMENRICH Digital Multimeter Zing TC07

The Ermenrich Zing TC07 digital multimeter with classic rotary switch is designed to measure DC and AC voltage, DC current and resistance. as well as to make basic measurements in the work of a professional electrician. The multimeter uses the True RMS method for calculations, which means that it is able to calculate the rms value of both sine and non-sine signals. In this case, the AC voltage measurement is more accurate and precise. There is a continuity test that checks the continuity of the conductor between the two test points of the circuit. Another mode is available for detecting diodes in broken or disconnected circuits. The hold function is useful in cases where it is not possible to reach the instrument and read the display immediately after taking a measurement. After pressing the button, the value remains on the display and can be checked later.

ERMENRICH Digital Multimeter Zing TC07

Key Features of the Ermenrich Zing TC07 Digital Multimeter

  • Manual selection of operating modes
  • Setting measurement limits
  • Functions of voltmeter, ammeter (DC only) and ohmmeter
  • True RMS method to ensure high accuracy of measured quantities
  • Continuity test, diode test, hold function to display the measured value
  • Powered by standard batteries (2 × AAA)
ERMENRICH Digital Multimeter Zing TC07

Equipment for precise measurements

The Ermenrich Zing TC07 multimeter uses advanced True RMS technology, which allows the device to accurately measure non-sinusoidal signals. You will have a continuity function for conductivity checking as well as a diode testing function. When the measurement is complete, the readings remain on the display, which you will appreciate when measuring in hard-to-reach areas.

ERMENRICH Digital Multimeter Zing TC07

Digital multimeter with economical operation

To use the device, you can use the standard batteries (2 × AAA) included in the package. The overall usage time is extended by the automatic shutdown function after a short period of inactivity. This makes the Ermenrich multimeter a practical, reliable and energy-saving tool for everyday use.

Package contents:
Ermenrich digital multimeter, probes, user manual and warranty card

Specifications

Type

Type Digital

Features

Features Automatic shutdown, Battery indication, True RMS
Measurement category CAT III

Measurement function

Measurement function AC voltage, DC voltage, DC current, Resistance, Diode, Continuity (buzzer)

Direct voltage (DC)

Min. DC voltage 200 mV
Max. DC voltage 600 V
Accuracy ± 1 %

Alternating voltage (AC)

Min. AC voltage 2,000 mV
Max. AC voltage 600 V
Accuracy ± 1 %

Direct current (DC)

Min. DC current 20,000 µA
Max. DC current 10 A
Accuracy ± 1.5 %

Electrical resistance

Min. resistance 200 ?
Max. resistance 20 M?
Accuracy ± 1.2 %

Packaging

Included Battery
