GIGABYTE B760M D3HP WIFI6
Don't like the alternatives?
Choose from the full offer
GIGABYTE B760M D3HP WIFI6

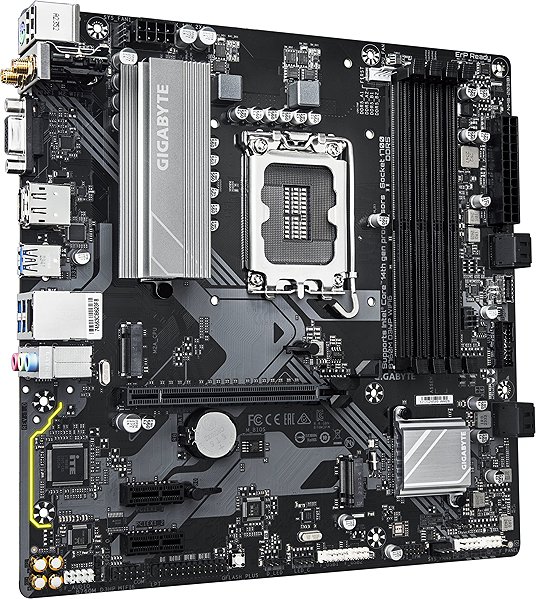

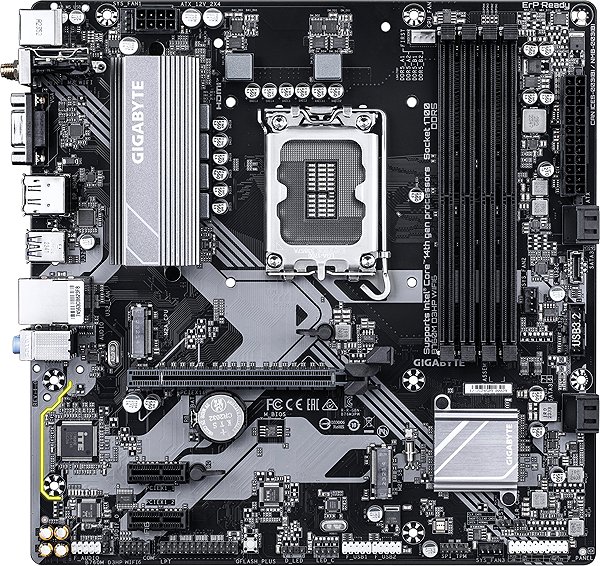

This GIGABYTE motherboard is built using the Intel B760 chipset, and it uses the Intel 1700 socket to accommodate the CPU. Classically, it is also equipped with a sound card which will handle 8,0 channels. You may use a network connection module with the very practical Wi-Fi support. It combines compact dimensions with an adequate number of adaptors for a complete home computer setup. If you want to use this model, you'll require a compatible mATX (Micro ATX) format computer case.
GIGABYTE B760M D3HP WIFI6 Motherboard Key Features
- Intel 1700 socket and the Intel B760 chipset
- GIGABYTE B760M D3HP WIFI6 size: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can hold 4 × dual-channel memory modules
GIGABYTE B760M D3HP WIFI6 Motherboard Connectivity
RAM is absolutely essential, so this GIGABYTE motherboard is equipped with 4 RAM slots. You can use DDR5 type DIMM memory . You can hook them up in dual-channel mode. It supports models with a clock speed of up to 5600 MHz.
GIGABYTE B760M D3HP WIFI6 Connectors
The motherboard is made for graphics cards with a PCI Express 16x slot. The internal interface also has a total of 2 popular M.2 connectors.

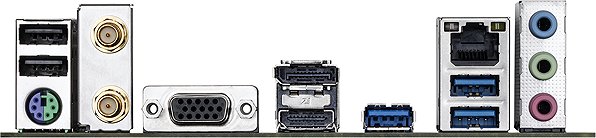

- External communication interfaces: Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, VGA (D-Sub), HDMI 2.1 and DisplayPort 1.2
- Internal interfaces: COM header, LPT header, RGB LED Header, S/PDIF header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 1 bracket, USB 2.0 bracket, PCIe 4.0 x16, Serial ATA III and M.2 PCIe 4.0
- Maximum supported RAM clock speed: 5600 MHz
- Serial ATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
| Code: | AGb760md1 |
| Links: | Producer's Website: |
| Manufacturer information |
SIL Servis Partner a.s., Těšínská 1970/56, 710 00 Slezská Ostrava, Czech Republic, +420 552 301 141, [email protected] Gigabyte, founded in 1986, is an irreplaceable player in the field of computer components. They put great emphasis on key technologies and the strictest quality standards. The company produces a wide range of basic computer components such as motherboards and graphics cards, but also have many computer peripherals, laptops, tablets, desktops and even network solutions and servers on offer. Recently they also introduced a line of Gigabyte mobile phones.
|
