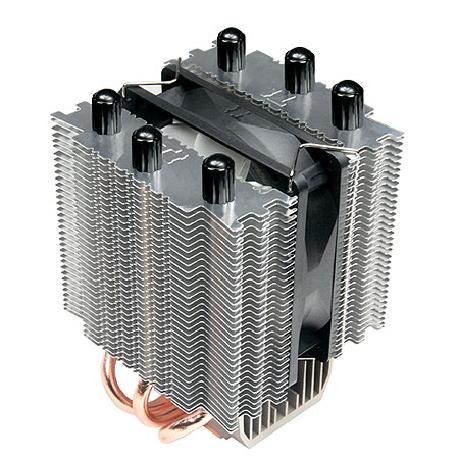

Thermaltake ISGC 200

Executive of the new Thermaltake cooler series ISGC (Inspiration of Silent Cooling Gaming) is designed for AMD Socket socket AM2/AM2 +/AM3 and Intel in LGA775 package.Heat from the well-polished copper base away 3 heatpipe diameter of 6 mm in two blocks of aluminum ribs.Innovated 92 mm fan Thermaltake blocks located between the ribs is very quiet (max.17 dBA) with specially shaped blades ISGC and hydrodynamic bearings.The fan is connected to the motherboard via 4-pin connector (12 V), which allows boards to support the basic functions of PWM controlled speed ranging from 600 to 1600 rpm./ min.Addition to silent fan operation also features high reliability and service life to 50000 hours.Thoughtful design ensures the appropriate flow of cooling air and exhaust of warm air directly to odsávacímu rear fan in the closet.
Parameters and specifications:
Supported sockets: AM2 Socket AM2 + Socket AM3 Socket LGA775
Supported Processors:
Intel ® Core 2 Extreme (Socket LGA775)
Intel ® Core 2 Quad (Socket LGA775)
Intel ® Core 2 Duo (Socket LGA775)
Intel ® Pentium D (Socket LGA775)
Intel ® Pentium (Socket LGA775)
Intel ® Pentium 4 (Socket LGA 775)
Intel ® Celeron D (Socket LGA775)
Intel ® Celeron (Socket LGA775)
AMD ® Phenom (Socket AM2 +)
AMD ® Athlon 64 FX (Socket AM2)
AMD ® Athlon 64 X2 (Socket AM2)
AMD ® Athlon 64 (Socket AM2
AMD ® Sempron (Socket AM2)
Cooler Material:
Aluminum fins
Copper Base
Heatpipe:
3 x O 6 mm
Fan:
Dimensions:92 x 92 x 25 mm
Speed:600 to 1600 rpm./ min.(PWM control)
Bearing:Hydrodynamic
Noisemax17 dBA
Airflow:max37 CFM
Barometer:max1.22 mm H2O
Lifetime (MTBF):50,000 hours
Power:
Connector:4 Pin (PWM)
Rated voltage:12V
Rated current:0.08
Power:0.96 W
Dimensions:
90 x 97 x 140.5 mm
Weight:
