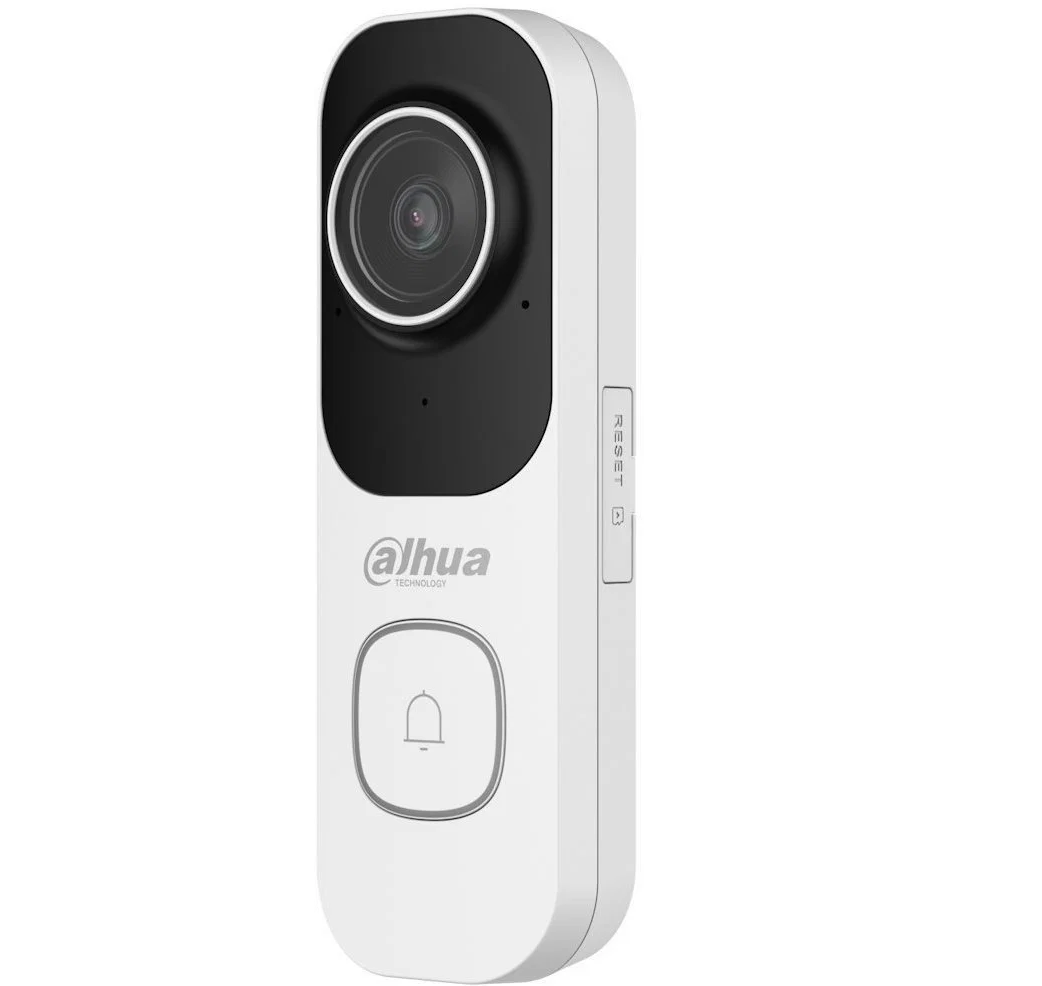

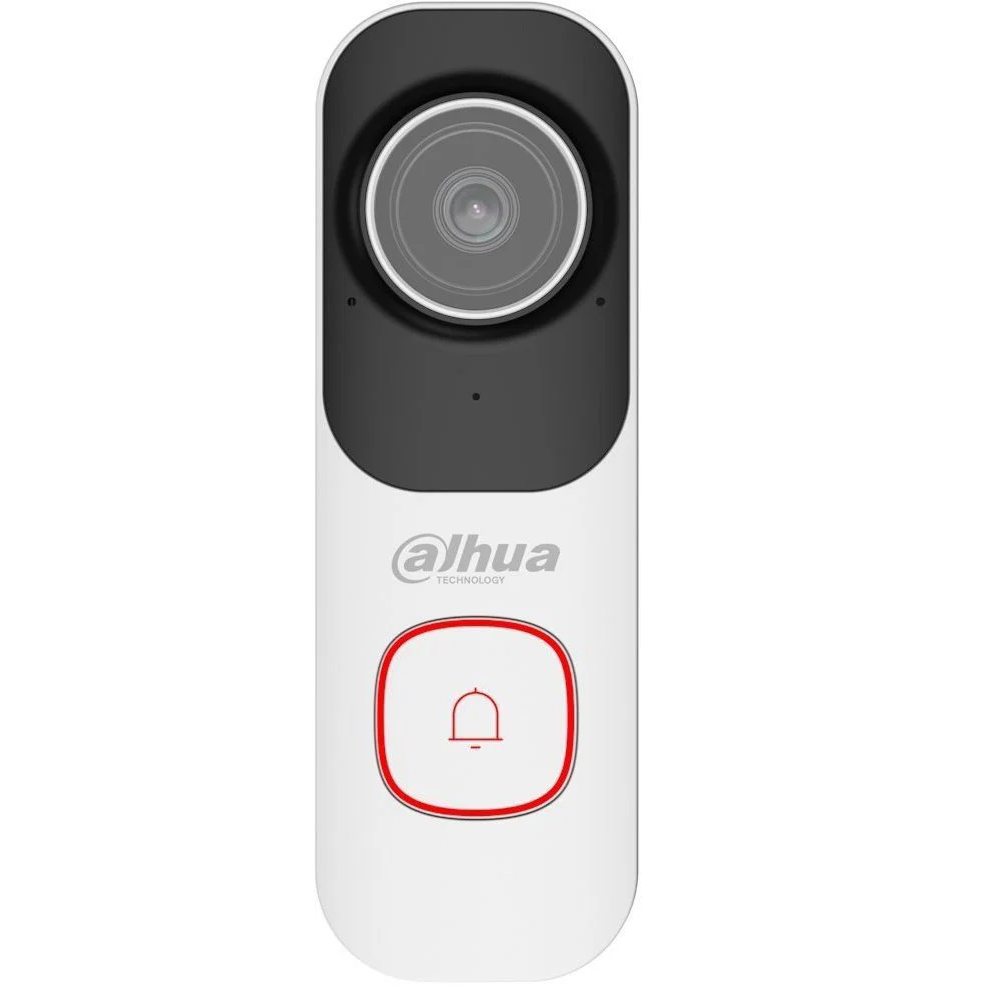

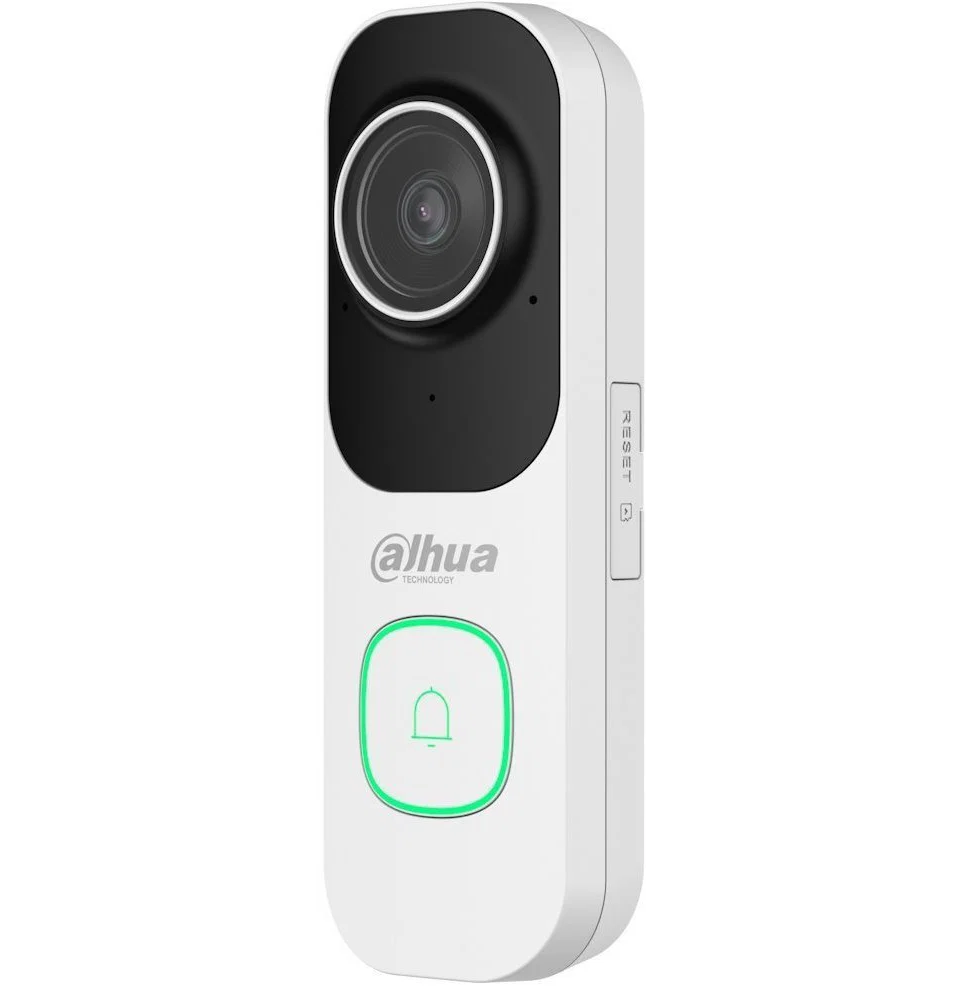

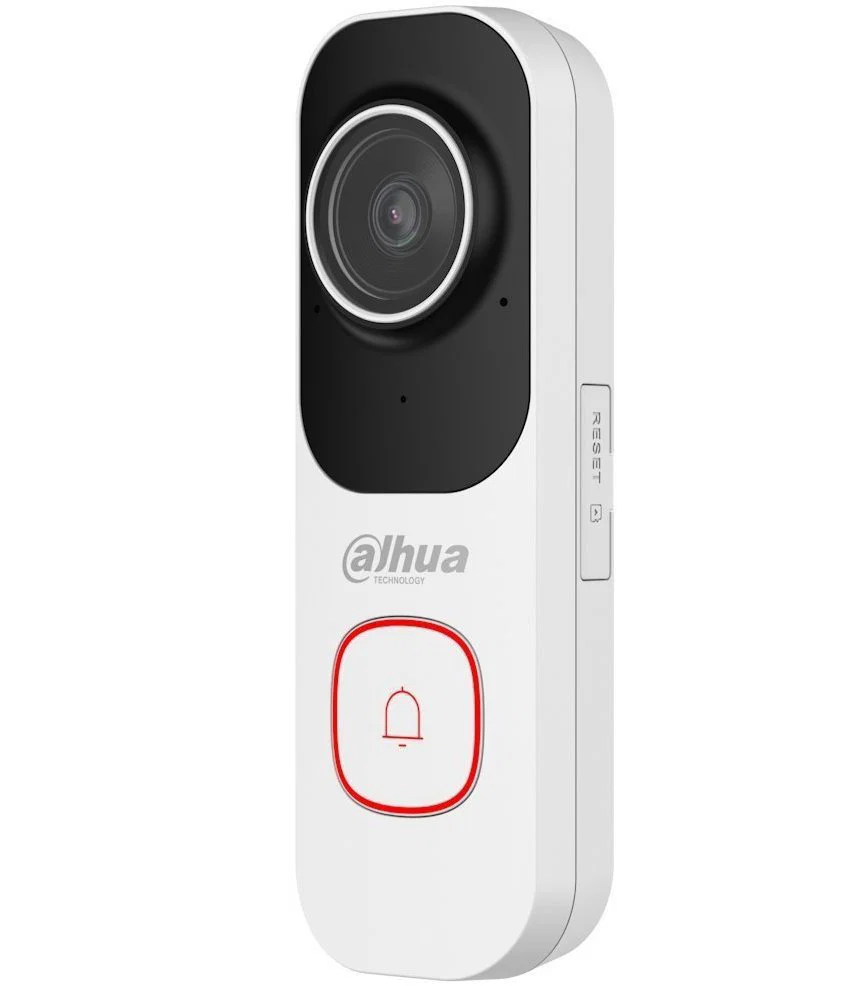

The Dahua DB41AW video doorbell remotely secures the entrance to your property and instantly identifies approaching visitors. The integrated camera with a resolution of 2560 × 1440px streams a detailed image directly to your mobile phone running Android or iOS. This gives you a constant overview of what is happening outside your door, and the device works reliably in all weather thanks to its IP65-rated construction. The video doorbell supports Wi-Fi 6 wireless connectivity and quick pairing via Bluetooth.
Key features of the Dahua DB41AW video doorbell
- Camera captures images at 2560 × 1440px resolution
- screen size viewing angle of 143°
- Infrared night vision with a range of up to 10m
- Integrated AI detects people and vehicles
- Wireless connection uses the Wi-Fi 6 standard
- IP65-rated construction resists rain and dust
- Slot for a microSD card up to 256GB
- Built-in microphone and speaker for voice communication
Compatible with the manufacturer's app
To use the product's smart features, you need to add the device to the manufacturer's application. You can find more information about the application (name, supported OS, supported languages) and how to add the device to the application in the product manual.
High resolution and wide viewing angle
The 1/3" CMOS sensor captures video at a high resolution of 4Mpx, which is 2560 × 1440 pixels. The fixed lens with a focal length of 2.3mm and an F2.2 aperture provides a horizontal viewing angle of 120° and a vertical angle of 66°. The screen size view reaches up to 143°, minimising blind spots around your front door.
Smart features
Integrated artificial intelligence analyses the scene and distinguishes between the movement of people and vehicles. The system significantly reduces the number of false alarms caused by things like falling leaves or animals. The Dahua DB41AW video doorbell also detects abnormal sounds in the vicinity and immediately sends a notification to the user if they are detected.
Two-way communication and night mode
A built-in microphone and speaker let you have a direct voice conversation with approaching people remotely. Night vision with a range of up to 10m is provided by two infrared LEDs, which activate automatically when the ambient light level drops. The security video doorbell uses H.265 video encoding to save space on the memory card while maintaining high image quality.
Stable Wi-Fi 6 wireless connection
The device supports the modern wireless standard in the 2.4GHz band, known as Wi-Fi 6. The technology ensures more stable data transmission and lower latency, even in places with higher signal interference. The Bluetooth interface simplifies the initial setup, speeding up the pairing of the doorbell with the compatible DMSS mobile app.
Flexible power and local storage
The built-in microSD memory card slot with a maximum supported capacity of 256GB is used to store recordings. The installation does not require paying regular fees for cloud services. You can power the device using a standard USB interface with 5V DC or by connecting to a terminal block with 10–24V DC or 14–24V AC.
Durable design for demanding conditions
The solid plastic construction meets the IP65 protection rating, which means complete resistance to dust and jetting water. The device operates reliably in a temperature range from –20 to +55°C, so it can withstand severe winter frosts or summer heat. The compact body measures 135 × 45 × 24.2mm with a total weight of just 110g.
Package contents:
DB41AW doorbell, mounting kit
Resolution:
2560 × 1440px
IP rating:
IP65
Supported OS:
Android, iOS
Maximum SD card capacity:
256GB
Connection:
Bluetooth, WiFi 2.4GHz
Night vision:
Yes
Night vision distance:
10m
Input voltage:
5V
Weight:
110g
