Cooler Master MasterBox MB511 Mesh White Trim

PC Case Cooler Master MasterBox MB511 Mesh White Trim Lateral view

This Cooler Master MasterBox MB511 Mesh White Trim Midi Tower PC case delivers an appealing design highlighted by a striking black colour tone. The paint is applied on a steel construction. The Midi Tower PC case is ideal for high-performance gaming PCs as well as standard home computers that can be placed under your desk where a Big Tower may not fit. Although it's a slightly scaled-down PC case, it can accommodate a solid number of professional or gaming hardware components. Demanding users will also be impressed by the option to improve dissipation of heat using large coolers and fans that will comfortably slot inside. The desktop control panel, which serves to control and connect various peripherals, is located on the top of the case. You have the option to add a ATX, mATX (Micro ATX) and mITX (Mini ITX) type motherboard into the Cooler Master MasterBox MB511 Mesh White Trim PC case. The front of the case is perforated, ensuring better air circulation

Cooler Master MasterBox MB511 Mesh White Trim PC Case Key Features

  • Midi Tower PC case perfect for professional desktop PCs
  • Allows you to mount modern components alongside high-quality cooling
  • Black steel sophisticated body complete with a transparent side panel
  • Cooler Master MasterBox MB511 Mesh White Trim has 6 fan slots
  • PC case with a perforated front
  • Front panel location: top

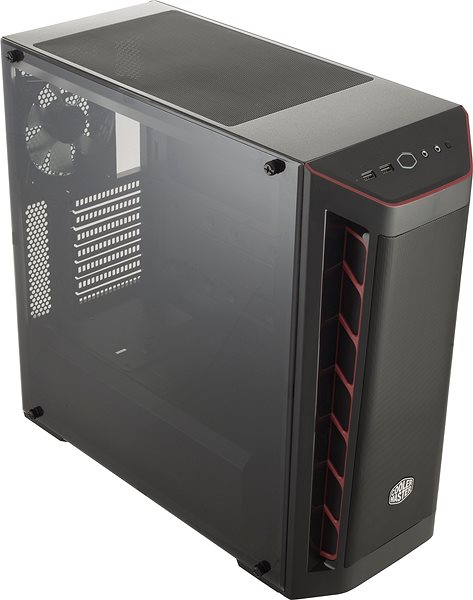

PC Case Cooler Master MasterBox MB511 Mesh White Trim Screen

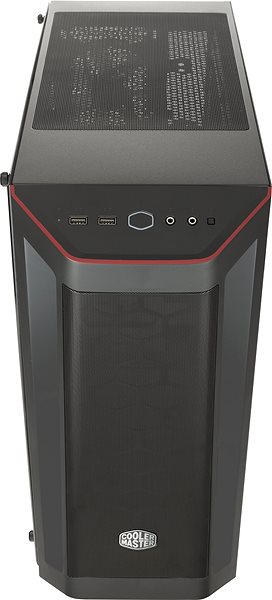

PC Case Cooler Master MasterBox MB511 Mesh White Trim Connectivity (ports)

Cooler Master MasterBox MB511 Mesh White Trim PC Case Hardware

6 x 2.5" solid state disk slots. Any remaining parts should be mounted onto the motherboard. There are connectors on the control panel that allow you to connect USB 3.2 Gen 1, headphones and microphone. The power source of the Cooler Master PC case is installed at the bottom, which means that it is not affected by higher temperatures, which mainly occur in the upper part of the case. The dust filters are designed to prevent dust from entering the PC case.

Specifications

Usage and size

Size Midi Tower

Internal structure

Motherboard form factor ATX, mATX (Micro ATX), mITX (Mini ITX)
Number of internal 2.5" slots 6×
Number of internal 2.5"/3.5" slots 2 ×
Max. processor heat sink height 165 mm
Max. graphics card length 410 mm

External structure

Front panel connectors USB 3.2 Gen 1, 3.5mm jack (headphones), 3.5mm jack (microphone)
Sidewalls Transparent
Side panel material Plastic
Additional equipment Perforated front

PSU

Power supply Without power supply
Supported PSU format ATX

Cooling system

Front fan size 2x140mm, 3x120mm
Rear fan size 1x120mm
Top fan size 2x120mm, 2x140mm
Number of fan positions 6×
Number of mounted ventilators 1×120mm
Supported radiator size on top 120mm, 240mm
Supported radiator size from the front 120mm, 140mm, 240mm, 280mm, 360mm

Backlight

Backlight colour No backlighting

Material

Wardrobe material Steel

Dimensions

Width 217 mm (21.7 cm)
Height 468 mm (46.8 cm)
Depth 496 mm (49.6 cm)
Code:  CCmbmb511mwt
Links: Producer's Website:
