Cooler Master MasterBox E500 ODD

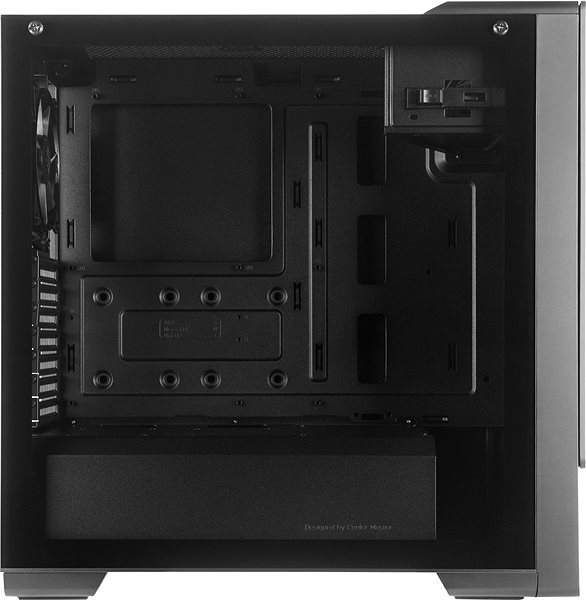

PC Case Cooler Master MasterBox E500 ODD Lateral view

This Cooler Master MasterBox E500 ODD Midi Tower PC case delivers a stylish construction dominated by a striking black colour tone. The paint is applied on a steel construction. The Midi Tower PC case is designed for professional and multimedia computers and yet it's small enough to fit under you desk. Although it's a smaller PC case, it can easily fit a solid array of professional or gaming components. The more demanding users will also appreciate the option to boost heat dissipation via medium or large coolers and fans, for which there is ample space inside the case. The main computer control panel, which provides the ability to control and connect various peripherals, is located on the top of the case. You can install a ATX, mATX (Micro ATX) and mITX (Mini ITX) type motherboard into the Cooler Master MasterBox E500 ODD PC case.

Cooler Master MasterBox E500 ODD Computer Case Key Features

  • Midi Tower PC case perfect for professional desktop PCs
  • Allows you to mount modern components in addition to efficient cooling
  • Black steel high-precision body includes a clear side panel
  • Cooler Master MasterBox E500 ODD has 6 ventilator slots
  • Front panel location: top

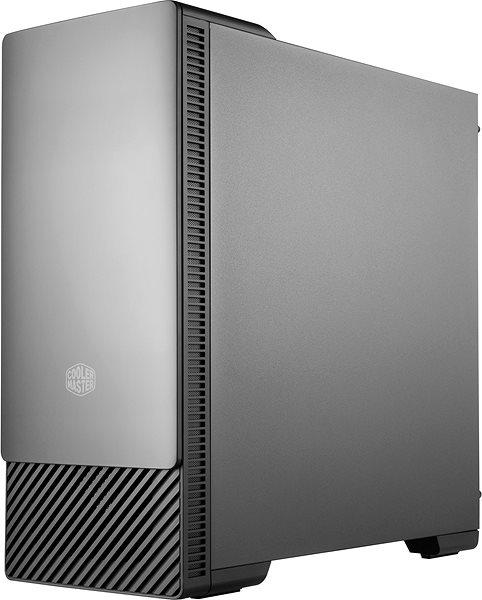

PC Case Cooler Master MasterBox E500 ODD Screen

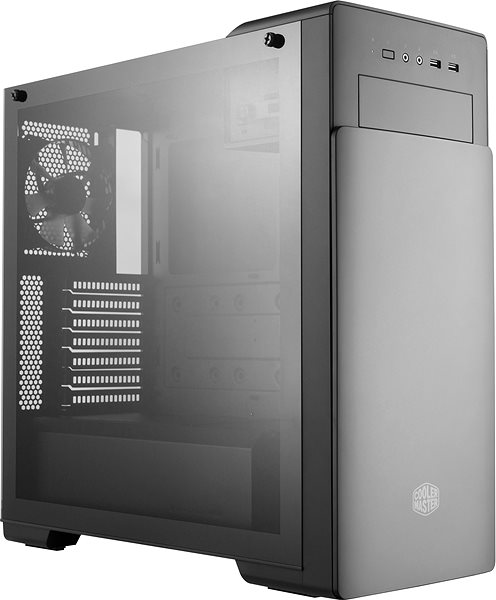

PC Case Cooler Master MasterBox E500 ODD Connectivity (ports)

Cooler Master MasterBox E500 ODD PC Case Hardware

The PC case features 2 x internal 3.5" hard drive slots and 6 x 2.5" solid state disk slots. On the outside, it has one slot available for your BluRay drive. All the remaining critical parts must be installed onto the motherboard. There are adaptors on the control panel that allow you to connect USB 3.2 Gen 1, headphones and microphone. The power supply of the Cooler Master PC case stays at the bottom, so it primarily takes care of the power and is not affected by higher temperatures. The dust filters prevent dust and small unwanted particles from entering the case.

Specifications

Usage and size

Size Midi Tower

Internal structure

Motherboard form factor ATX, mATX (Micro ATX), mITX (Mini ITX)
Number of internal 2.5" slots 6×
Max. processor heat sink height 165 mm
Max. graphics card length 410 mm

External structure

Front panel connectors USB 3.2 Gen 1, 3.5mm jack (headphones), 3.5mm jack (microphone)
Sidewalls Transparent
Side panel material Tempered glass

PSU

Power supply Without power supply
Supported PSU format ATX

Cooling system

Front fan size 2x140mm, 3x120mm
Rear fan size 1x120mm
Top fan size 2x120mm, 2x140mm
Number of fan positions 6×
Number of mounted ventilators 1×120mm
Supported radiator size on top 120mm, 240mm
Supported radiator size from the front 120mm, 140mm, 240mm, 280mm, 360mm

Backlight

Backlight colour No backlighting

Material

Wardrobe material Steel

Dimensions

Width 218 mm (21.8 cm)
Height 485 mm (48.5 cm)
Depth 482 mm (48.2 cm)
Code:  CCmbe500o
