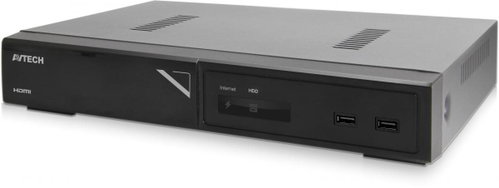

AVTECH AVH1109 - NVR device, 9 channels

Product accessories
AVTECH AVH1109 - NVR device, 9 channels
AVTECH AVH1109 is a nine-channel NVR recording device for AVTECH IP camera systems.
Key Features AVTECH AVH1109 - NVR device, 9 channels
- H.265 compression technology: Recording capacity is greatly improved, as is bandwidth savings for better efficiency and performance than systems using other compression formats.
- Free EaZy P2P Cloud Networks: Cloud EaZy Networking is available to automatically connect this device to the internet in three steps using our free EagleEyes mobile app. The "Buddy" feature is used to share access permissions to the device with other people. Device login/logout notification.
- Customizing the scenario: Allows you to customize a series of actions that will be triggered automatically when a specified event occurs. There are several scenario templates from which you can choose when and what to do after an event occurs.
- Push Video & Push Status - Notification of active events with EagleEyes:Push Video to send instant notifications of an alarm event when an alarm device is connected to the camera that supports connection of an external alarm device. Press the Status button to send instant notifications of system events, such as video loss or removal of data on your hard drive.
- One Ethernet cable solution (POE, Power-over-Ethernet):Power the camera and transmit video over a single Ethernet cable to eliminate the need for power adapters for your cameras throughout the entire HD monitoring system setup.
- Event context window/preview: All events are listed in the right panel with corresponding event icons to quickly identify the type of event. The most up-to-date flashes to catch your attention. Click on one event and you can view the prealarm image footage.
- Spot Monitor:In addition to the main monitor, you can assign live preview, call monitoring or event monitoring to a secondary monitor via the HDMI output.
Whole description
Specifications
Dimensions and weight
Width
26 cm
Height
4.8 cm
Depth
23.57 cm
Weight
1.5 kg
Storage
Maximum capacity
14 TB
Number of drive bays (2.5" and 3.5")
1 ×
Type
Type
NVR
Camera charging
Number of PoE ports
8
Camera features
Number of cameras
8
Video compression
H.265
Display resolution
3840 × 2160 px
Max. data flow on video output
160 Mb/s
Features
Video output
HDMI, VGA
All parameters
