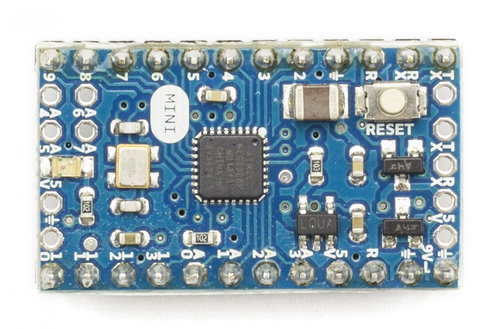

Arduino Mini (with connectors)

The Arduino building kit is a physical open-source platform based on a simple microcontroller board and software development environments. With Arduino, you can make interactive objects, get input from different sensors, or control other devices such as lights or engines. Projects built using the Arduino kit may be separate or connected to your computer. The Arduino programming language uses Wiring, a physical computer platform based on the multimedia programming environment Processing.

Key Features of the Arduino Mini Electronic Building Kit (with connectors)

• 14 digital pins
• 16MHz crystal oscillator
• Programmable with a USB Serial Adapter or other adapters
• It includes a reset button & connectors

Parameters and Specifications:

Microprocessor:
ATmega328

Operating voltage:
5V

Input voltage:
7-9V

Digital I/O Pins:
14 (6 of which provide PWM output)

Analogue input:
8 pins (4 of which are split to pins outside)

DC current for each I/O Pin:
40mA

Flash memory:
32KB (2KB of which use a bootloader)

SRAM:
2KB

EEPROM:
1KB

Processor clock:
16MHz

Length:
30mm

Width:
18mm
